Partiron

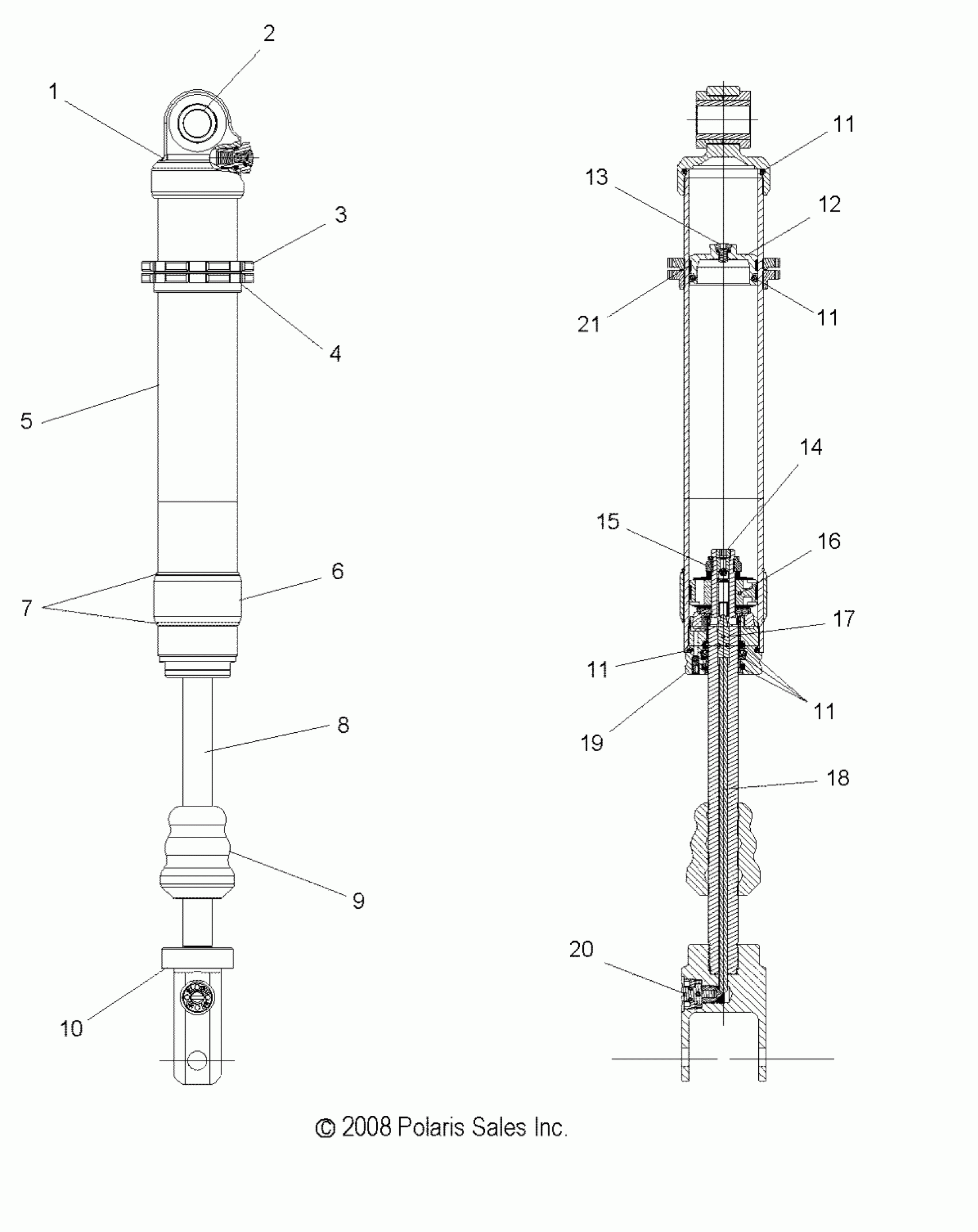

Polaris OUTLAW 525 IRS - A11GP52AA SUSPENSION, REAR SHOCK - A11GP52AA (49ATVSHOCKRR7043453) Diagram

#

Description
Price

-

Shock, Rear [Incl. All]

7043453

$488.49

1

Asm., Body Cap

1500602

$226.65

2

SLEEVE

1500497

$32.37

2

BUSHING

1500103

$8.08

3

Ring, Preload

1500792

$21.83

4

Ring, Preload

1500791

$21.83

5

Body

1500755

$157.13

6

Guide, Spring

1500585

Unavailable

7

Ring, Retaining

1500573

Unavailable

8

Shaft

1500812

$164.99

9

Bumper

1500628

$35.99

10

Eyelet

1500811

$128.99

11

Kit, Rebuild

1500742

Unavailable

11

Kit, Rebuild

1500742

Unavailable

11

Kit, Rebuild

1500742

Unavailable

11

Kit, Rebuild

1500742

Unavailable

12

Asm., Floating Piston

1500275

$92.99

13

SCREW W/O-RING

1500161

Unavailable

14

Jet

1500813

$45.39

15

Nut, Lock

1500472

$23.99

16

Bearing

1500002

$31.99

16

Piston w/Bleed

1500809

$45.39

17

Needle

1500814

$45.39

18

Rod, Metering

1500815

$20.59

19

Asm., Bearing

1500810

$144.99

20

Screw, Adjust

1500816

$39.99

21

Bearing

1500006

$19.99
