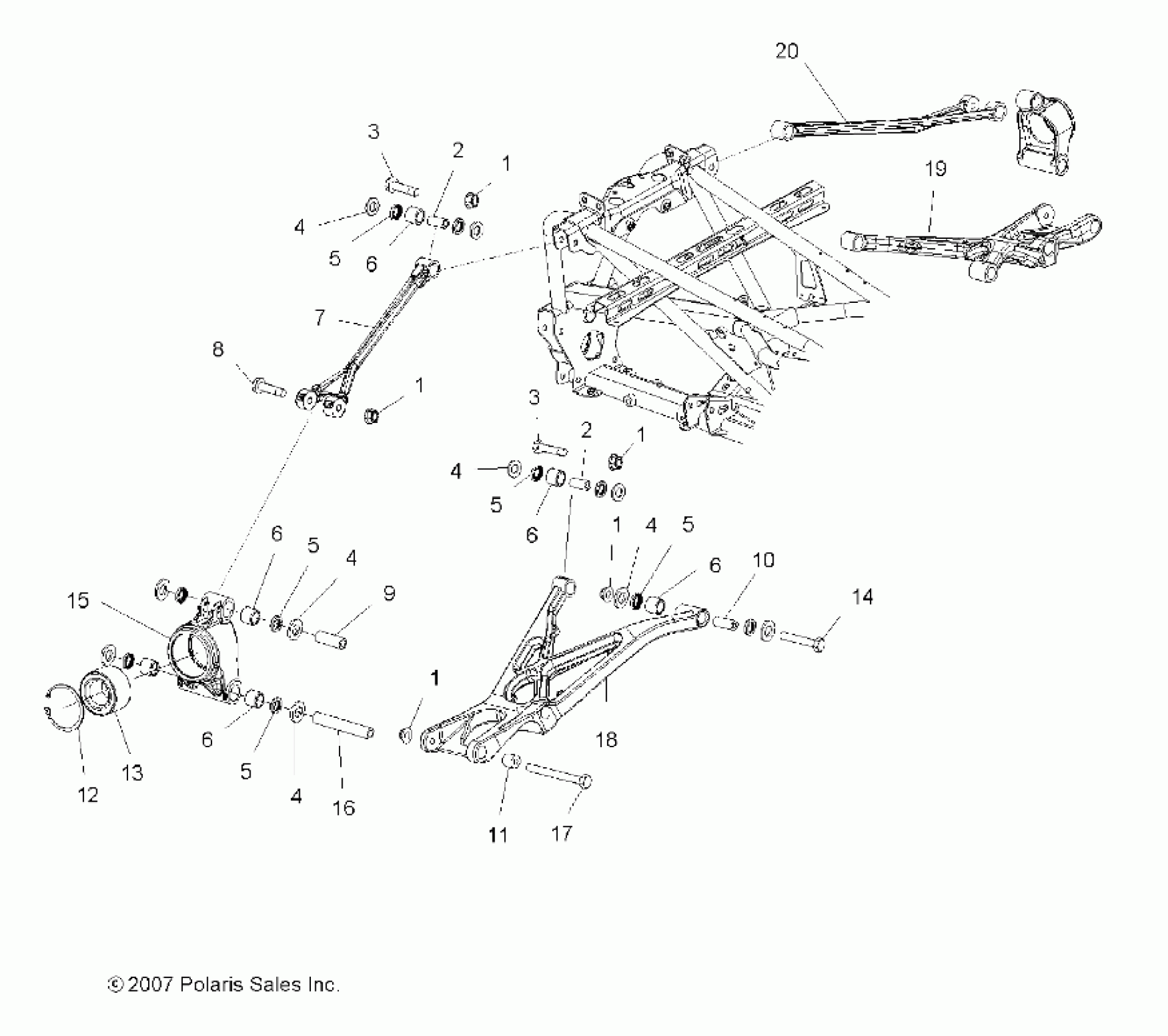

Polaris OUTLAW 525 IRS - A11GP52AA SUSPENSION, REAR - A11GP52AA (49ATVSUSPRR08OUT525) Diagram

#

Description
Price

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

2

Shaft, Inner

5334816

$36.41

2

Shaft, Inner

5334816

$36.41

3

BOLT, FLANGE

7518563

$3.19

3

BOLT, FLANGE

7518563

$3.19

4

Washer, Thrust

7556356

$5.59

4

Washer, Thrust

7556356

$5.59

4

Washer, Thrust

7556356

$5.59

4

Washer, Thrust

7556356

$5.59

4

Washer, Thrust

7556356

$5.59

5

Seal

3610125

$10.39

5

Seal

3610125

$10.39

5

Seal

3610125

$10.39

5

Seal

3610125

$10.39

5

Seal

3610125

$10.39

6

Bearing, Needle

3514542

$15.99

6

Bearing, Needle

3514542

$15.99

6

Bearing, Needle

3514542

$15.99

6

Bearing, Needle

3514542

$15.99

6

Bearing, Needle

3514542

$15.99

7

Arm, Control, Upper, RH

5136018

Unavailable

8

Bolt, Flange

7518560

Unavailable

9

Shaft, Control Arm, Outer

5335307

$39.99

10

Shaft, Control Arm, Inner

5335366

$28.32

11

Sleeve, Float

5334894

$124.99

12

RING, RETAINING

7710507

$2.39

13

Bearing, Hub

3514342

Unavailable

14

Bolt, Flange

7518561

$7.19

15

Carrier, Bearing

5136016

Unavailable

16

Shaft, Bearing Carrier

5334820

$32.37

17

Bolt, Flange

7518858

$9.59

18

Arm, Control, Lower, RH

5136147

$245.70

19

Arm, Control, Lower, LH

5136146

$274.99

20

Arm, Control, Upper, LH

5136017

Unavailable
