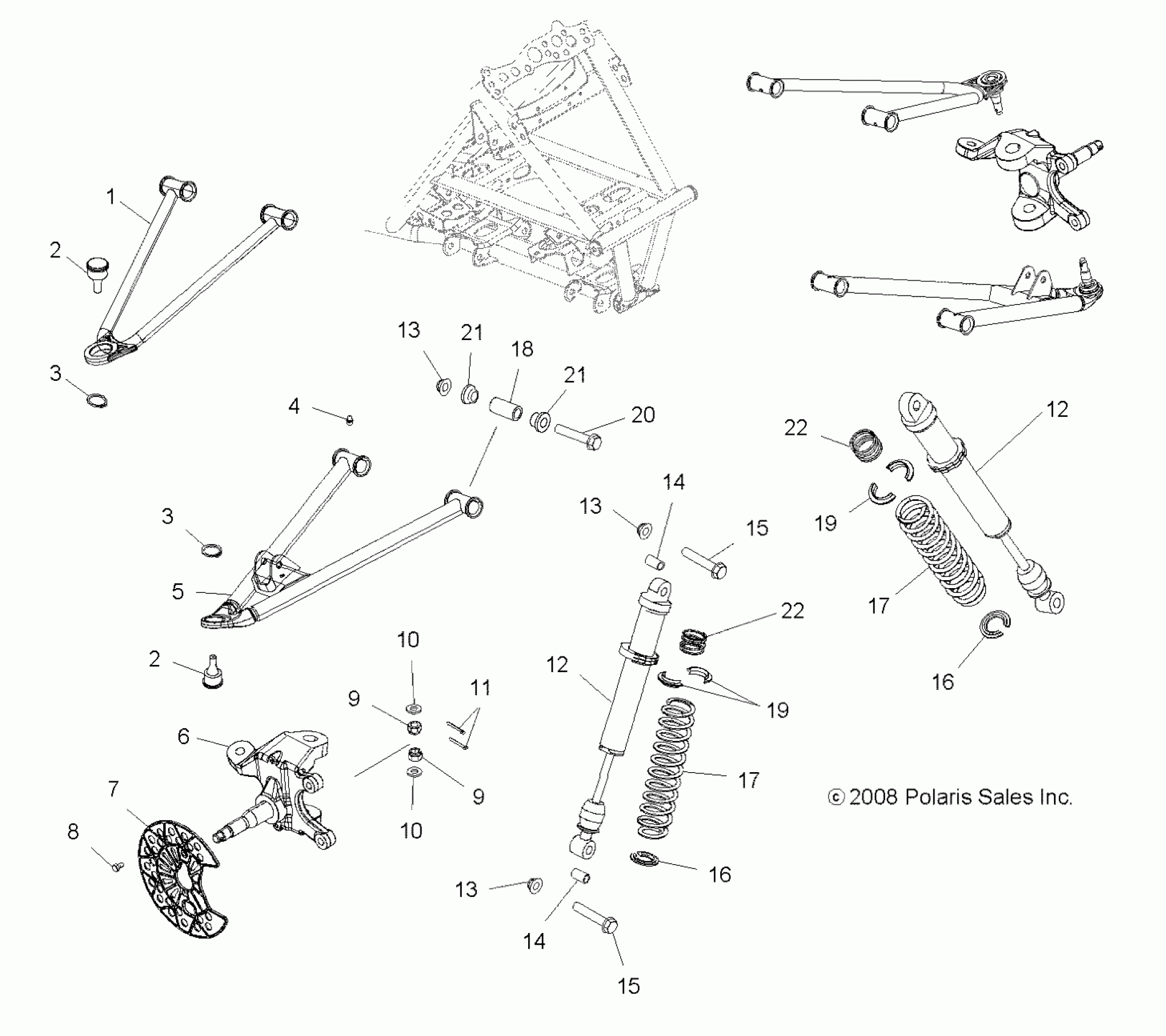

Polaris OUTLAW 525 IRS - A11GP52AA SUSPENSION, FRONT - A11GP52AA (49ATVSUSPFRT09OUT525IRS) Diagram

#

Description
Price

1

A-Arm, Upper, LH, Silver

1015697-385

Unavailable

1

A-Arm, Upper, RH, Silver

1015698-385

Unavailable

2

Joint, Ball

7061156

$48.40

2

Joint, Ball

7061156

$48.40

3

RING, RETAINER

7710533

$2.38

3

RING, RETAINER

7710533

$2.38

4

Fitting, Lubrication

7080433

$1.19

5

A-Arm, Lower, RH, Silver

1015076-385

Unavailable

5

A-Arm, Lower, LH, Silver

1015075-385

Unavailable

6

Asm., Knuckle, Steering, LH

1823340

Unavailable

6

Asm., Knuckle, Steering, RH

1823341

Unavailable

7

Guard, Disk, Inner

5436830

$12.94

8

Screw

7518441

Unavailable

9

NUT, CASTLE

7547336

$11.11

9

NUT, CASTLE

7547336

$11.11

10

WASHER

7556376

$3.17

10

WASHER

7556376

$3.17

11

Pin, Cotter

7661203

$1.19

12

Shock, Front [See Shock, Front Page for Details]

7043459

$257.99

12

Shock, Front [See Shock, Front Page for Details]

7043459

$257.99

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

SLEEVE

5334876

$15.37

14

SLEEVE

5334876

$15.37

15

Screw

7518559

$5.56

15

Screw

7518559

$5.56

16

Retainer, Spring, Slotted

5630580

$24.99

16

Retainer, Spring, Slotted

5630580

$24.99

17

Spring, Compression, Indy Red

7043197-293

Unavailable

17

Spring, Compression, Indy Red

7043197-293

Unavailable

18

Shaft, A-Arm

5135270

$15.19

19

Spacer, Spring, Nylon

5436643

$4.84

19

Spacer, Spring, Nylon

5436643

$4.84

20

Screw

7518664

$7.14

21

Bushing, A-Arm

5434575

$10.32

21

Bushing, A-Arm

5434575

$10.32

22

Spring, Compression, Indy Red

7043471-293

Unavailable

22

Spring, Compression, Indy Red

7043471-293

Unavailable
