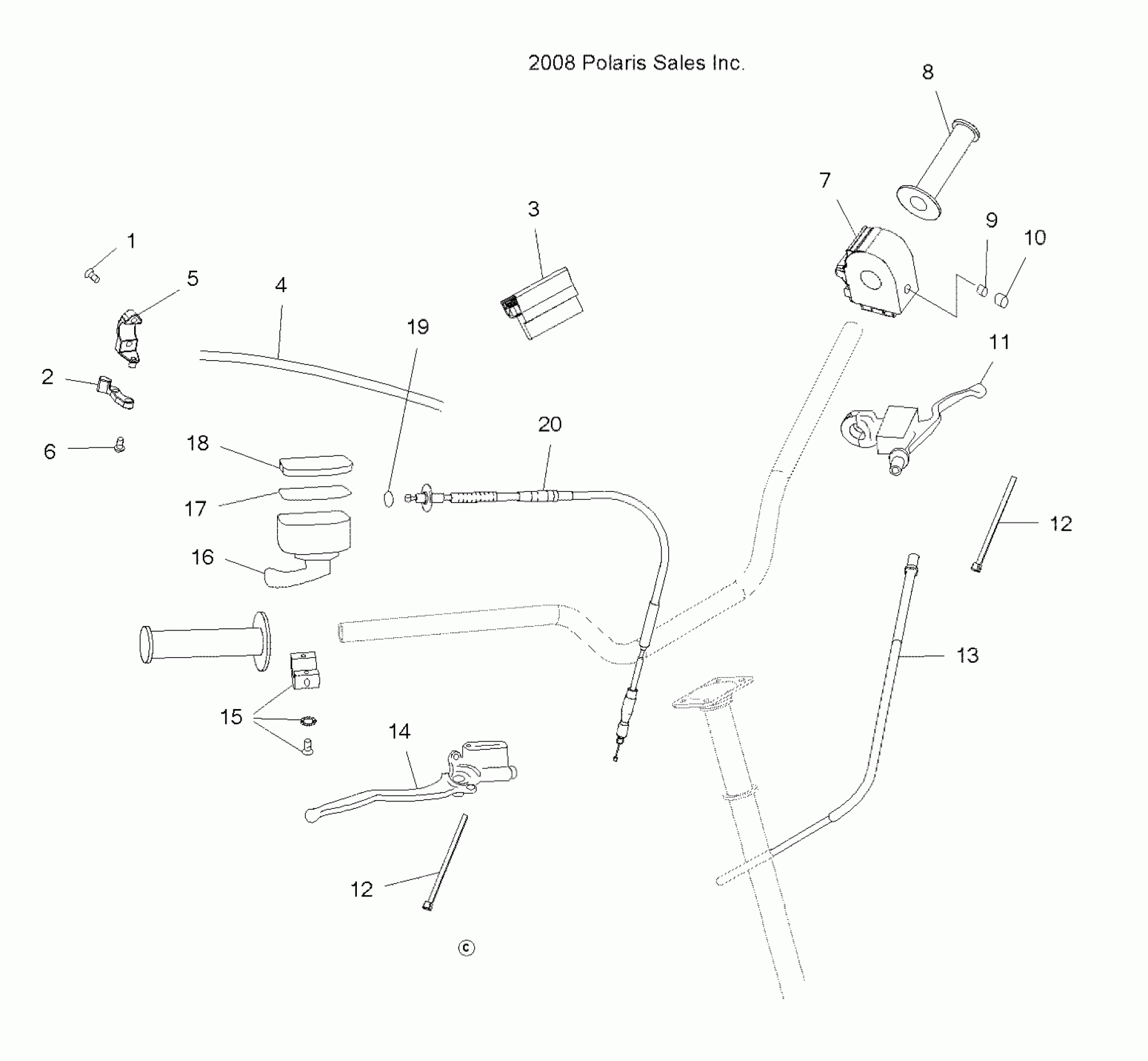

Polaris OUTLAW 525 IRS - A11GP52AA STEERING, CONTROLS and INDICATOR - A11GP52AA (49ATVCONTROLS09OUT525) Diagram

#

Description
Price

1

SCREW

7517305

$4.79

2

Lever, Reverse

5135435

$28.32

3

Panel, Indicator Light, 3 Position

4010315

Unavailable

4

Cable, Reverse

7081541

Unavailable

5

Bracket, Reverse Lever

5135514

$32.37

6

Bolt

7518647

$11.99

7

Switch, Handlebar

4011442

$119.99

8

Grip, Handlebar

5436089-070

$28.32

9

SCREW, SET

7517625

$4.79

10

PLUG, HOLE

5432952

$5.59

11

Asm., Clutch Lever, Hydraulic

2010292

Unavailable

11

Switch, Clutch

2010328

$119.99

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

Line, Hydraulic Clutch

2010327

Unavailable

14

Asm., Master Cylinder

1911392

Unavailable

15

ASM-THROTTLE CLAMP [INCL. CLAMP, WASHERS, SCREWS]

2010191

$31.99

16

Asm., Throttle Control [Incl. 15]

2010335

$59.99

17

O-RING

5411439

$2.39

18

COVER, THROTTLE CONTROL

5434113

$31.99

19

O-RING

5410193

$4.99

20

Cable, Throttle

7081542

$72.84
