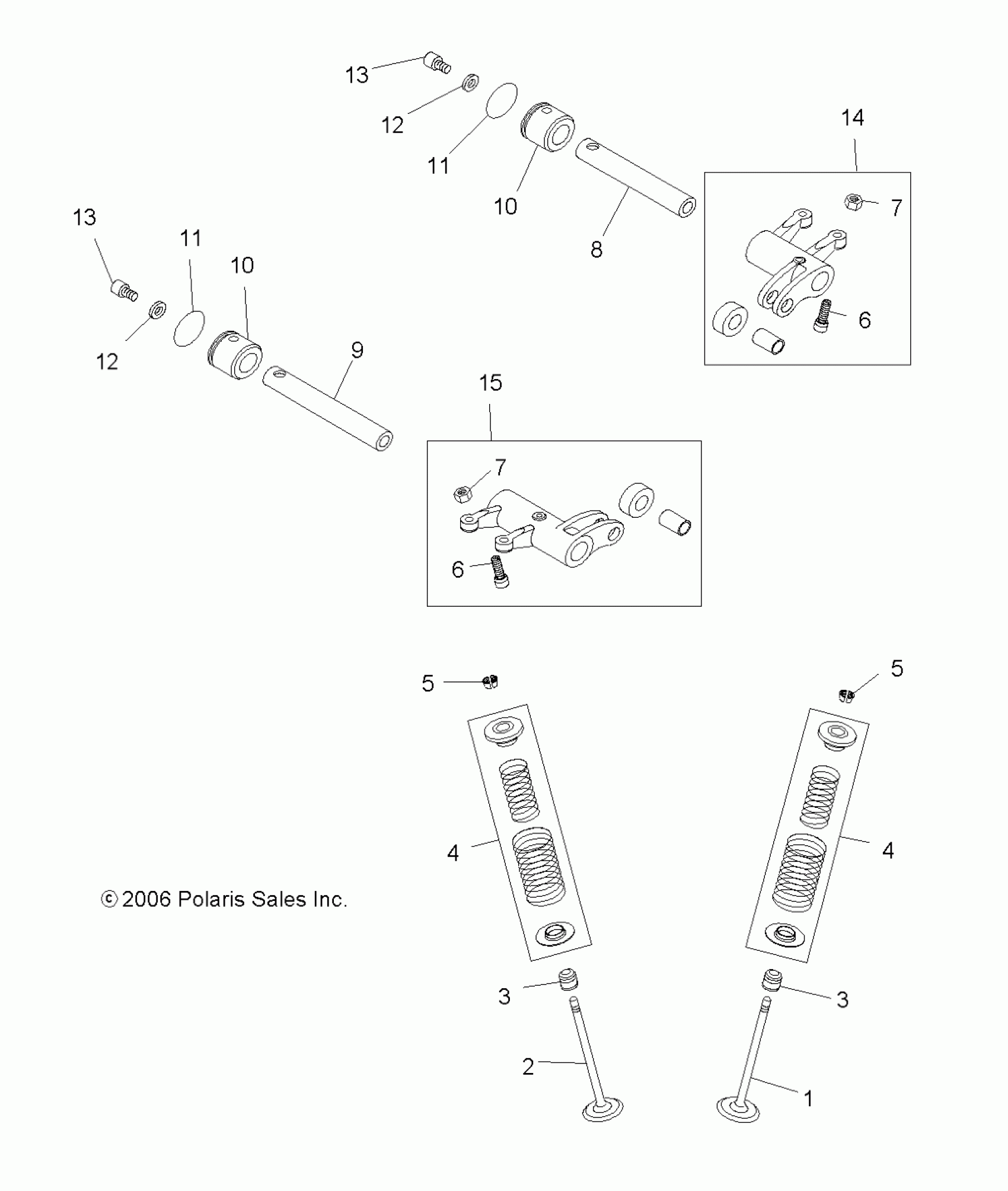

Polaris OUTLAW 525 IRS - A11GP52AA ENGINE, VALVE DRIVE - A11GP52AA (49ATVVALVE07OUT525) Diagram

#

Description
Price

1

Valve, Intake

5135841

$54.33

2

Valve, Exhaust

5135842

$64.99

3

Seal, Valve Stem

5413250

$13.59

3

Seal, Valve Stem

5413250

$13.59

4

Kit, Valve Spring

2203414

$169.99

4

Kit, Valve Spring

2203414

$169.99

5

Keeper, Valve

5910275

$4.79

5

Keeper, Valve

5910275

$4.79

6

Screw, Valve Lash Adjuster

7518792

Unavailable

6

Screw, Valve Lash Adjuster

7518792

Unavailable

7

Nut, Valve Lash Adjuster Lock

7547391

Unavailable

7

Nut, Valve Lash Adjuster Lock

7547391

Unavailable

8

Shaft, Rocket Arm, Intake

3021853

Unavailable

9

Shaft, Rocket Arm, Exhaust

3021854

$44.99

10

Asm., Rocket Arm, Shaft End Cap

3021852

Unavailable

10

Asm., Rocket Arm, Shaft End Cap

3021852

Unavailable

11

O-Ring

5413307

$4.84

11

O-Ring

5413307

$4.84

12

Washer, Aluminum

7556445

Unavailable

12

Washer, Aluminum

7556445

Unavailable

13

Screw

7518793

Unavailable

13

Screw

7518793

Unavailable

14

Asm., Rocket Arm, Intake

3021851

Unavailable

15

Asm., Rocket Arm, Exhaust

3021850

$279.99
