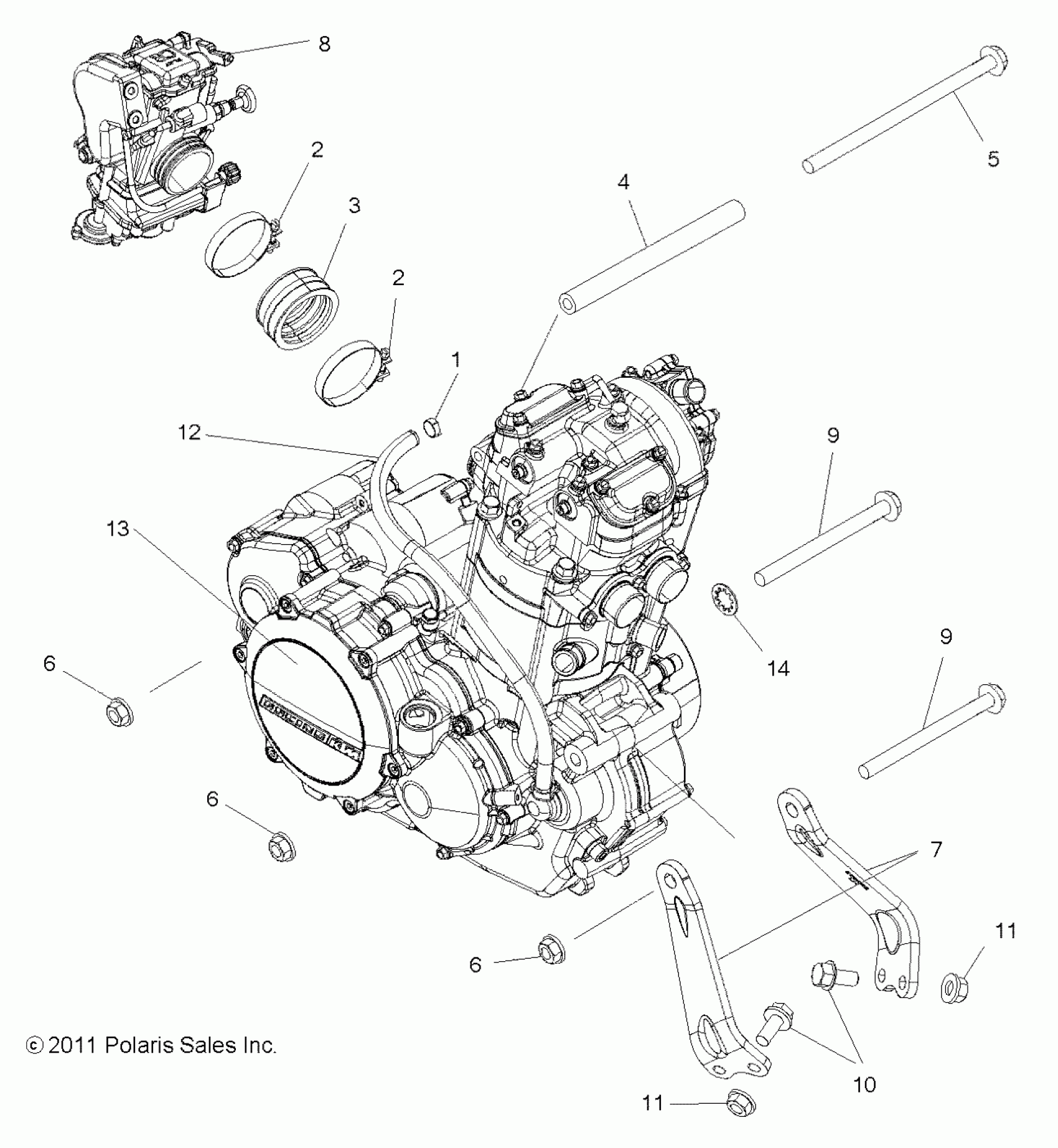

Polaris OUTLAW 525 IRS - A11GP52AA ENGINE, MOUNTING - A11GP52AA (49ATVENGINEMTG11OUT525) Diagram

#

Description
Price

1

Clamp

7080699

$1.59

2

Clamp

7080511

$4.79

2

Clamp

7080511

$4.79

3

Boot, Intake

5413231

Unavailable

4

Bushing, Engine, Rear

5135718

$23.99

5

Bolt

7518712

$38.93

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

Mount, Engine, LH

5251022

$64.99

7

Mount, Engine, RH

5251023

$64.99

8

Asm., Carb

1203824

$1,174.99

9

BOLT

7518665

$13.59

9

BOLT

7518665

$13.59

10

Bolt, Flanged

7518576

$3.19

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

12

Hose, Breather

5413360

Unavailable

13

Engine, ES051KLE015

-------

Unavailable

14

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79
