ENGINE, CRANKCASE - A11GP52AA (49ATVCRANKCASE08OUT525S)

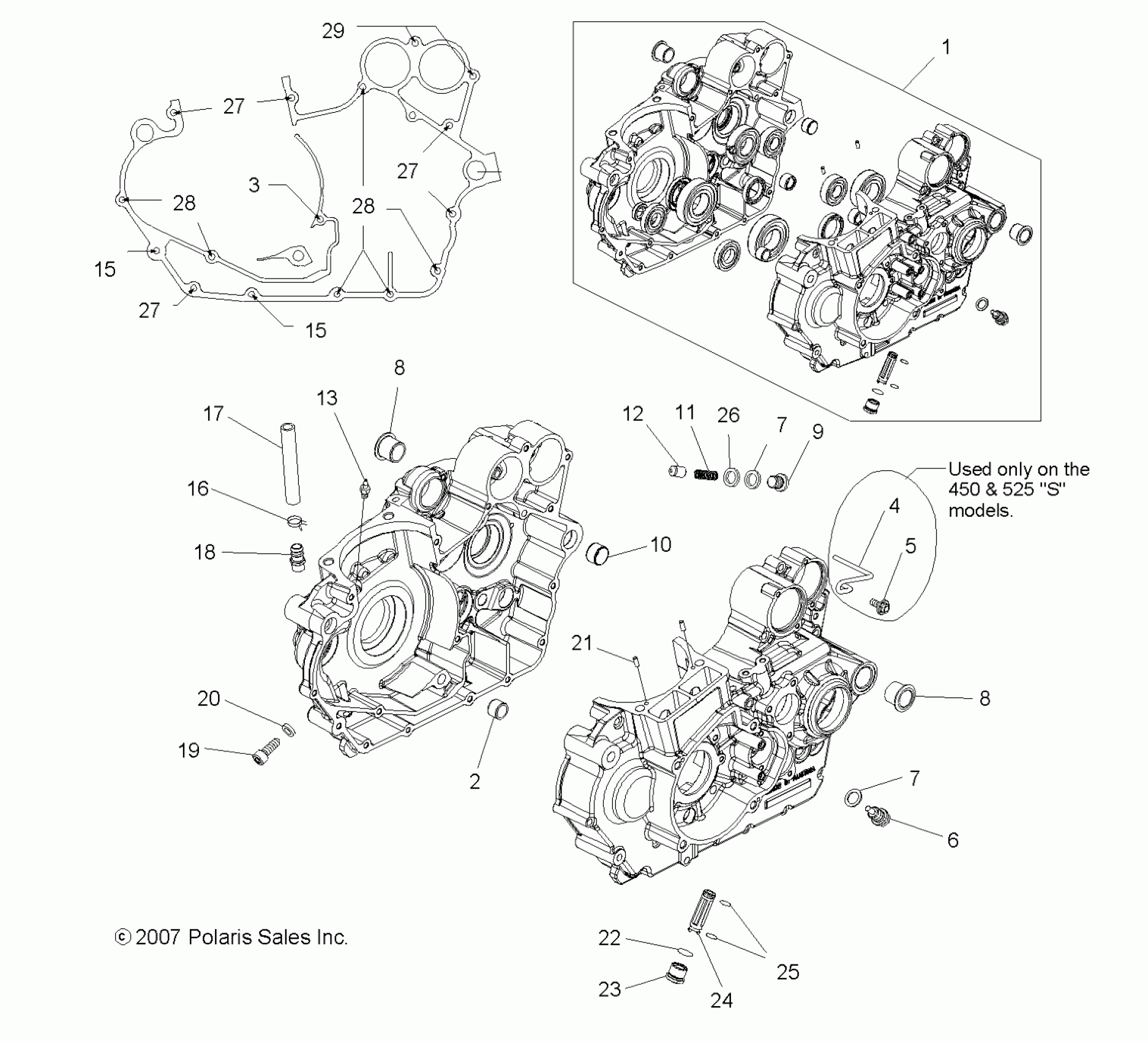

Polaris OUTLAW 525 IRS - A11GP52AA ENGINE, CRANKCASE - A11GP52AA (49ATVCRANKCASE08OUT525S) Diagram
#
Description
Price
1
Asm., Crankcase w/Bearing
1203731
$1,609.99
2
Dowel
7661930
Unavailable
3
Screw
7518731
$9.59
4
Guide, Vent Hose
7052424
Unavailable
5
Screw
7518726
$3.03
6
Plug, Oil Drain
7052421
$27.99
7
Washer, CU
7556391
$5.59
7
Washer, CU
7556391
$5.59
8
Bushing, Engine Mount, Rear
5135975
Unavailable
8
Bushing, Engine Mount, Rear
5135975
Unavailable
9
Plug
7052423
$7.19
10
Dowel
7661940
Unavailable
11
Spring, Pressure
7043294
$9.92
12
Valve, Pressure Regulator
7052422
Unavailable
13
Nozzle, Oil
2520748
$17.49
15
Screw
7518729
$3.02
15
Screw
7518729
$3.02
16
Clamp, Hose
7080699
$1.59
17
Hose, Breather
5413360
Unavailable
18
Fitting, Breather Hose
7052426
Unavailable
19
Screw
7518790
Unavailable
20
Washer, Copper
7556417
$6.99
21
Needle, Roller
3514575
$3.97
22
O-Ring
5413305
$9.70
23
Plug, Oil Screen
7052449
Unavailable
24
Screen, Oil
2520747
$34.99
25
O-Ring
5413304
$4.03
26
Washer, CU
7556395
Unavailable
27
Screw
7518728
$5.59
27
Screw
7518728
$5.59
27
Screw
7518728
$5.59
28
Screw
7518727
$3.03
28
Screw
7518727
$3.03
29
Screw
7518730
$4.79
