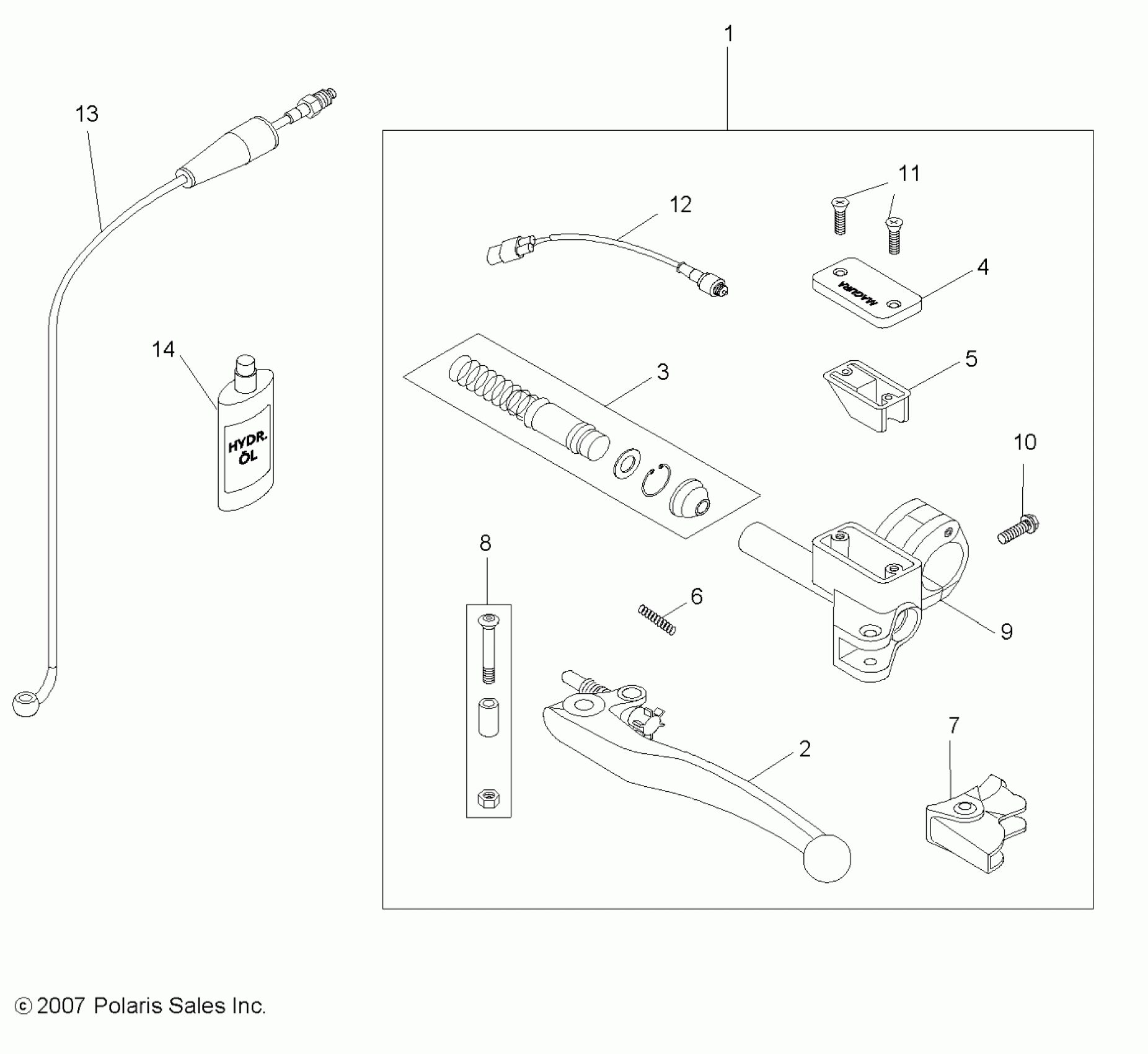

Polaris OUTLAW 525 IRS - A11GP52AA ENGINE, CLUTCH LEVER and MASTER CYLINDER - A11GP52AA (49ATVMCLH08OUT525S) Diagram

#

Description
Price

1

Asm., Master Cylinder, CPL. [Incl. 2-12]

2010292

Unavailable

2

Lever, Clutch

2010317

$84.99

3

Asm., Master Cylinder

2010319

Unavailable

4

Cover, Clutch Reservoir

2010320

Unavailable

5

Baffle, Rubber, Clutch Reservoir

2010321

$40.46

6

Spring, Clutch Lever

2010322

$9.99

7

Cap, Rubber, Clutch Lever

2010323

Unavailable

8

Screw, Clutch Lever

2010324

$27.03

9

Clamp, Clutch Perch w/Pin

2010325

Unavailable

10

Screw, Socket Head

7517305

$4.79

11

Screw, Clutch Reservoir

2010326

Unavailable

12

Switch, Clutch

2010328

$119.99

13

Line, Hydraulic Clutch

2010327

Unavailable

14

Oil, Hydraulic Clutch, KTM

2876335

Unavailable
