Description

Price

1

Basket, Clutch, 75T

5135839

Unavailable

2

Hub, Clutch, Inner

5135838

Unavailable

3

Disc, Clutch, Friction, 2MM

3234460

$44.99

4

Disc, Clutch, Metal, 1MM

3234458

Unavailable

4

Disc, Clutch, Metal, 1MM

3234458

Unavailable

5

Disc, Clutch, Metal, 1.4MM

3234459

Unavailable

6

Spring, Clutch

7043302

$9.99

7

Retainer, Spring

7043301

$5.59

8

Plate, Pressure w/Oil Boring

5135840

$104.99

9

Kit, Hydroclutch, Banjo Bolt

2203411

$54.99

10

Pushrod

3234461

Unavailable

11

Washer, Half

7710598

$6.99

12

Washer, Support

7556410

Unavailable

13

Screw

7518737

Unavailable

14

Bearing, Needle

3514580

$14.99

15

Cap, Clutch, Rod End

1203521

Unavailable

16

Kit, Hydroclutch, Slave Cylinder

2203413

$179.99

17

O-Ring

5413253

$6.46

18

Nut, Hex

7547379

$15.87

19

Kit, Hydroclutch, Piston

2203412

$173.95

20

Screw, Hydraulic Bleed w/Cap

7518794

$49.99

21

BOLT

7518612

$4.79

22

Screw

7518723

$4.79

23

Washer, Stipped

7556409

$29.99

24

Gasket, Hydroclutch, Slave Cylinder

5813171

Unavailable

25

Washer, Lock

7547380

$13.59

26

Sleeve, Driven, Hub, Clutch, Inner

3234457

Unavailable

27

Ring, Snap

7710613

$6.39

28

Washer, Thrust

7556444

Unavailable

29

Bearing, Thrust, Needle

3514602

Unavailable

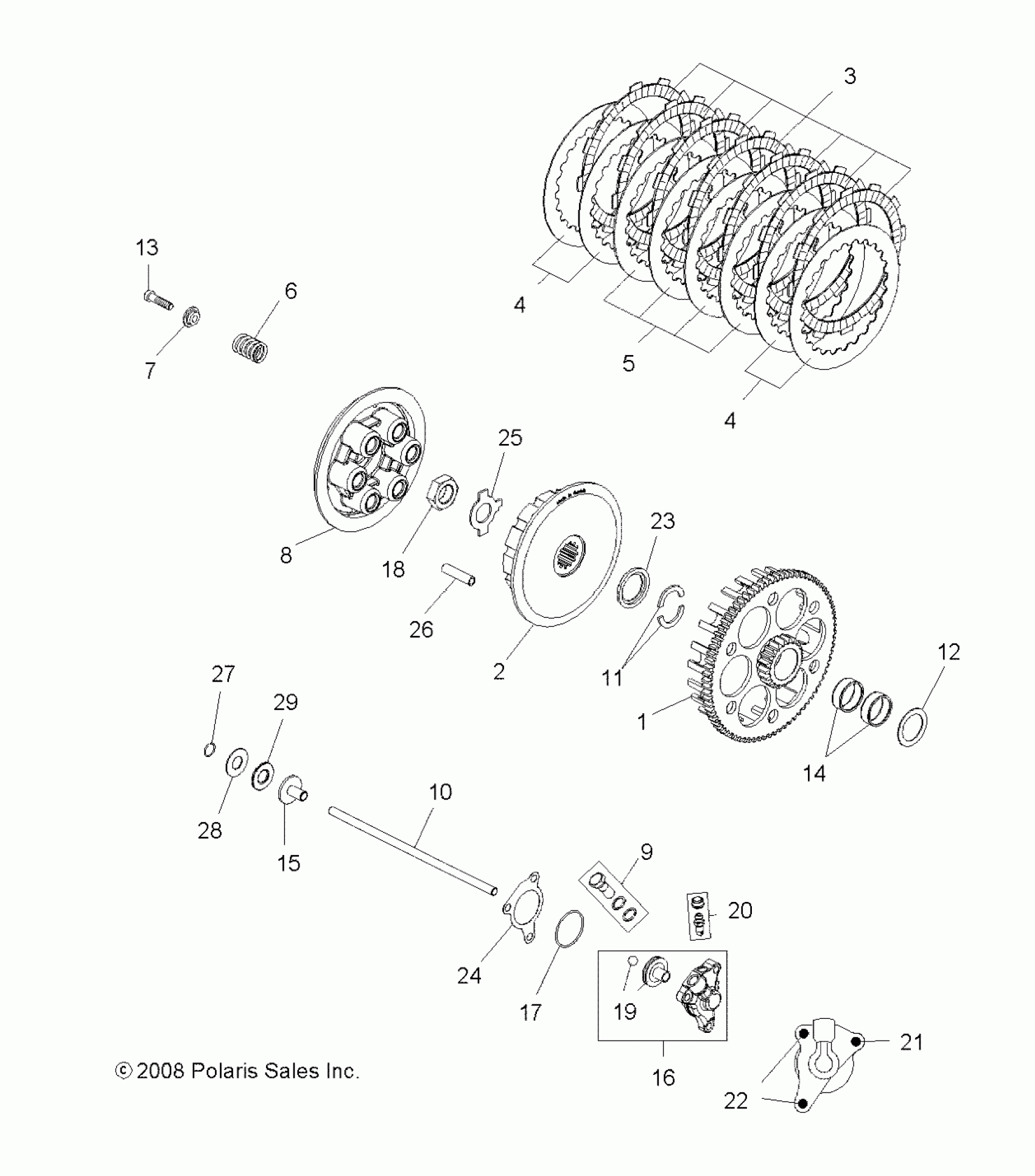

Polaris OUTLAW 525 IRS - A11GP52AA ENGINE, CLUTCH - A11GP52AA (49ATVCLUTCH09OUT450) Diagram

Basket, Clutch, 75T

Hub, Clutch, Inner

Disc, Clutch, Friction, 2MM

Disc, Clutch, Metal, 1MM

Disc, Clutch, Metal, 1MM

Disc, Clutch, Metal, 1.4MM

Spring, Clutch

Retainer, Spring

Plate, Pressure w/Oil Boring

Kit, Hydroclutch, Banjo Bolt

Pushrod

Washer, Half

Washer, Support

Screw

Bearing, Needle

Cap, Clutch, Rod End

Kit, Hydroclutch, Slave Cylinder

O-Ring

Nut, Hex

Kit, Hydroclutch, Piston

Screw, Hydraulic Bleed w/Cap

BOLT

Screw

Washer, Stipped

Gasket, Hydroclutch, Slave Cylinder

Washer, Lock

Sleeve, Driven, Hub, Clutch, Inner

Ring, Snap

Washer, Thrust

Bearing, Thrust, Needle
