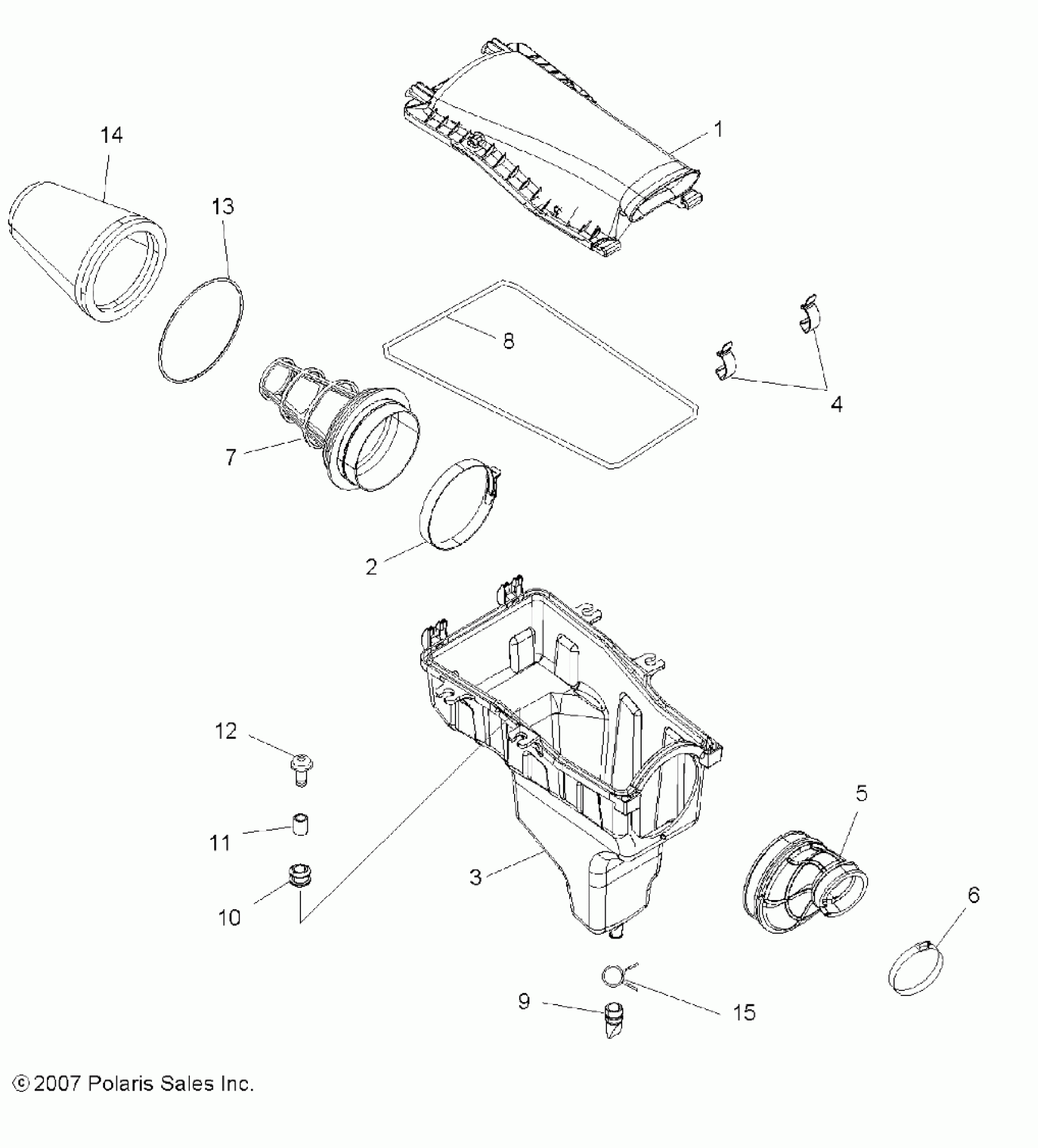

Polaris OUTLAW 525 IRS - A11GP52AA ENGINE, AIR INTAKE SYSTEM - A11GP52AA (49ATVAIRBOX08OUT525) Diagram

#

Description
Price

1

Cover, Airbox

5437009

Unavailable

2

Clamp, Air Filter

7081441

$5.59

3

Housing, Airbox

5437008

$56.65

4

Clip, Airbox

5249753

$10.39

5

Duct, Airbox/Carb

5437011

$31.99

6

Clamp, Narrow Band

7080413

$3.19

7

Housing, Filter Cage

5437057

$15.99

8

Seal, Cover

5813182

Unavailable

9

Cap, Drain

5412960

$15.19

10

Grommet, Rubber

5412961

$4.99

11

Collar, Grommet

5436452

Unavailable

12

Screw

7518196

$1.49

13

Clamp, Spring, Air Filter

7081440

$13.59

14

Filter, Airbox

2520738

$29.67

15

CLAMP, HOSE

7081488

$6.39
