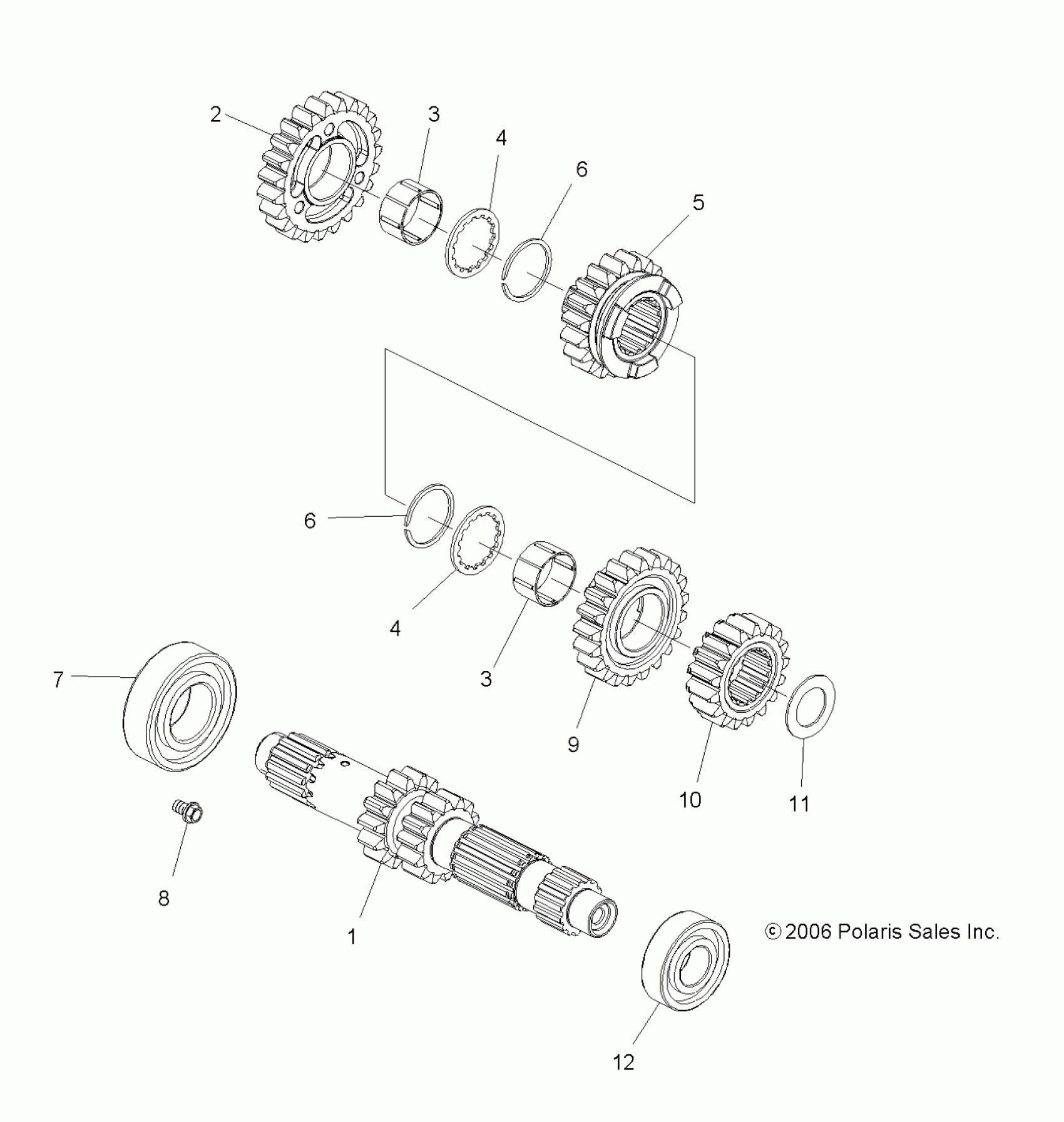

Polaris OUTLAW 525 IRS - A11GP52AA DRIVE TRAIN, TRANSMISSION - A11GP52AA (49ATVTRANSMISSION07OUT525) Diagram

#

Description
Price

1

Shaft, Main

6230371

Unavailable

2

Gear, 5th, Mainshaft, 23T

6230375

$114.99

3

Bearing, Needle

3514599

Unavailable

3

Bearing, Needle

3514599

Unavailable

4

Washer, Thrust

7556438

$5.59

4

Washer, Thrust

7556438

$5.59

5

Gear, 3rd, Mainshaft, 19T

6230373

Unavailable

6

Ring, Snap

7710611

$11.19

6

Ring, Snap

7710611

$11.19

7

Bearing, Ball

3514572

$24.99

8

Screw

7518724

$1.79

9

Gear, 4th, Mainshaft, 21T

6230374

$79.37

10

Gear, 2nd, Mainshaft, 17T

6230372

Unavailable

11

Washer, Thrust

7556439

Unavailable

12

Bearing, Ball

3514571

$19.99
