- OUTLAW 525 IRS - A11GP52AA
DRIVE TRAIN, TRANSMISSION 2 - A11GP52AA (49ATVTRANSMISSION208OUT525S)

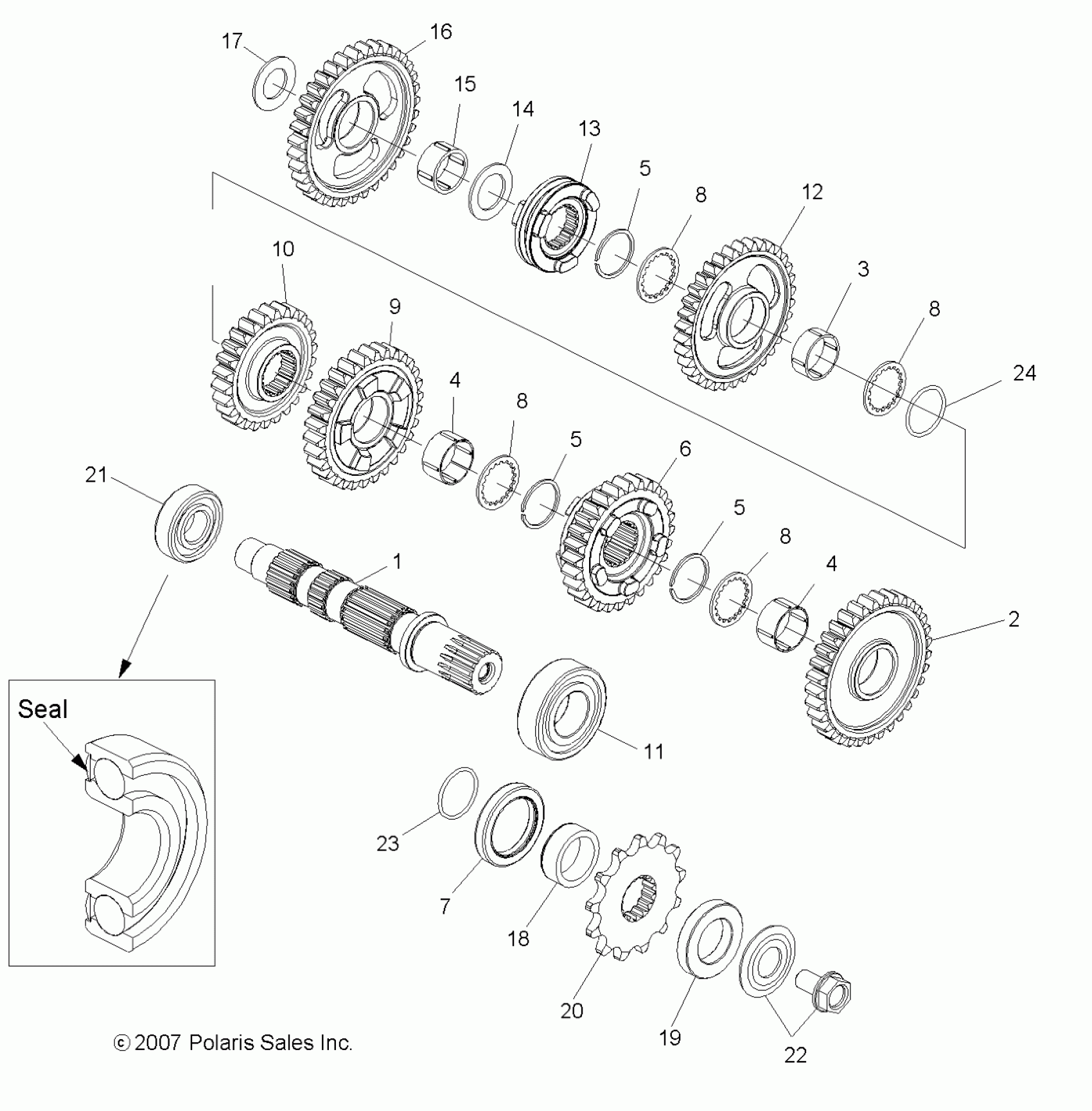

Polaris OUTLAW 525 IRS - A11GP52AA DRIVE TRAIN, TRANSMISSION 2 - A11GP52AA (49ATVTRANSMISSION208OUT525S) Diagram
#
Description
Price
1
Shaft, Counter
6230376
$179.99
2
Gear, 2nd, Countershaft, 33T
6230378
$103.99
3
Bearing, Needle
3514598
$11.99
4
Bearing, Needle
3514597
$11.99
4
Bearing, Needle
3514597
$11.99
5
Ring, Snap
7710611
$11.19
5
Ring, Snap
7710611
$11.19
5
Ring, Snap
7710611
$11.19
6
Gear, 4th, Countershaft, 28T
6230380
$99.99
7
Seal, Shaft
5413246
$9.59
8
Washer, Thrust
7556437
$5.59
8
Washer, Thrust
7556437
$5.59
8
Washer, Thrust
7556437
$5.59
8
Washer, Thrust
7556437
$5.59
9
Gear, 3rd, Countershaft, 30T
6230379
$87.99
10
Gear, 5th, Countershaft, 26T
6230381
$96.99
11
Bearing, Cylinder Roller
3514573
$109.99
12
Gear, Countershaft, Reverse
6230383
$129.99
13
Dog, Engagement, 1st/Reverse
6230382
$109.99
14
Washer, Thrust
7556440
$4.39
15
Bearing, Needle
3514600
Unavailable
16
Gear, 1st, Countershaft, 35T
6230377
Unavailable
17
Washer, Thrust
7556441
Unavailable
18
Bushing, Spacer
5135844
$39.99
19
Collar, Spacer
7661941
Unavailable
20
Sprocket, Countershaft, 14T [Stock]
3222160
Unavailable
20
Sprocket, Countershaft, 15T
3222181
$44.99
20
Sprocket, Countershaft, 13T
3222180
Unavailable
21
Bearing, Ball
3514596
$19.99
22
Kit, Countershaft, Sprocket, Bolt and Washer
2203497
$13.59
23
O-Ring
5413251
$7.19
24
Shim, Transmission, .2 mm
5251733
Unavailable
24
Shim, Transmission, .3 mm
5251734
Unavailable
