- OUTLAW 525 IRS - A11GP52AA
DRIVE TRAIN, REAR DRIVE SHAFT ASM. - A11GP52AA (49ATVSHAFTDRIVERR08OUT525IRS)

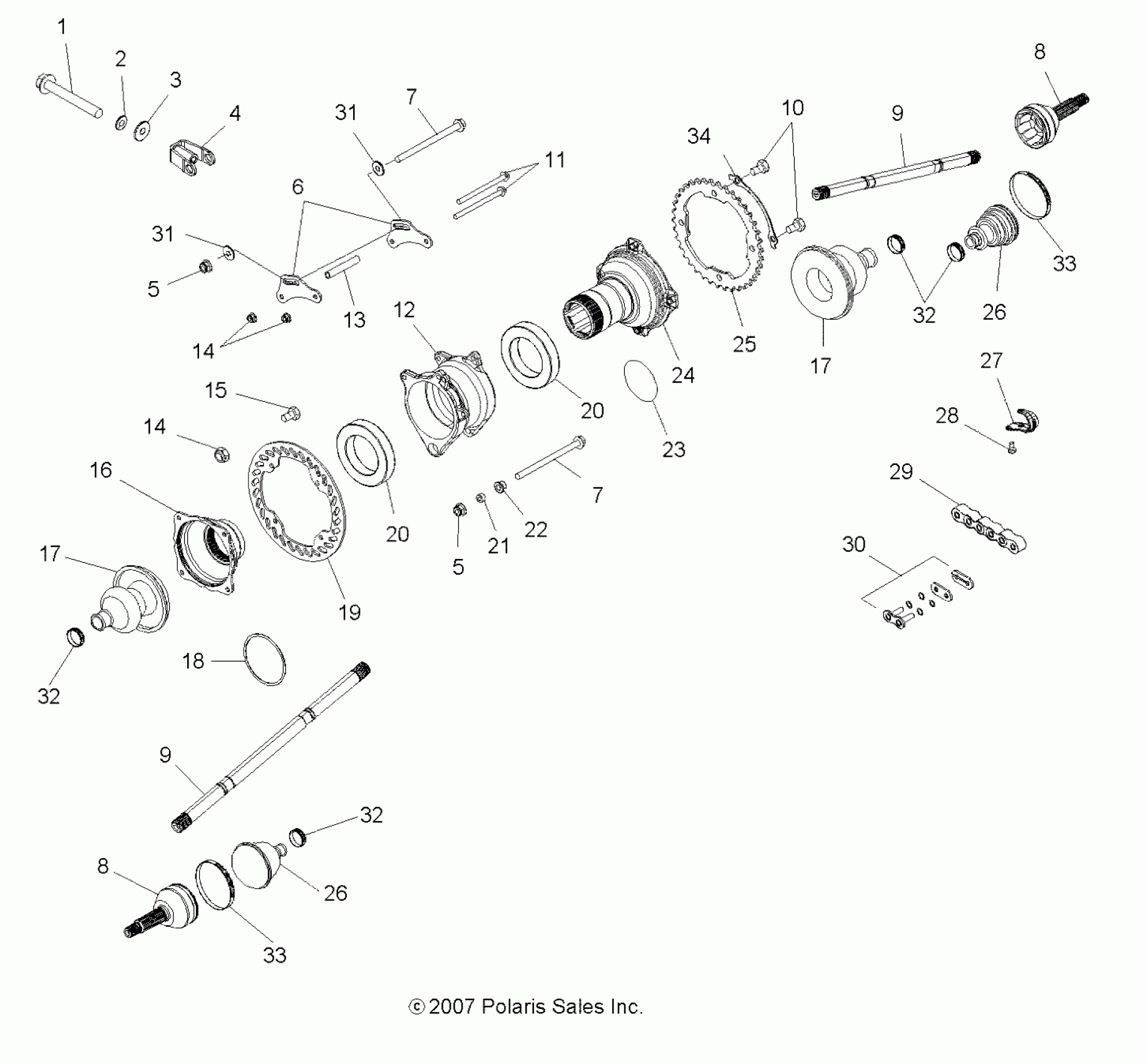

Polaris OUTLAW 525 IRS - A11GP52AA DRIVE TRAIN, REAR DRIVE SHAFT ASM. - A11GP52AA (49ATVSHAFTDRIVERR08OUT525IRS) Diagram
#
-
Asm., Drive Shaft, Rear [Incl. 8,9,12,16-18,20,23,24,26]
1521150
Unavailable
1
Bolt, Flange
7518610
$23.99
2
Washer, Lock
7556378
$3.99
3
Bushing, Pivot, Adjustor
5334734
Unavailable
4
Pivot, Clevis
1015637
$43.99
5
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
5
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
6
Bracket, Pivot Mount Plate
5249808
Unavailable
7
Bolt, Flange
7518665
$13.59
7
Bolt, Flange
7518665
$13.59
8
Joint
1332429
$339.99
8
Joint
1332429
$339.99
9
Shaft
1332442
$214.99
9
Kit, Circlip, Service [For 1332442]
7710557
Unavailable
9
Shaft
1332442
$214.99
9
Kit, Circlip, Service [For 1332442]
7710557
Unavailable
10
Bolt
7519006
$3.99
11
Screw
7518557
$4.39
12
Housing, Pivot, Rear Drive
5134955
Unavailable
13
Spacer, Pivot Mount
5335067
Unavailable
14
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
14
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
15
Bolt, Flange
7518450
$1.59
16
Hub, Rear Disc
5134956
Unavailable
17
Kit, Boot, Inner
2203135
$70.39
17
Kit, Boot, Inner
2203135
$70.39
18
Ring, Retaining
7710574
$39.99
19
Disc, Brake
5249138
$94.99
20
Bearing
3514548
Unavailable
20
Bearing
3514548
Unavailable
21
Sleeve
5334873
$37.11
22
Insert
5334874
$47.99
23
O-Ring
5413072
$12.13
24
Kit, Hub, Sprocket
2203136
Unavailable
25
Sprocket, Rear [Stock]
3222138
$83.99
25
Sprocket, 37T [Accessory]
3222147
Unavailable
25
Sprocket, 39T [Accessory]
3222148
Unavailable
25
Sprocket, 40T [Accessory]
3222183
Unavailable
26
Kit, Boot, Outer
2201015
$47.99
26
Kit, Boot, Outer
2201015
$47.99
27
Guide, Chain
5436479
Unavailable
28
Screw
7512084
$1.49
29
Chain, 96P
3221193-096
$157.84
30
Link, Connector
3221192
$27.99
31
Washer, Flat
7556099
$1.59
31
Washer, Flat
7556099
$1.59
32
Clamp, Band
3260123
$7.99
32
Clamp, Band
3260123
$7.99
32
Clamp, Band
3260123
$7.99
33
Clamp, Band
3260121
$9.59
33
Clamp, Band
3260121
$9.59
34
Plate, Bolt Retainer
5252256
$10.39
