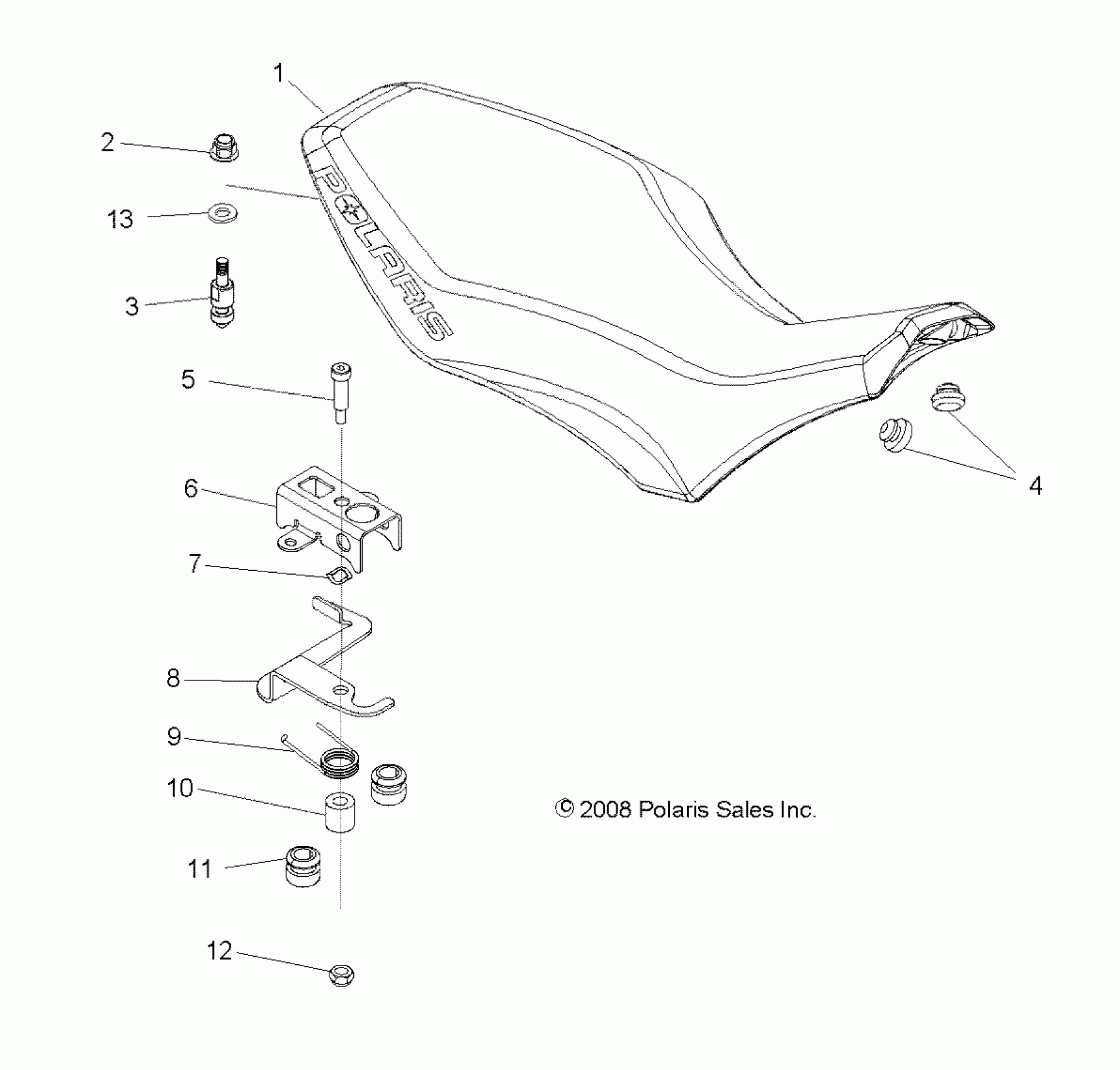

Polaris OUTLAW 525 IRS - A11GP52AA BODY, SEAT - A11GP52AA (49ATVSEAT09OUT525) Diagram

#

Description

Price

1

Asm., Seat, Black [Incl. 2-4,13]

2684164-070

Unavailable

1

Asm., Cover

2684165

Unavailable

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

Pin, Seat Latch

5136142

$59.99

4

BUMPER-RUBBER

5412067

$3.99

5

Bolt, Shoulder

7517745

$8.79

6

Housing, Seat Latch, Black

1016984-329

Unavailable

7

Washer, Wave

7571619

$7.19

8

Lever, Seat Latch, Black

5252615-329

$10.63

9

Spring, Torsion, Seat Latch

7043472

Unavailable

10

Spacer, Seat Latch

5437825

Unavailable

11

GROMMET

5412507

$6.39

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

Washer, Flat

7555734

$1.49
