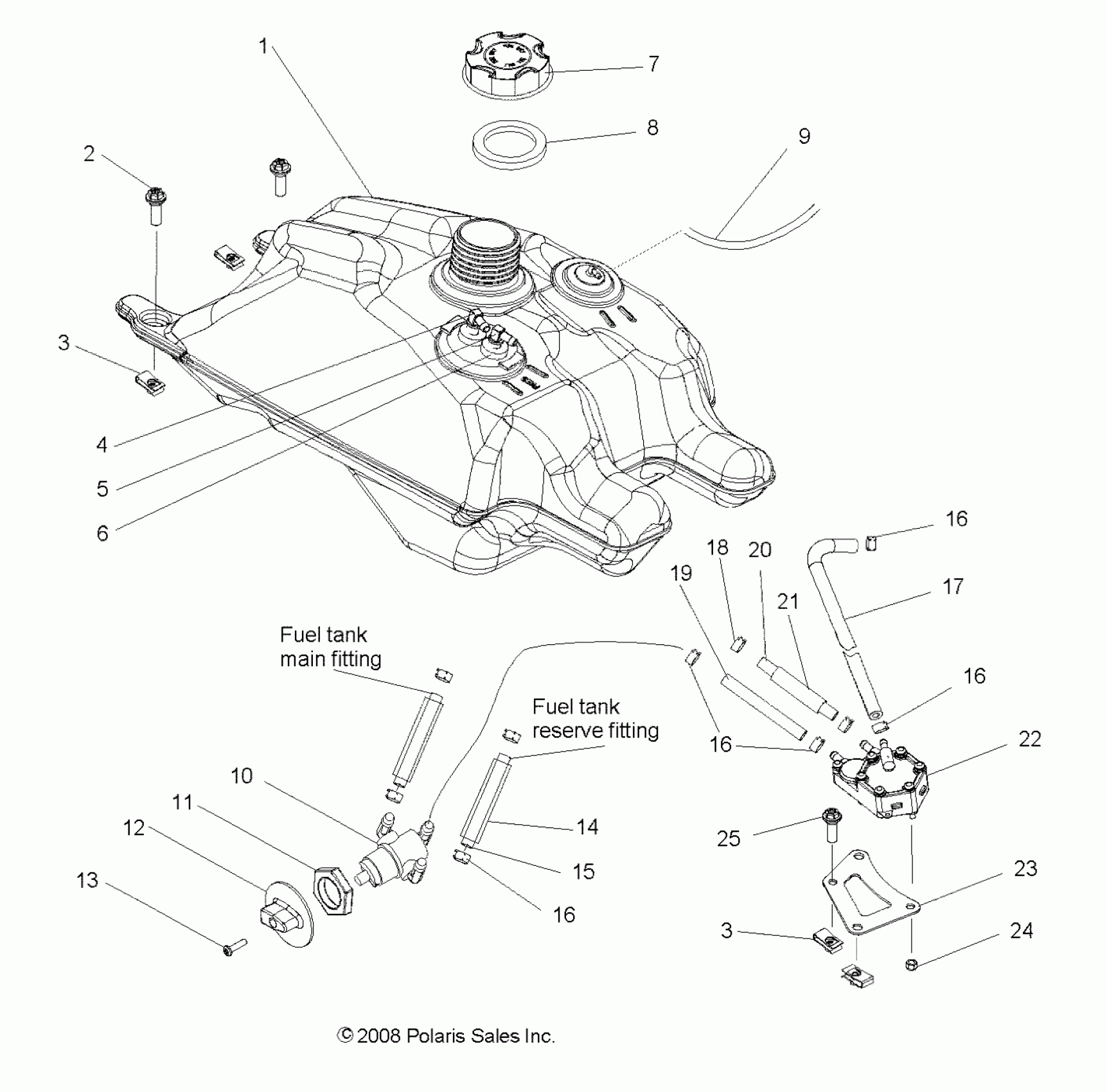

Polaris OUTLAW 525 IRS - A11GP52AA BODY, FUEL SYSTEM - A11GP52AA (49ATVFUEL09OUT525) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. 4-6]

2520880

$314.27

2

Bolt, Flange

7518897

$1.59

3

CLIP-U SPEED NUT

7081305

$1.99

3

CLIP-U SPEED NUT

7081305

$1.99

4

Asm., Fuel Inlet Tube, Main [White Fitting]

2520945

$16.47

5

Asm., Fuel Inlet Tube, Reserve [Black Fitting]

2520946

Unavailable

6

Grommet, Flanged

7052466

$19.99

7

Cap, Gas Tank

5433687

$20.22

8

GASKET

5812123

$5.65

9

LINE, OIL

8450061-600

Unavailable

10

Valve, 3-Way

7052155

Unavailable

11

Nut, Fuel Valve

5432733

Unavailable

12

Knob, Fuel Valve

5432559

$10.39

13

Screw

7517505

$1.59

14

Conduit, Flex

8360054-30

Unavailable

15

HOSE, FUEL

8450117-250

Unavailable

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

Hose, Pulse

5413647

$32.15

18

Clamp, Hose

7080534

$1.59

19

Hose, Valve/Pump

5413648

$18.23

20

Hose, Pump/Carb

5413646

$30.71

21

Conduit, Flex

8360054-63

Unavailable

22

Asm., Fuel Pump

2520227

$79.99

23

Bracket, Mount, Fuel Pump, Black

5252946-329

$15.67

24

NUT-M5X.8,HX NYL-Y

7546601

$1.49

25

SCR-HXFLTX-M6X1.0X15 8.8 ZOD

7519066

$3.99
