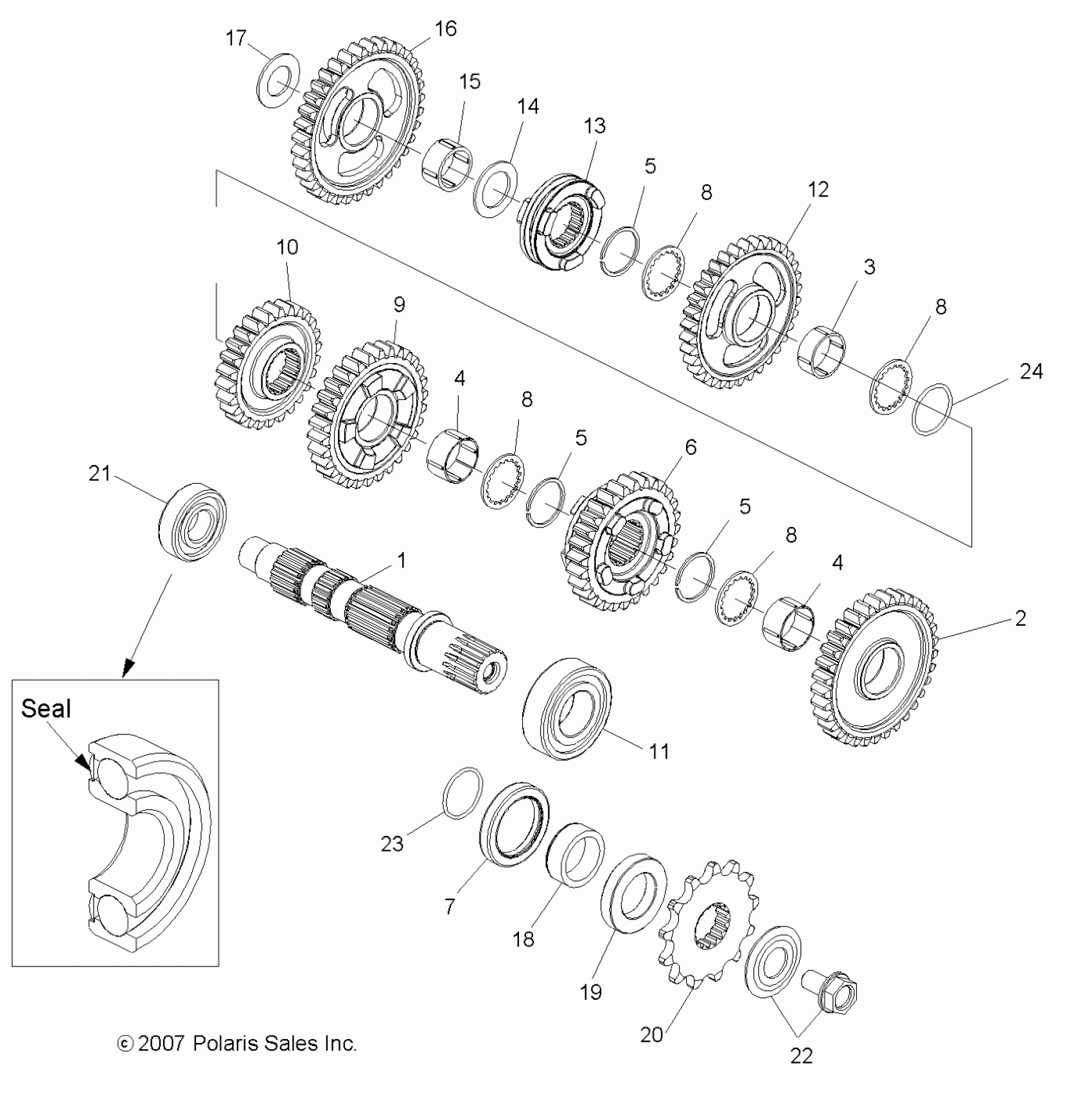

Polaris OUTLAW 525 IRS - A08GP52AA DRIVE TRAIN, TRANSMISSION 2 - A08GP52AA (49ATVTRANSMISSION208OUT525) Diagram

#

Description
Price

1

Shaft, Counter

6230376

$179.99

2

Gear, 2nd, Countershaft, 33T

6230378

$103.99

3

Bearing, Needle

3514598

$11.99

4

Bearing, Needle

3514597

$11.99

4

Bearing, Needle

3514597

$11.99

5

Ring, Snap

7710611

$11.19

5

Ring, Snap

7710611

$11.19

5

Ring, Snap

7710611

$11.19

6

Gear, 4th, Countershaft, 28T

6230380

$99.99

7

Seal, Shaft

5413246

$9.59

8

Washer, Thrust

7556437

$5.59

8

Washer, Thrust

7556437

$5.59

8

Washer, Thrust

7556437

$5.59

8

Washer, Thrust

7556437

$5.59

9

Gear, 3rd, Countershaft, 30T

6230379

$87.99

10

Gear, 5th, Countershaft, 26T

6230381

$96.99

11

Bearing, Cylinder Roller

3514573

$109.99

12

Gear, Countershaft, Reverse

6230383

$129.99

13

Dog, Engagement, 1st/Reverse

6230382

$109.99

14

Washer, Thrust

7556440

$4.39

15

Bearing, Needle

3514600

Unavailable

16

Gear, 1st, Countershaft, 35T

6230377

Unavailable

17

Washer, Thrust

7556441

Unavailable

18

Bushing, Spacer

5135844

$39.99

19

Collar, Spacer

7661941

Unavailable

20

Sprocket, Countershaft, 14T

3222160

Unavailable

20

Sprocket, Countershaft, 13T

3222180

Unavailable

21

Bearing, Ball

3514596

$19.99

22

Kit, Countershaft, Sprocket, Bolt and Washer

2203497

$13.59

23

O-Ring

5413251

$7.19

24

Shim, Transmission, .2 mm

5251733

Unavailable

24

Shim, Transmission, .3 mm

5251734

Unavailable
