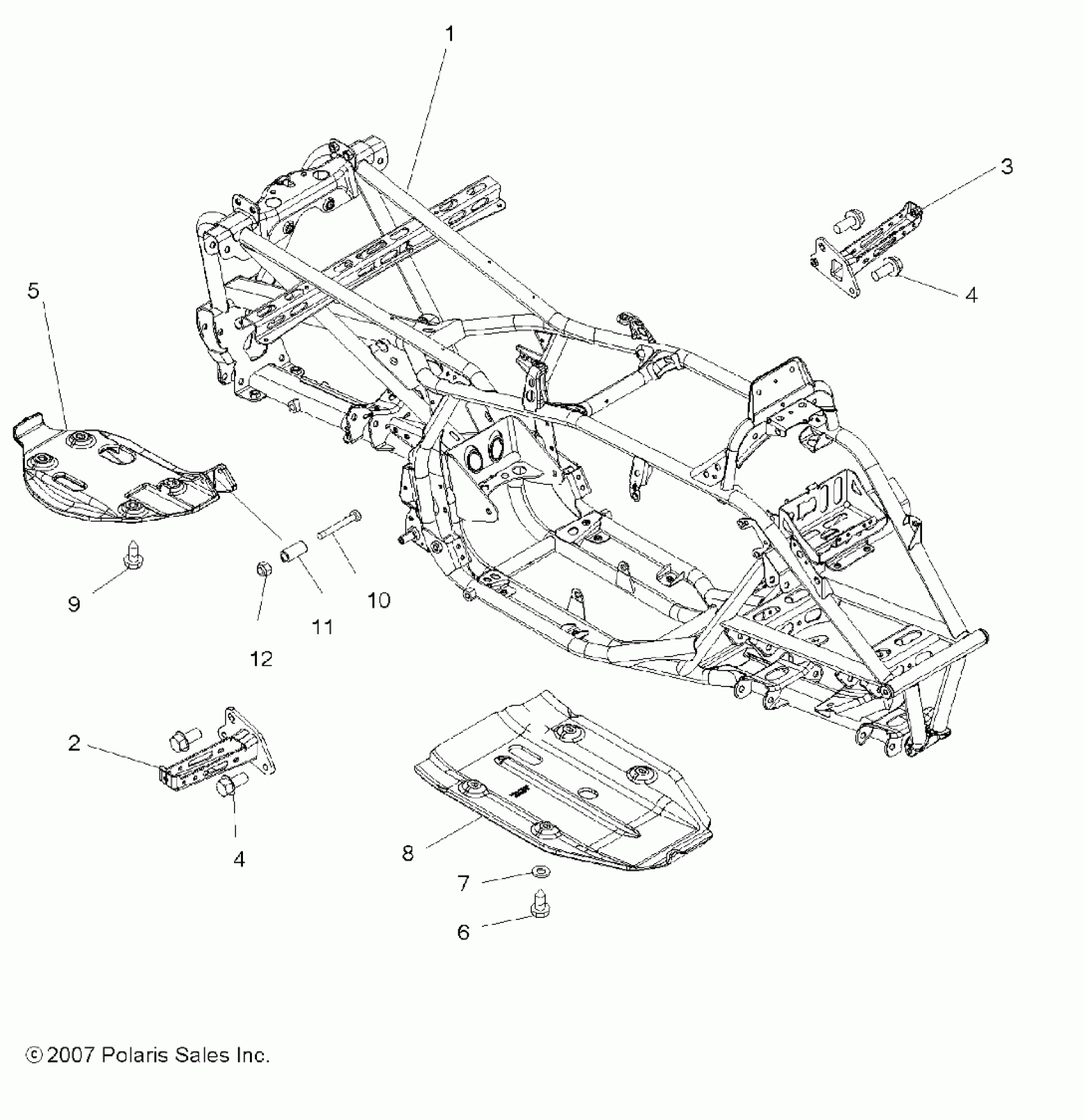

Polaris OUTLAW 525 IRS - A08GP52AA CHASSIS, FRAME - A08GP52AA (49ATVFRAME08OUT525) Diagram

#

Description
Price

1

Frame, Main, Matte' Black

1016197-458

Unavailable

2

Peg, Foot, RH, Matte' Black

1015490-458

Unavailable

3

Peg, Foot, LH, Matte' Black

1015489-458

Unavailable

4

BOLT, FLANGE

7518558

$3.97

4

BOLT, FLANGE

7518558

$3.97

5

Guard, Rock, Rear

5436463

Unavailable

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

7

Washer, Flat

7555859

$1.19

8

Guard, Rock, Front

5436902

$53.17

9

Bolt, Flange

7518450

$1.59

10

Bolt, Flange

7518512

$4.76

11

Sleeve

5436525

Unavailable

12

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97
