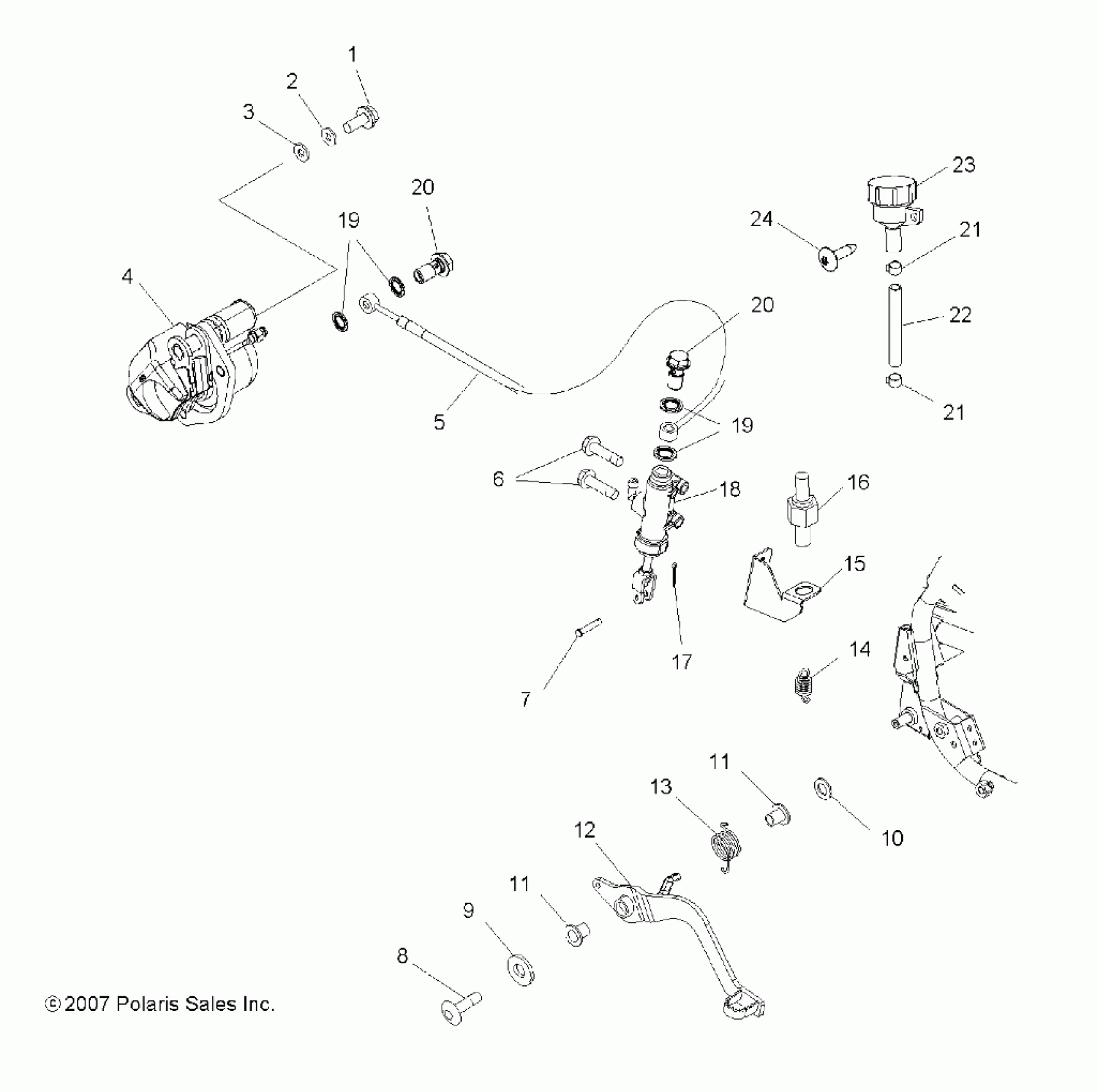

Polaris OUTLAW 525 IRS - A08GP52AA BRAKES, REAR - A08GP52AA (49ATVBRAKERR08OUT525) Diagram

#

Description
Price

1

Bolt, Flange

7518450

$1.59

2

WASHER, SPRING LOCK

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

Asm., Caliper, Brake, Rear

1911238

Unavailable

5

Line, Brake, Master Cylinder to Caliper

1910915

Unavailable

6

Bolt, Flange

7518612

$4.76

7

Pin, Clevis

7661013

$5.56

8

SCREW

7518656

$3.97

9

WASHER

7556329

$1.49

10

WASHER

7555919

$4.99

11

BUSHING, PEDAL PIVOT

5433189

$3.97

11

BUSHING, PEDAL PIVOT

5433189

$3.97

12

Brake, Foot, Matte' Black

1015055-458

Unavailable

13

Spring, Torsion, Foot Brake

7042185

$7.27

14

Spring, Switch

7043213

$32.37

15

Bracket, Switch, Brake, Matte' Black

5250065-458

Unavailable

16

Switch

4010991

$52.60

17

PIN, COTTER

7661900

$3.17

18

Asm., Cylinder, Master

1910627

$174.03

19

SEAL

5413212

$4.84

19

SEAL

5413212

$4.84

20

BOLT, BANJO

1910499

$5.56

20

BOLT, BANJO

1910499

$5.56

21

HOSE CLAMP, RED

7080003

$1.19

21

HOSE CLAMP, RED

7080003

$1.19

22

Hose, Reservoir

1911004

$4.92

23

Asm., Reservoir, Rear Brake

1930854

$36.41

24

Screw

7517560

$4.76
