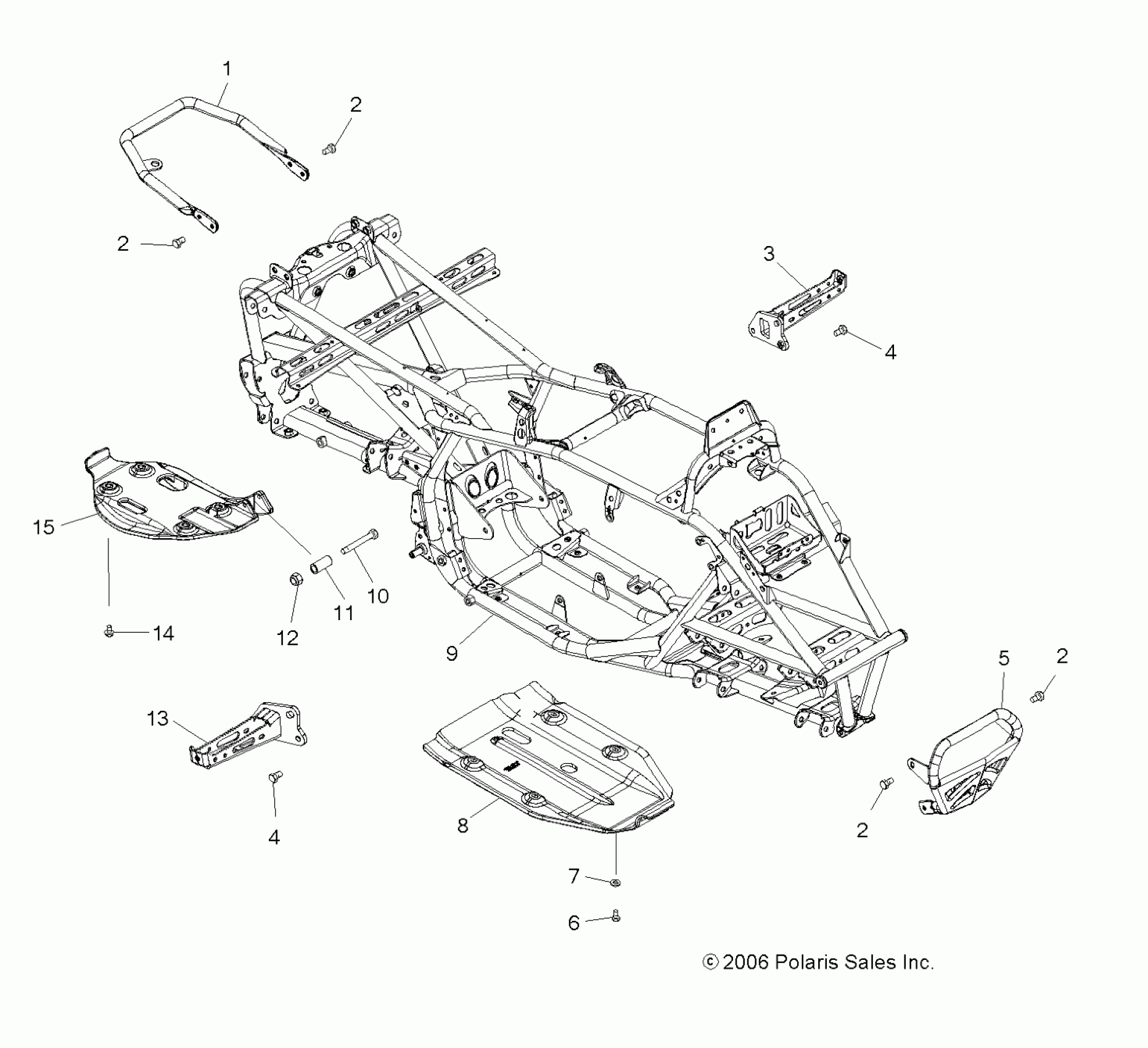

Polaris OUTLAW 525 - A07GP52AA/AB FRAME, MAIN - A07GP52AA/AB (49ATVFRAME07OUT525) Diagram

#

Description
Price

1

Bar, Grab, Matte' Black

1015052-458

Unavailable

2

SCREW

7518555

$2.38

2

SCREW

7518555

$2.38

2

SCREW

7518555

$2.38

2

SCREW

7518555

$2.38

3

Peg, Foot, LH, Matte' Black

1015489-458

Unavailable

4

Screw

7518558

$3.97

4

Screw

7518558

$3.97

5

Bumper, Front, Matte' Black

1015147-458

Unavailable

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

7

Washer, Flat

7555859

$1.19

8

Guard, Rock, Front

5436902

$53.17

9

Frame, Main, Matte' Black [If built before 1/29/07]

1015702-458

$980.94

9

Frame, Main, Matte' Black [If built after 1/29/07]

1016086-458

Unavailable

10

Screw

7518512

$4.76

11

Sleeve

5436525

Unavailable

12

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

13

Peg, Foot, RH, Matte' Black

1015490-458

Unavailable

14

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

15

Guard, Rock, Rear

5436463

Unavailable
