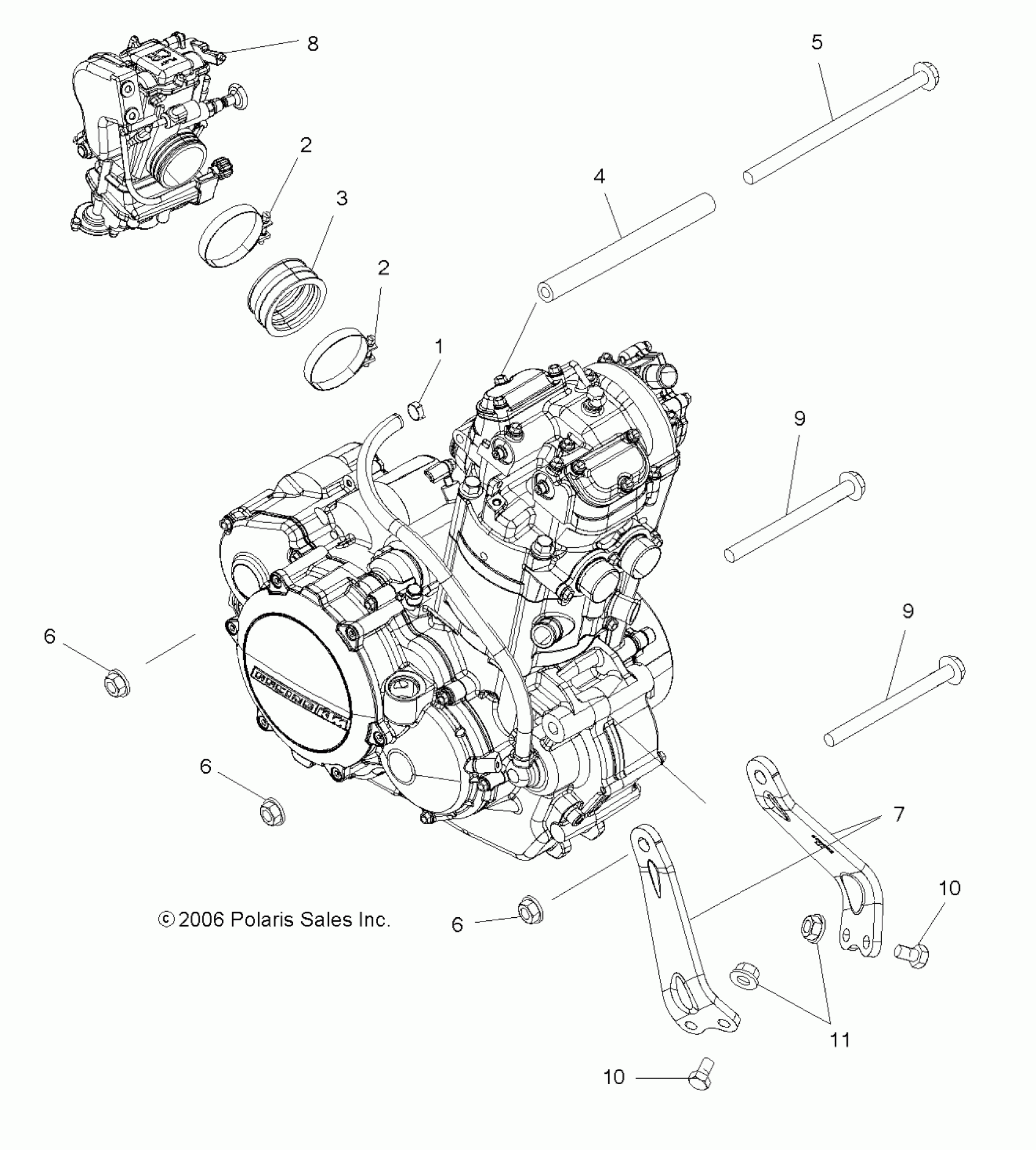

Polaris OUTLAW 525 - A07GP52AA/AB ENGINE, MOUNTING - A07GP52AA/AB (49ATVENGINE07OUT525) Diagram

#

Description
Price

1

Clamp

7080699

$1.59

2

Clamp

7080511

$4.79

2

Clamp

7080511

$4.79

3

Boot, Intake

5413231

Unavailable

4

Bushing, Engine, Rear

5135718

$23.99

5

Bolt

7518712

$38.93

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

Mount, Engine, LH

5251022

$64.99

7

Mount, Engine, RH

5251023

$64.99

8

Asm., Carb, 525

1203432

Unavailable

9

BOLT

7518665

$13.59

9

BOLT

7518665

$13.59

10

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

10

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
