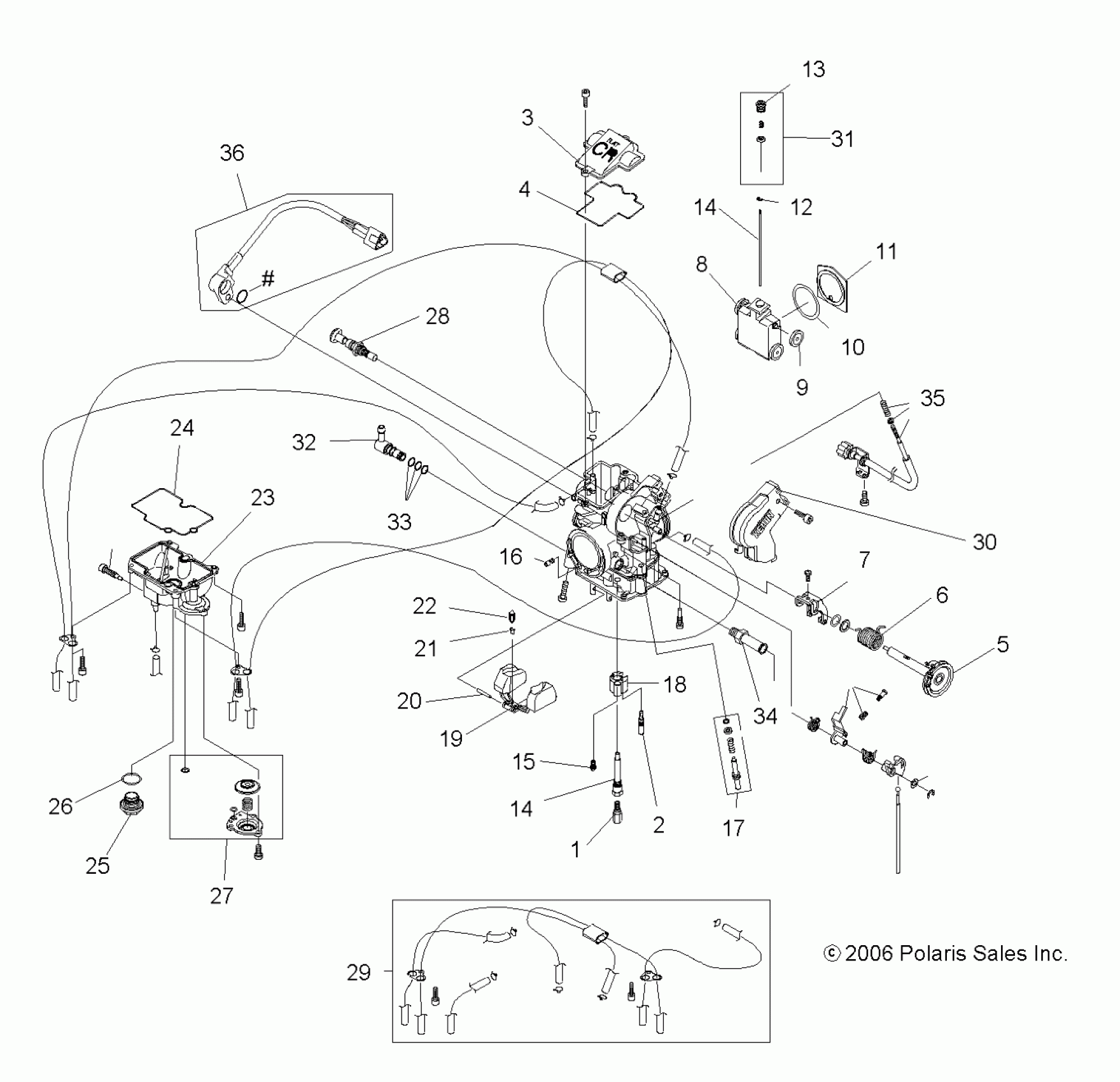

Polaris OUTLAW 525 - A07GP52AA/AB ENGINE, CARBURETOR - A07GP52AA/AB (49ATVCARB07OUT525) Diagram

#

Description
Price

-

Asm., Carburetor, Keihin

1203432

Unavailable

1

Main Jet, KHN

3050235-158

Unavailable

1

Main Jet, KHN

3050235-160

$9.91

1

Main Jet, KHN [Stock]

3050235-148

Unavailable

1

Main Jet, KHN

3050235-165

Unavailable

1

Main Jet, KHN

3050235-140

$8.23

1

Main Jet, KHN

3050235-150

Unavailable

1

Main Jet, KHN

3050235-162

$9.91

1

Main Jet, KHN

3050235-155

$12.94

1

Main Jet, KHN

3050235-170

$12.94

1

Main Jet, KHN

3050235-145

$9.11

1

Main Jet, KHN

3050235-138

Unavailable

1

Main Jet, KHN

3050235-142

$9.11

1

Main Jet, KHN

3050235-135

$7.43

1

Main Jet, KHN

3050235-168

Unavailable

1

Main Jet, KHN

3050235-152

$9.11

2

Pilot Jet, KHN

3050219-42

Unavailable

2

Pilot Jet, KHN

3050219-48

$9.91

2

Pilot Jet, KHN

3050219-40

$12.94

2

Pilot Jet, KHN

3050219-50

$9.91

2

Pilot Jet

3050219-45

$12.94

3

Cover, Carburetor Top

3131652

$42.39

4

Seal, Carburetor Cover

3131653

$39.99

5

Shaft, Throttle, Complete

3131654

Unavailable

6

Spring, Throttle

3131655

Unavailable

7

Arm, Link Throttle Valve

3131656

Unavailable

8

Valve, Throttle

3131657

Unavailable

9

Roller, Throttle Valve

3131658

$17.49

10

Seal, Throttle Valve

3131659

$13.59

11

Plate, Throttle Valve

3131660

$195.99

12

Clip, Needle

3131661

$5.75

13

Screw, Needle Set

3131662

$22.79

14

Kit, Needle and Main Nozzle

2203401

$88.56

14

Kit, Needle and Main Nozzle

2203401

$88.56

15

Starter Jet, KHN

3131663

$35.54

16

Slow Air Jet, KHN

3131677

$24.79

17

Kit, Pilot Screw

2203522

Unavailable

18

Plate, Buffer

3131665

$17.10

19

Float, Carburetor

3131666

$106.49

20

Pin, Float

3050232

$8.89

21

Clip, Float Valve

3050229

$8.79

22

Needle

2203523

$51.99

23

Bowl, Float

3131667

$140.79

24

Seal, Float Bowl

3131668

$16.99

25

Plug, Float Bowl Drain

3131669

$40.46

26

O-Ring, Plug Screw

3050217

$4.84

27

Kit, Accelerator Pump Bowl

2203524

Unavailable

28

Valve, Choke

3131670

$145.22

29

Kit, Breather Hoses

2203525

$115.99

30

Cover, Throttle

3131671

$148.79

31

Kit, Needle Set Screw, FCR

2203530

$56.99

32

Fitting, Fuel Inlet

3131673

Unavailable

33

O-Ring, Fuel Inlet

3131674

Unavailable

34

Fitting, Breather Hose

3131675

$50.49

35

Kit, Idle Speed Screw

2203526

$59.99

36

Kit, Throttle Position Sensor

2203527

$223.19
