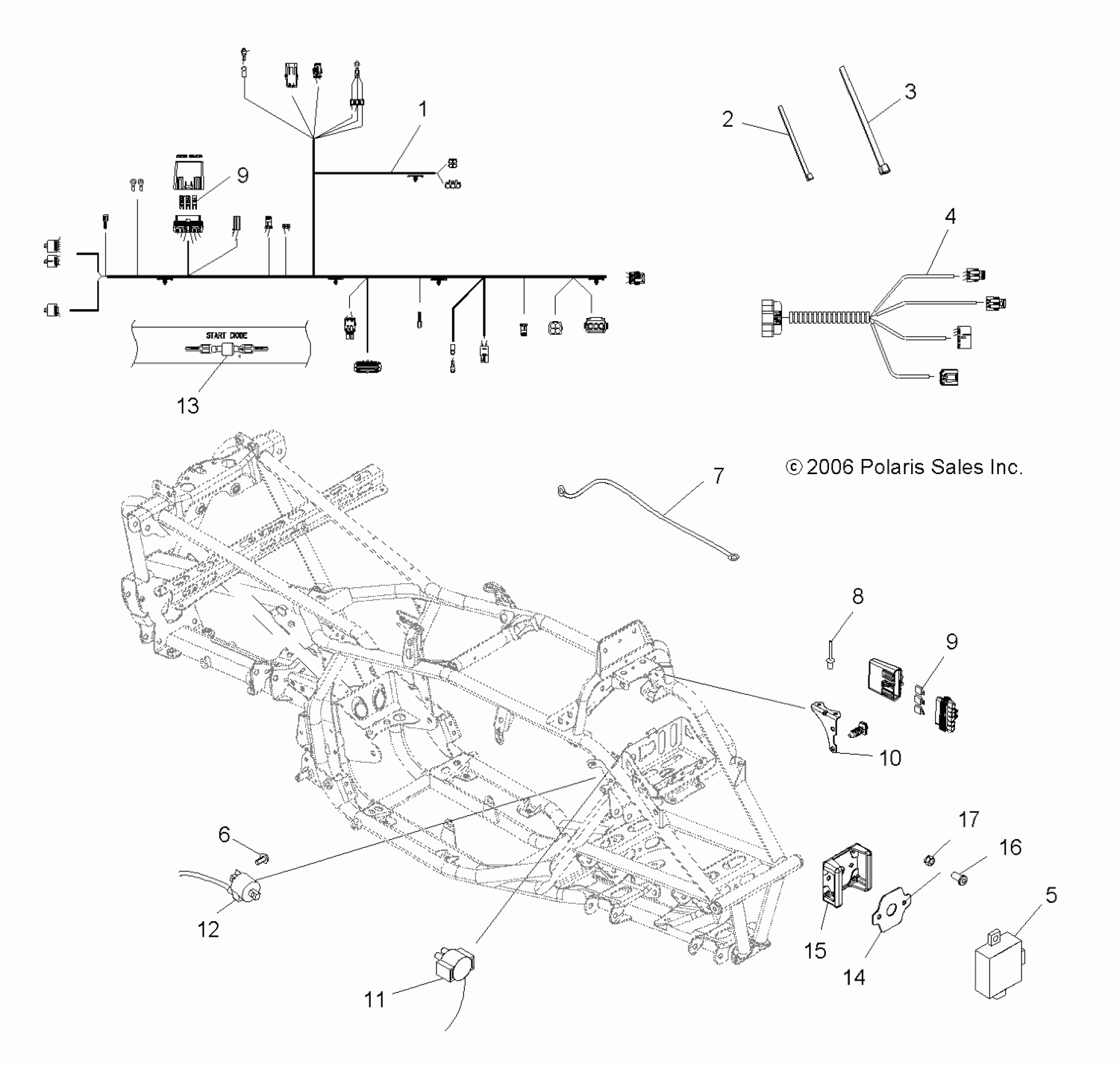

Polaris OUTLAW 525 - A07GP52AA/AB ELECTRICAL - A07GP52AA/AB (49ATVELECT07OUT525) Diagram

#

Description
Price

1

Kit, Fusible Link, .5MM

2202147

$79.99

1

Harness, Main [Incl. 9,13, Fuse Link Kit]

2410805

$579.99

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

4

Harness, Front Cab

2410832

$454.99

5

Controller, Ignition

4011668

Unavailable

6

Screw

7518196

$1.49

7

Cable, Ground, 13.75 Inch

4011170

$9.11

8

RIVET

7621472

$1.49

9

Breaker, Circuit, 15AMP

4011406

$63.99

9

Breaker, Circuit, 10AMP

4011371

$15.99

9

Breaker, Circuit, 5AMP

4011405

Unavailable

9

Breaker, Circuit, 15AMP

4011406

$63.99

9

Breaker, Circuit, 10AMP

4011371

$15.99

9

Breaker, Circuit, 5AMP

4011405

Unavailable

10

Bracket, Fuse Block

5249577

$6.63

11

Switch, Magnetic

4011304

Unavailable

12

Coil, Ignition

4011669

$109.99

13

Diode, Start

2410694

$11.32

14

Plate, CDI Mount

5250906

$3.51

15

Mount, CDI

5413234

$13.99

16

SCREW

7518656

$3.99

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
