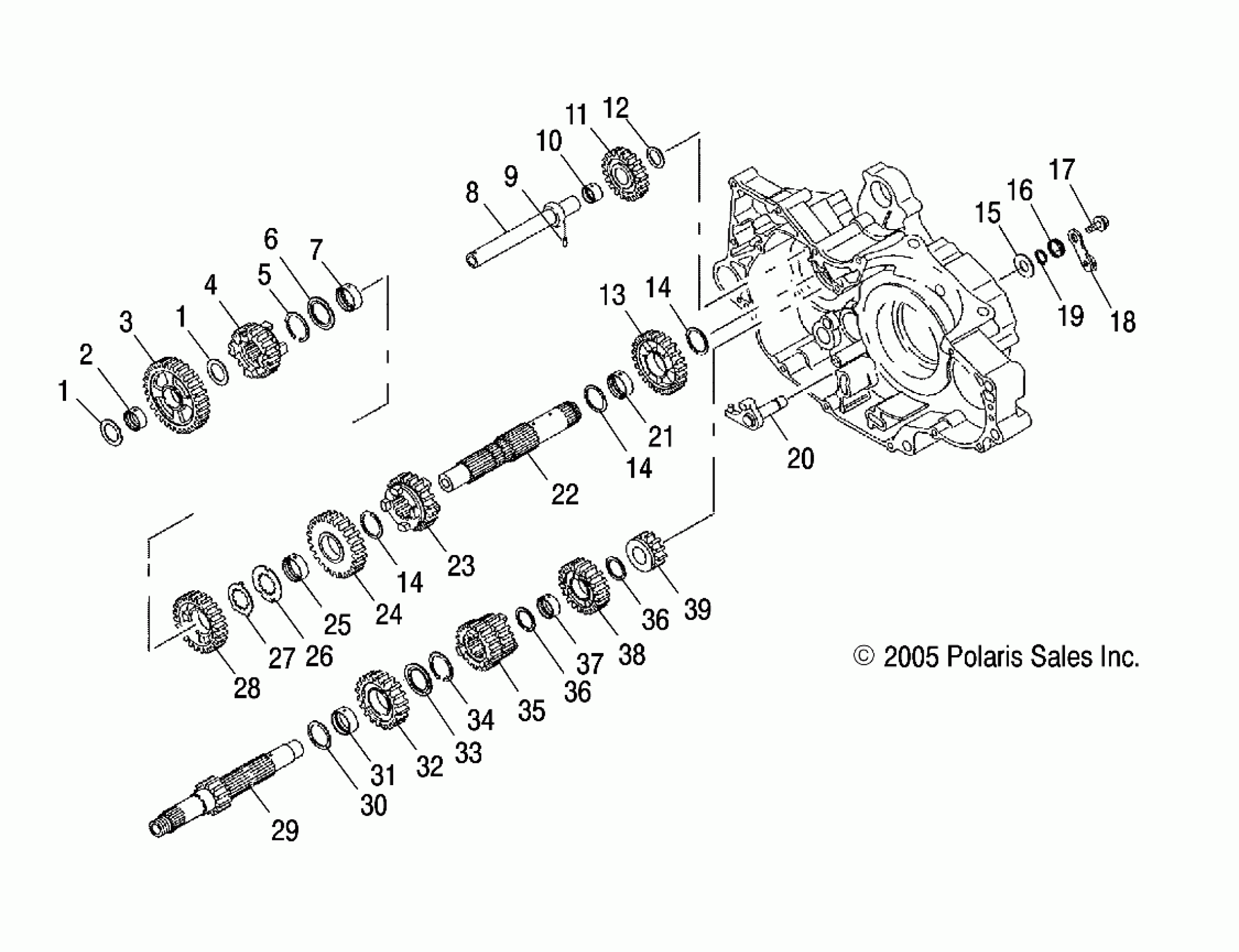

Polaris OUTLAW 500 - A07GP50AA/AB TRANSMISSION - A07GP50AA/AB (4999201899920189D06) Diagram

#

Description
Price

1

Washer

3088096

Unavailable

1

Washer

3088096

Unavailable

2

Collar

3088104

Unavailable

3

Gear, 1st Driven

3089631

Unavailable

4

Gear, 5th Driven

3089635

Unavailable

5

Clip

3088093

Unavailable

6

Washer, Spline

3088091

$1.43

7

Collar

3089636

$26.03

8

Shaft, Reverse [Incl. 9,10,11,12]

3089665

Unavailable

9

Pin, Dowel

3088191

Unavailable

10

Collar

3089668

Unavailable

11

Gear, Reverse Idle

3089667

Unavailable

12

Washer

3089666

$5.56

13

Gear, Reverse, Driven

3089652

$79.37

14

Washer

3089637

Unavailable

14

Washer

3089637

Unavailable

14

Washer

3089637

Unavailable

15

Washer

3089672

Unavailable

16

Spring, Reverse Arm

3089670

Unavailable

17

BOLT, FLANGE

3088135

Unavailable

18

Lever, Reverse Arm

3089671

Unavailable

19

Ring, Snap

3088033

$1.19

20

Arm, Reverse

3089669

Unavailable

21

Collar

3088106

Unavailable

22

Asm., Counter Shaft [Incl. 1-7,14,23,24,28]

3089629

Unavailable

22

Shaft, Counter

3089630

Unavailable

23

Gear, 4th Driven

3089634

Unavailable

24

Gear, 2nd Driven

3089632

Unavailable

25

Collar

3089653

$24.60

26

Washer

3088092

$6.98

27

Washer, Lock

3088095

Unavailable

28

Gear, 3rd Driven

3089633

Unavailable

29

Asm., Main Shaft [Incl. 14,31-38]

3089622

Unavailable

29

Shaft, Main

3089623

Unavailable

30

Washer

3088094

Unavailable

31

Collar

3089627

Unavailable

32

Gear, 5th Drive

3089626

$49.77

33

Washer, Spline

3088091

$1.43

34

Clip

3088093

Unavailable

35

Gear, 2nd, 3rd Drive

3089624

Unavailable

36

Washer

3089628

$7.94

36

Washer

3089628

$7.94

37

Collar

3089106

Unavailable

38

Gear, 4th Drive

3089625

Unavailable

39

Gear, Reverse, Drive

3089651

Unavailable
