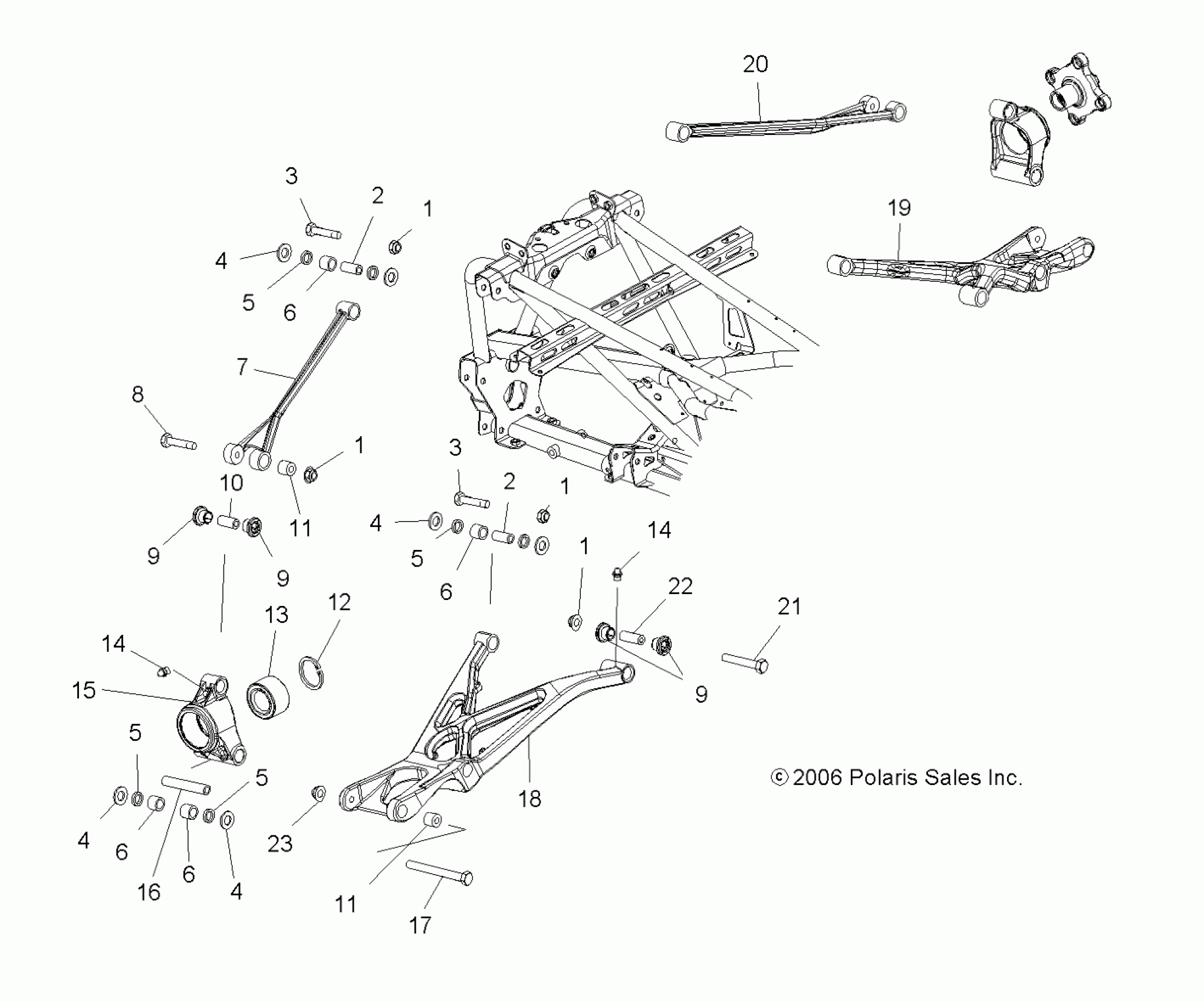

Polaris OUTLAW 500 - A07GP50AA/AB SUSPENSION, REAR - A07GP50AA/AB (49ATVSUSPRROUTLAW) Diagram

#

Description
Price

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

1

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

2

Shaft, Inner

5334816

$36.41

2

Shaft, Inner

5334816

$36.41

3

BOLT, FLANGE

7518563

$3.17

3

BOLT, FLANGE

7518563

$3.17

4

Washer, Thrust

7556356

Unavailable

4

Washer, Thrust

7556356

Unavailable

4

Washer, Thrust

7556356

Unavailable

4

Washer, Thrust

7556356

Unavailable

5

Seal

3610125

$12.34

5

Seal

3610125

$12.34

5

Seal

3610125

$12.34

5

Seal

3610125

$12.34

6

Bearing, Needle

3514542

$15.87

6

Bearing, Needle

3514542

$15.87

6

Bearing, Needle

3514542

$15.87

6

Bearing, Needle

3514542

$15.87

7

Asm., Control Arm, Upper, RH [Incl. 2,4,5,6]

1542190

Unavailable

8

Bolt, Flange

7518560

$9.52

9

BUSHING, CONTROL ARM

5436798

$2.38

9

BUSHING, CONTROL ARM

5436798

$2.38

9

BUSHING, CONTROL ARM

5436798

$2.38

10

Shaft, Control Arm, Upper

5334817

Unavailable

11

Sleeve, Float

5334894

$129.99

11

Sleeve, Float

5334894

$129.99

12

RING, RETAINING

7710507

$2.38

13

Bearing, Hub

3514342

$39.68

14

Fitting, Lubrication

7080433

$1.19

14

Fitting, Lubrication

7080433

$1.19

15

Carrier, Bearing

5135101

$103.17

16

Shaft, Bearing Carrier

5334820

$32.37

17

Bolt, Flange

7518562

$7.14

18

Asm., Control Arm, Lower, RH [Incl. 2,4,5,6,14]

1542192

$275.22

19

Asm., Control Arm, Lower, LH [Incl. 2,4,5,6,14]

1542191

$275.22

20

Asm., Control Arm, Upper, LH [Incl. 2,4,5,6]

1542189

Unavailable

21

Bolt, Flange

7518561

$7.14

22

Shaft

5334896

Unavailable

23

Nut, Flange

7547362

$3.97
