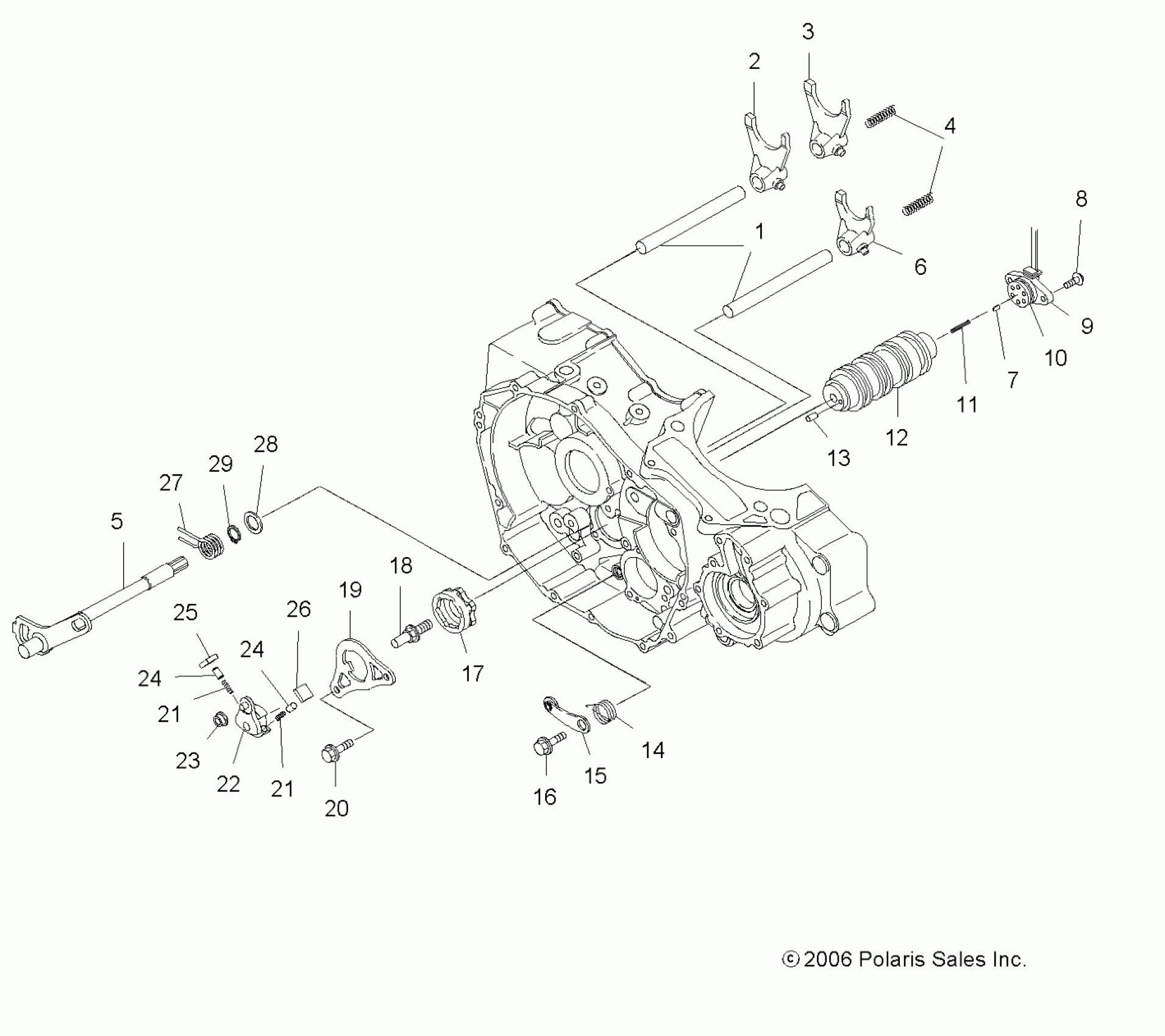

Polaris OUTLAW 500 - A07GP50AA/AB SHIFTING - A07GP50AA/AB (49ATVSHIFTOUTLAW) Diagram

#

Description
Price

1

Shaft, Fork

3089650

$26.98

2

Fork, Shift, Right

3089645

Unavailable

3

Fork, Shift, Left

3089644

Unavailable

4

Spring, Forkshaft

3089662

$4.03

5

Asm., Shaft, Shift

3089648

Unavailable

6

Fork, Shift, Main

3089643

$86.51

7

Point, Neutral

3088115

Unavailable

8

Asm., Screw and Washer

3083783

$2.38

9

Asm., Switch, Position

3089647

Unavailable

10

O-Ring

3088123

$2.14

11

Spring, Point

3088116

Unavailable

12

Drum, Shift

3089787

Unavailable

13

Pin, Dowel

3088191

Unavailable

14

Spring, Stopper

3089641

$12.39

15

Asm., Arm, Stopper

3089640

$38.41

16

Bolt, Stopper

3088117

$3.02

17

Cam, Shift

3089639

$81.75

18

Pin, Shifter

3089642

$14.92

19

Plate, Guide

3089660

$19.84

20

Bolt, Flange

3089661

Unavailable

21

Spring, Plunger

3089659

$1.35

21

Spring, Plunger

3089659

$1.35

22

Shifter, Drum

3089654

$128.99

23

Collar, Shifter

3089655

Unavailable

24

Plunger, Pawl

3089658

$10.63

24

Plunger, Pawl

3089658

$10.63

25

Pawl, Ratcher A

3089656

$15.56

26

Pawl, Ratcher B

3089657

$15.56

27

Spring, Return

3089649

$6.59

28

Washer

3089664

$5.40

29

Ring, Snap

3089663

$7.94
