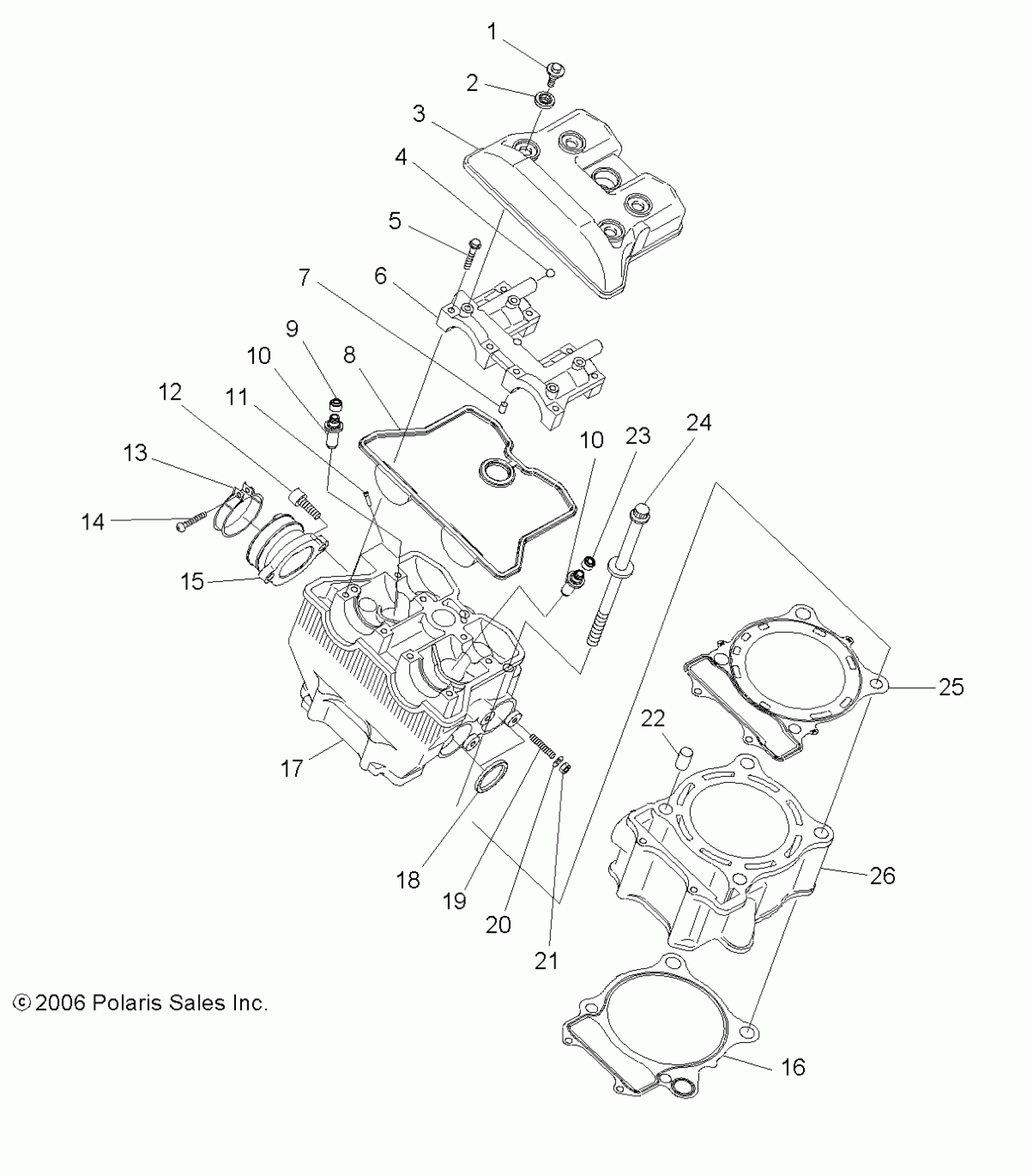

Polaris OUTLAW 500 - A07GP50AA/AB ENGINE, CYLINDER - A07GP50AA/AB (49ATVCYLINDEROUTLAW) Diagram

#

Description
Price

1

Bolt

3087954

Unavailable

2

Mount, Rubber

3087951

Unavailable

3

Cover, Head

3087949

Unavailable

4

BALL, STEEL

3085024

$5.59

5

Bolt, Flange

3089492

Unavailable

6

SUPPORT, CAM [Incl. 7]

-------

Unavailable

7

Knock, Pipe

3087275

Unavailable

8

O-Ring, Head Cover

3089441

$39.99

9

Seal, Intake Valve

3087947

$13.75

10

Valve, Guide

3087944

Unavailable

10

Valve, Guide

3087944

Unavailable

11

PIPE, PULSE

3083798

$9.52

12

BOLT, SOCKET HEAD

3081330

$3.99

13

Asm., Band Adapter [Incl. 14]

3087956

$9.99

14

Screw, Pan Head

3081497

$2.39

15

Asm., Adapter

3087955

Unavailable

16

Gasket, Cylinder

3089519

$24.27

17

Asm., Cylinder Head [Incl. 4-5,7,9-11,19,23]

3089880

Unavailable

18

ASM., GASKET, EXHAUST

3087957

$27.99

19

Stud

3085326

Unavailable

20

Washer, Spring

3080530

$3.19

21

Nut

3087199

Unavailable

22

KNOCK, PIPE

3087266

Unavailable

23

Seal, Valve

3087946

$13.59

24

Asm., Bolt and Washer

3087952

Unavailable

25

Asm., Gasket, Head

3087948

$69.99

26

Cylinder

3089973

Unavailable
