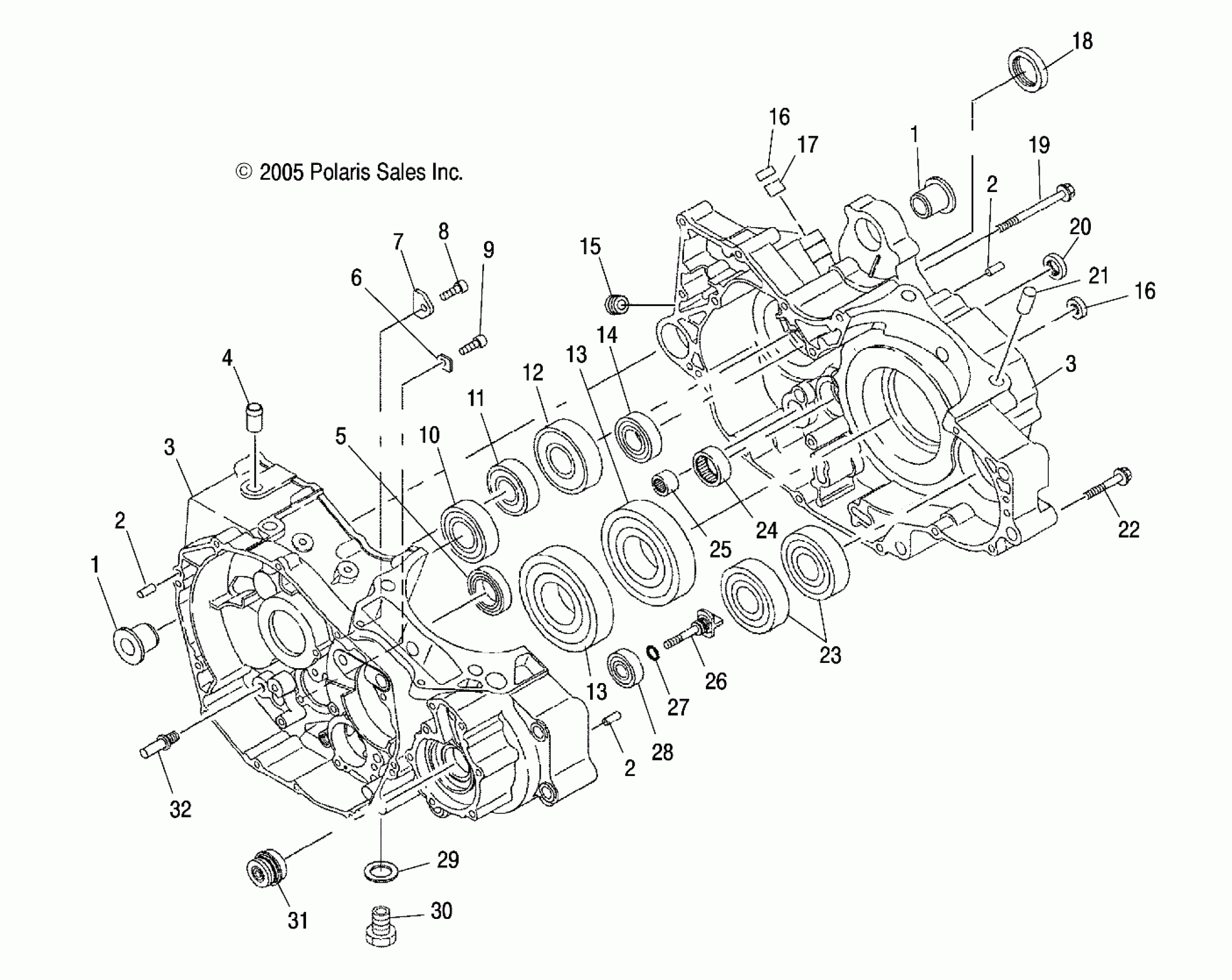

Polaris OUTLAW 500 - A07GP50AA/AB ENGINE, CRANKCASE - A07GP50AA/AB (4999201899920189C07) Diagram

#

Description
Price

1

Collar

3087930

$27.62

1

Collar

3087930

$27.62

2

PIN, DOWEL

3086838

$7.19

2

PIN, DOWEL

3086838

$7.19

2

PIN, DOWEL

3086838

$7.19

3

Asm., Crankcase [Incl. all less 6-9,23]

3089679

$911.39

3

Asm., Crankcase [Incl. all less 6-9,23]

3089679

$911.39

4

Breather, Pipe, Air

3085525

Unavailable

5

Bearing, Ball

3087934

Unavailable

6

Plate, Stopper B

3089585

Unavailable

7

Plate, Stopper

3088138

$3.35

8

Bolt, Socket Head

3089439

$4.79

9

Bolt

3089586

$1.49

10

Bearing, Ball

3087935

Unavailable

11

BEARING, BALL

3084834

$23.99

12

Bearing, Ball

3087929

Unavailable

13

Bearing, Ball

3089581

Unavailable

13

Bearing, Ball

3089581

Unavailable

14

Bearing, Ball

3087928

Unavailable

15

PLUG, BLIND

3084862

Unavailable

16

Seal, Oil

3087926

Unavailable

16

Seal, Oil

3087926

Unavailable

17

Bearing, Release

3087925

$9.52

18

Seal, Oil

3086510

$40.46

19

Bolt, Flange

3089493

Unavailable

20

Seal, Oil

3087927

Unavailable

21

KNOCK, PIPE

3087266

Unavailable

22

Bolt, Flange

3089492

Unavailable

23

Bearing, Ball

3089582

Unavailable

24

Bearing, Needle

3089584

Unavailable

25

Bearing, Needle

3089440

$18.39

26

Asm., Shaft, Water Pump [Incl. 27,28]

3089583

Unavailable

27

O-Ring

3087938

Unavailable

28

Bearing, Ball

3087937

Unavailable

29

GASKET

3082956

$4.84

30

Plug

3089438

Unavailable

31

Asm., Seal, Mechanical

3084837

$68.79

32

Pin, Stopper

3086195

$11.43
