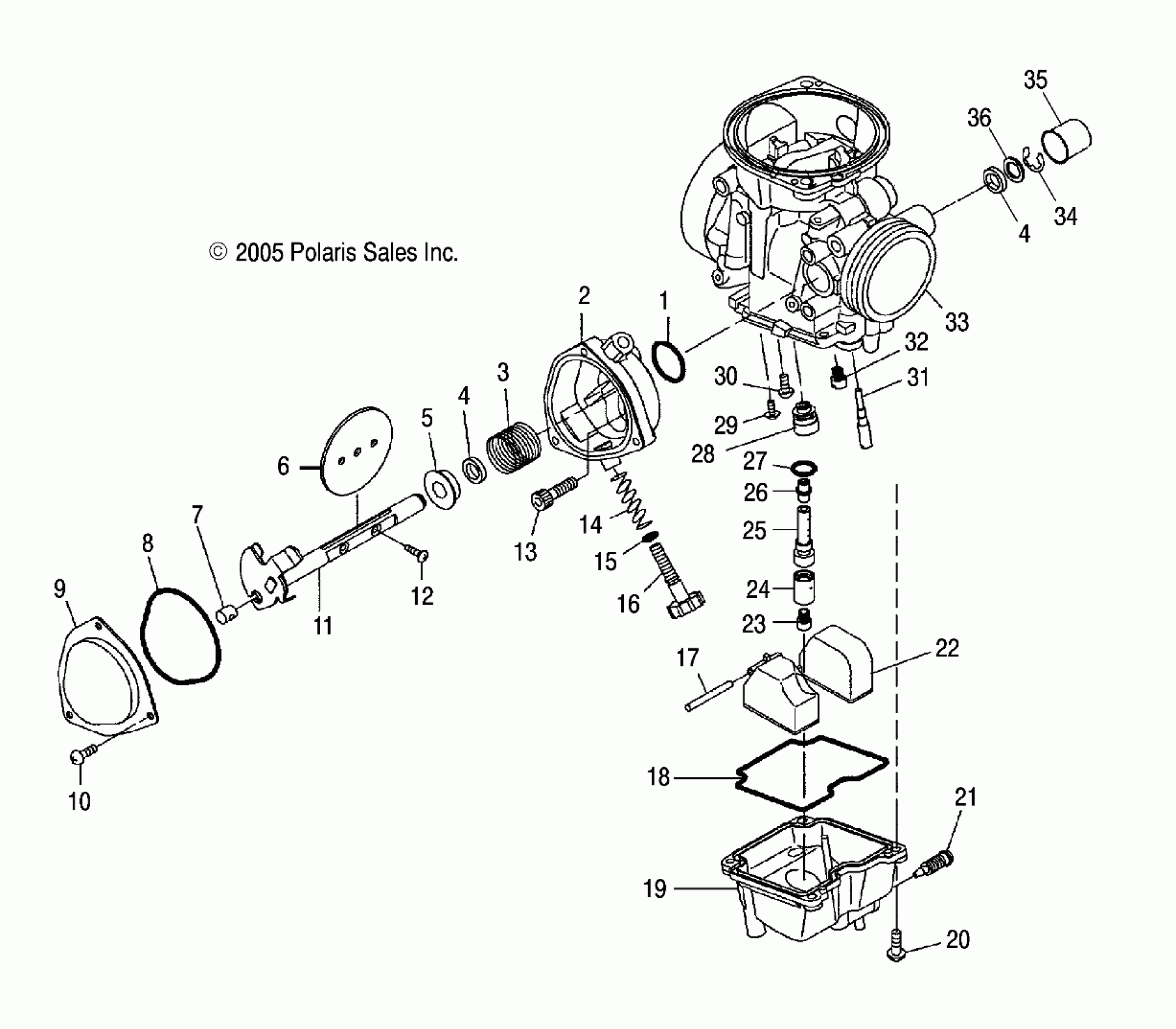

Polaris OUTLAW 500 - A07GP50AA/AB ENGINE, CARBURETOR, LOWER - A07GP50AA/AB (4999201899920189C11) Diagram

#

Description
Price

1

O-RING

3130928

$6.46

2

Case

3131502

Unavailable

3

SPRING

3130927

$6.99

4

SEAL

3130515

$12.13

4

SEAL

3130515

$12.13

5

RING

3131679

$1.99

6

Valve, Throttle, 105

3131476

Unavailable

7

GUIDE, CABLE

3130543

$32.37

8

O-RING

3130929

$14.24

9

COVER

3130930

$36.41

10

Screw

3131512

$3.97

11

A-Shaft, Throttle

3131500

Unavailable

12

SCREW

3131475

$3.97

13

Bolt

3131503

Unavailable

14

Spring

3130010

$9.70

15

O-RING

3131501

$2.83

16

Screw, Adjust

3131511

Unavailable

17

Pin

3130043

Unavailable

18

O-Ring

3131494

$24.27

19

Body, Float

3131493

Unavailable

20

Screw

3131509

Unavailable

21

SCREW

3130521

$10.32

22

A-Float

3131492

Unavailable

23

Jet, Main

3131524

Unavailable

24

Ring

3131490

Unavailable

25

Holder, Jet

3131491

Unavailable

26

Jet, Needle

3131496

Unavailable

27

O-Ring

3140053

$5.65

28

Valve, Needle

3131575

$72.84

29

Screw

3131057

Unavailable

30

SCREW

3130924

$1.59

31

Jet, Pilot, 45

3131023

$24.27

32

Jet, 42.5

3131488

Unavailable

33

Asm., Carburetor [Incl. All]

3131651

Unavailable

34

E-RING

3130518

$1.60

35

CAP

3130519

$10.51

36

PACKING

----

Unavailable
