Description

Price

-

Asm., Clutch, Multi [Incl. 6-8,13-22,25,26]

3089616

$704.99

1

Plate, Release

3089621

$7.43

2

Spring, Release

3088079

Unavailable

3

Asm., Shaft, Release

3088078

$73.81

4

BOLT, FLANGE

3084877

Unavailable

5

Collar, Distance

3089619

$32.79

6

Asm., Clutch, Outer

3089617

Unavailable

7

Washer, Thrust

3088186

Unavailable

8

Asm., Center, Clutch

3089886

Unavailable

9

Pusher

3088081

$37.91

10

Rod, Push

3089620

Unavailable

11

Nut, Lock

3086285

Unavailable

12

Washer, Lock

3086286

Unavailable

13

Plate, Clutch

3088184

$43.99

14

Disk B, Clutch Friction

3088185

Unavailable

15

Disk A, Clutch Friction

3089618

$59.99

16

Gasket, Clutch Cover

3089615

Unavailable

17

Asm., Cover, Clutch [Incl. 18,20,21]

3089614

$434.99

18

Asm., Pipe

3085850

$51.99

19

BOLT, FLANGE

3084874

Unavailable

20

Seal, Oil, Crank

3088072

$27.99

21

Ring, Snap, Inner

3088073

Unavailable

22

Bolt

3088175

Unavailable

23

Washer, Clutch Spring

3088176

$2.99

24

Spring, Clutch

3088177

$11.32

25

Disk, Clutch Pressure

3088178

Unavailable

26

Bearing, Ball

3088179

$15.99

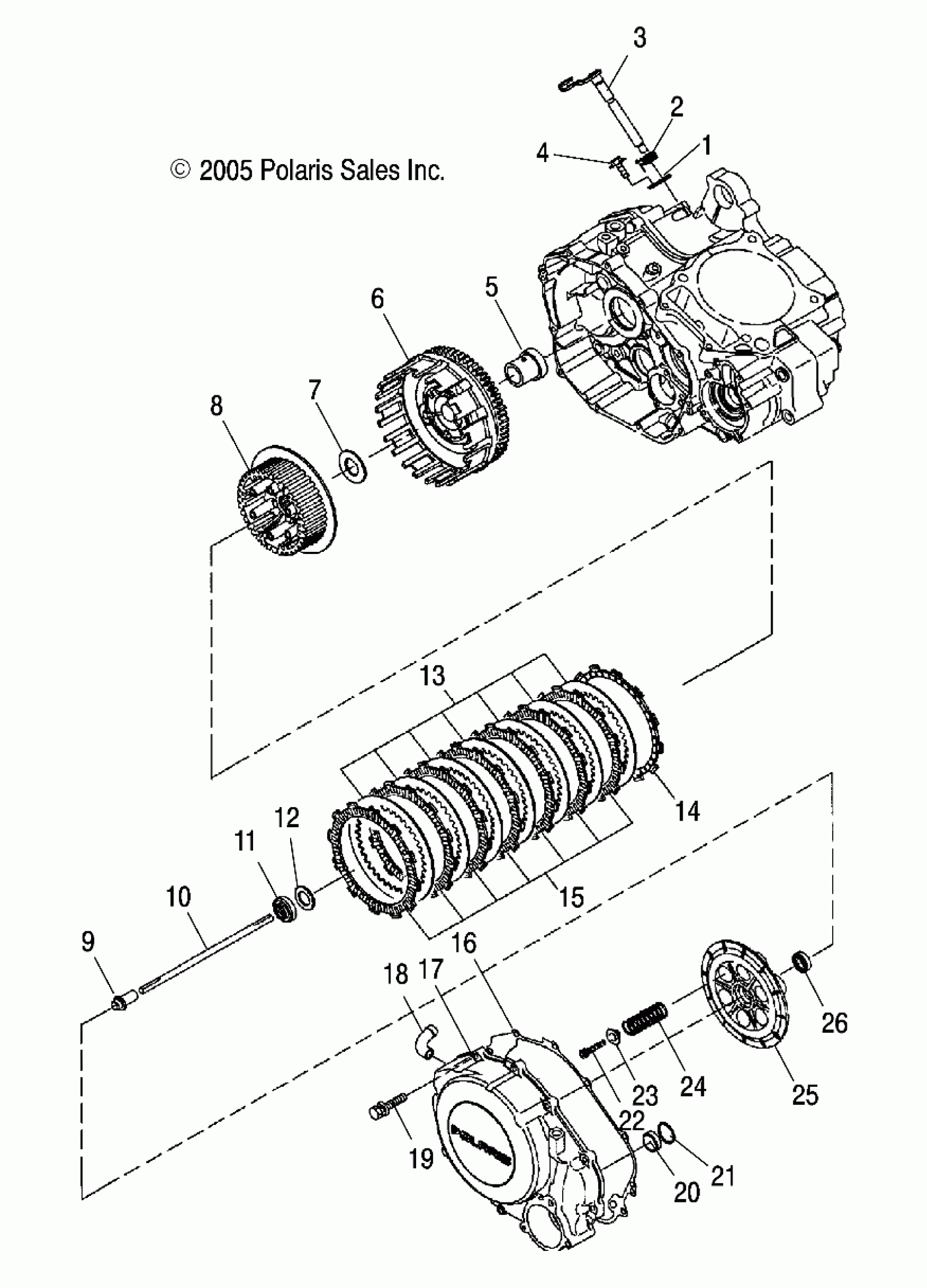

Polaris OUTLAW 500 - A07GP50AA/AB CLUTCH - A07GP50AA/AB (4999201899920189D08) Diagram

Asm., Clutch, Multi [Incl. 6-8,13-22,25,26]

Plate, Release

Spring, Release

Asm., Shaft, Release

BOLT, FLANGE

Collar, Distance

Asm., Clutch, Outer

Washer, Thrust

Asm., Center, Clutch

Pusher

Rod, Push

Nut, Lock

Washer, Lock

Plate, Clutch

Disk B, Clutch Friction

Disk A, Clutch Friction

Gasket, Clutch Cover

Asm., Cover, Clutch [Incl. 18,20,21]

Asm., Pipe

BOLT, FLANGE

Seal, Oil, Crank

Ring, Snap, Inner

Bolt

Washer, Clutch Spring

Spring, Clutch

Disk, Clutch Pressure

Bearing, Ball
