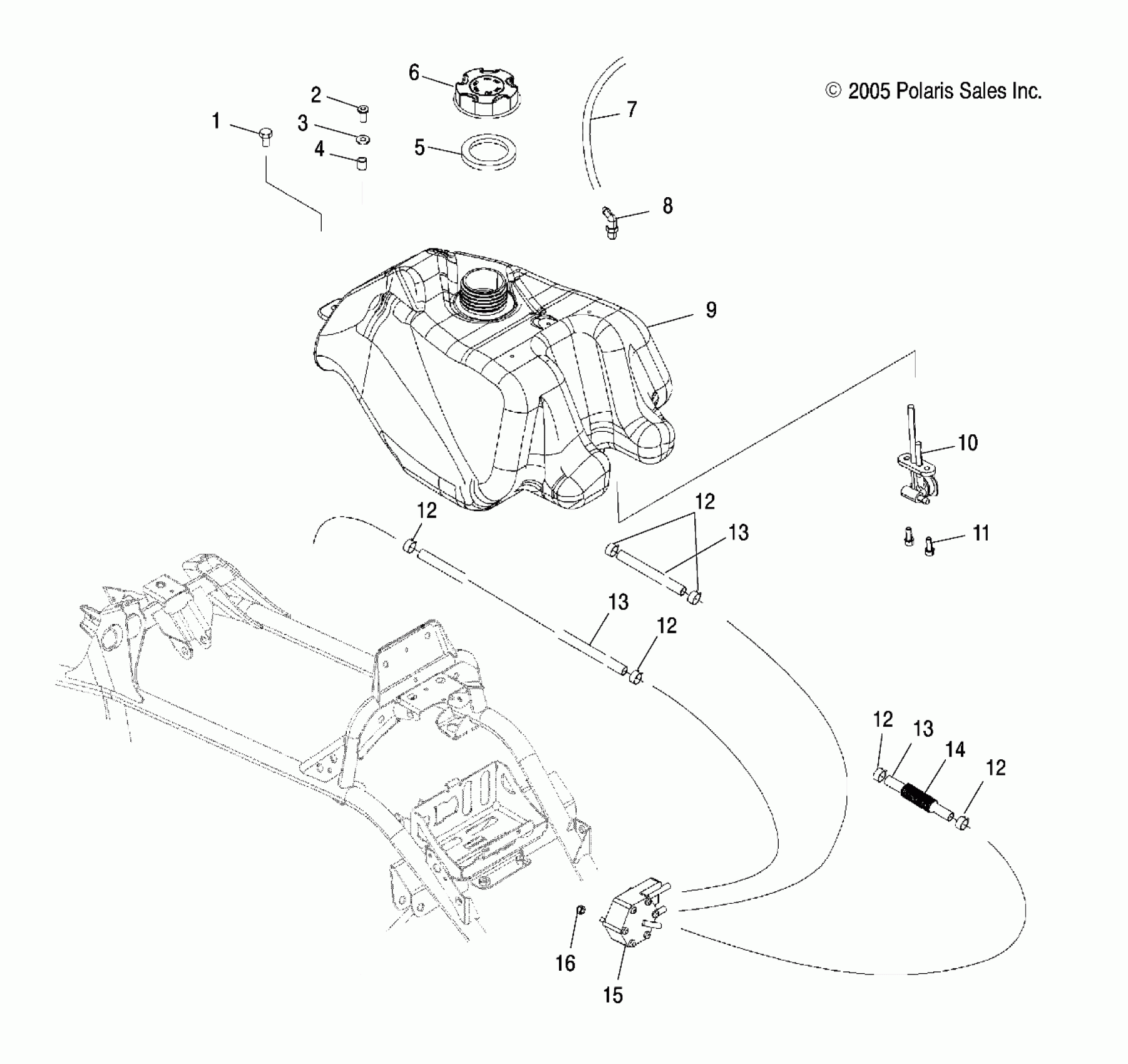

Polaris OUTLAW 500 - A06GP50AA FUEL TANK - A06GP50AA (4999201899920189B01) Diagram

#

Description
Price

1

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

2

Bolt

7518616

$1.49

3

Washer, Flat

7555859

$1.49

4

Spacer

5335063

Unavailable

5

GASKET

5812123

$5.65

6

Cap, Fuel Tank [Incl. 5]

5433687

$20.22

7

LINE, FUEL

8360009-600

$40.46

8

Tank, Vent

5431053

$19.99

9

Asm., Fuel Tank [Incl. 10]

2520509

Unavailable

10

Valve, Fuel, On/Off/Reserve

7052331

$35.99

11

Screw

7515136

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

13

Hose, Fuel

8450103

Unavailable

13

Hose, Fuel

8450103

Unavailable

13

Hose, Fuel

8450103

Unavailable

14

TUBING, CONVOLUTED

8360052-305

$28.32

15

Asm., Pump, Fuel

3088070

$77.21

16

NUT-M5X.8,HX NYL-Y

7546601

$1.49
