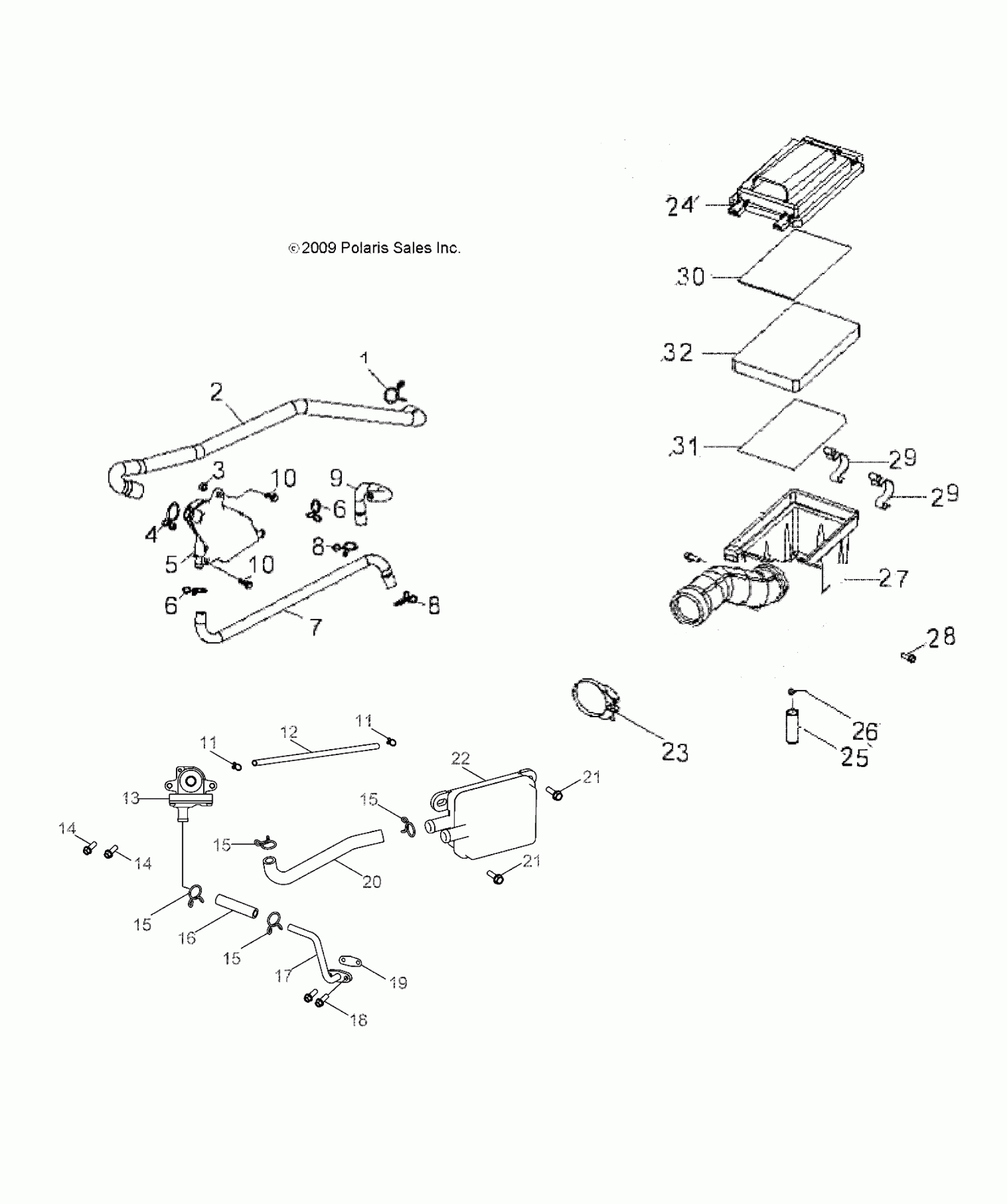

Polaris OUTLAW 50 (R05) - A18YAK05B4/B6/A4/A6 ENGINE, AIR INTAKE SYSTEM - A18YAK05B4/B6/A4/A6 (A00025) Diagram

#

Description
Price

1

Clip

0453932

$4.79

2

Tube, Breather, Ventilated

0453933

$31.99

3

Nut, Flange

0450150

$1.49

4

Clip, Retaining

0453187

Unavailable

5

SEPARATOR, OIL [INCL. 25]

0453184

$63.99

6

Clip

0453934

$3.99

6

Clip

0453934

$3.99

7

Tube, Oil

0453935

$10.39

8

Clip

0453936

$3.99

8

Clip

0453936

$3.99

9

Tube, Oil

0454000

$10.39

10

BOLT

0454011

$3.99

10

BOLT

0454011

$3.99

11

CLAMP

0453944

$3.99

11

CLAMP

0453944

$3.99

12

HOSE

0454927

$5.59

13

VALVE, INTAKE, DUAL

0454398

$135.99

14

BOLT, FRAME

0453517

$3.99

14

BOLT, FRAME

0453517

$3.99

15

Clip

0452795

$3.99

15

Clip

0452795

$3.99

15

Clip

0452795

$3.99

15

Clip

0452795

$3.99

16

HOSE

0454928

$11.19

17

TUBE, INTAKE, DUAL

0454938

$23.99

18

BOLT, HEX, FLANGE

0452413

$3.99

19

GASKET-AIR INJECTION

0455377

$2.79

20

HOSE, FORMED

0454941

$39.99

21

BOLT

0454785

$3.99

21

BOLT

0454785

$3.99

22

ASM., FILTER

0454375

$23.99

23

Clamp

0452562

$7.99

24

COVER

0453908

$35.99

25

Hose, Drain

0453938

$4.79

26

Clip

0453932

$4.79

27

Asm., Air Box w/Boot

0453943

$43.99

28

Bolt

0453939

$3.99

28

Bolt

0453939

$3.99

29

Clip

0453940

$7.19

29

Clip

0453940

$7.19

30

Gasket

0453907

$3.99

31

Screen

0453905

$19.99

32

Filter, Air Box

0453906

$15.19
