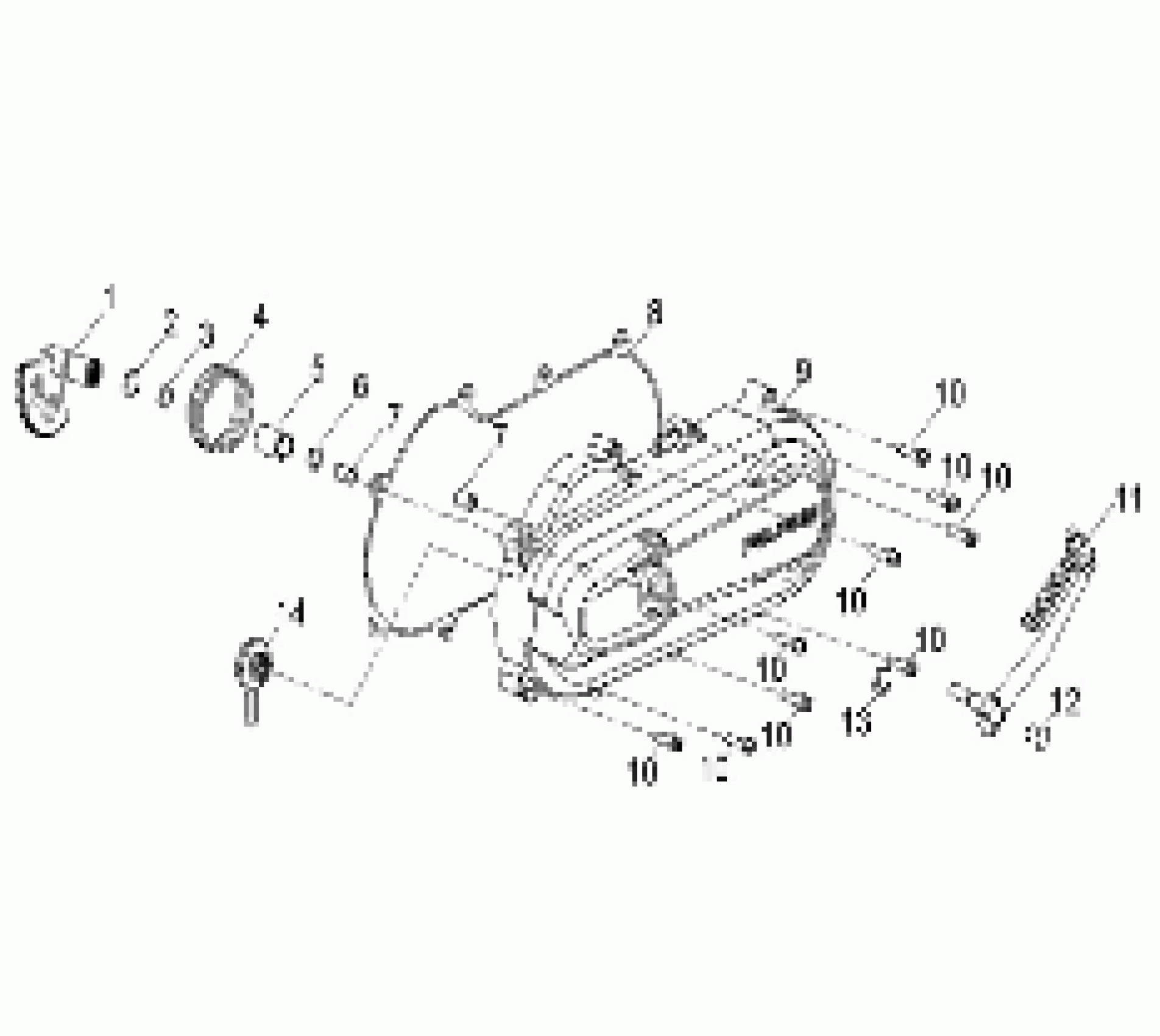

Polaris OUTLAW 50 (R03) - A19YAK05B7/B6 ENGINE, CLUTCH COVER and KICK START - A19YAK05B7/B6 (49ATVCRANKCASECVRLH09OUT50) Diagram

#

Description
Price

1

ASM., SHAFT, KICK START

0453835

$63.99

2

CLIP, SPRING

0453836

$3.99

3

O-RING

0453837

$1.59

4

SPRING

0450184

$9.59

5

BUSHING, KICK START

0453469

$4.79

6

WASHER

0453838

$5.59

7

PIN, DOWEL

0452342

$3.99

7

PIN, DOWEL

0452342

$3.99

8

GASKET-CLUTCH COVER

0455332

Unavailable

9

COVER, CLUTCH

0453839

$179.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

10

BOLT

0452331

$3.99

11

ASM., KICK START

0453840

$67.99

12

COVER, SPINDLE, KICK START

0453470

$7.19

13

CLIP, RETAINER

0452339

$3.99

14

ASM., KICK PINION

0451745

$67.99
