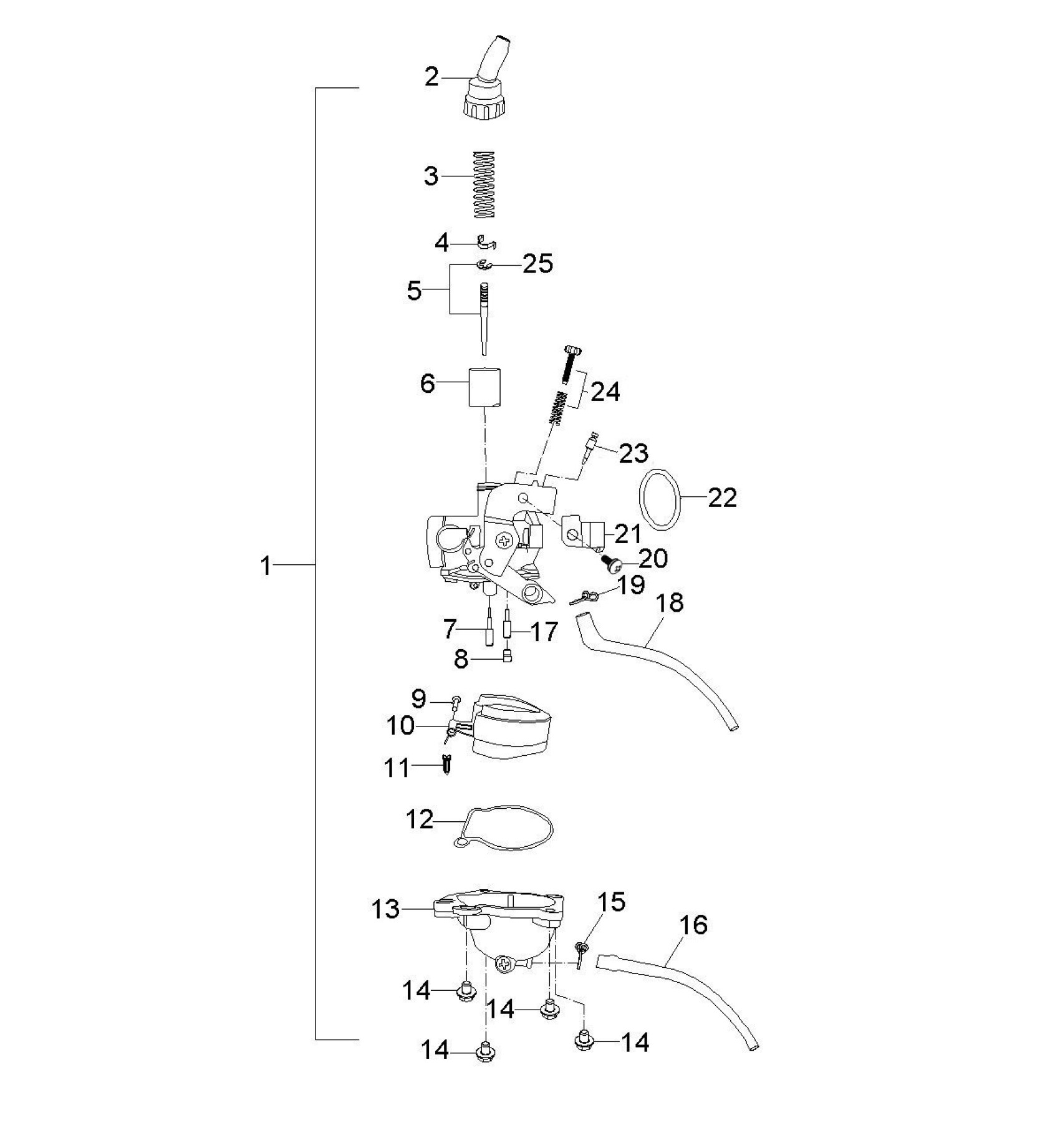

Polaris OUTLAW 50 (R03) - A19YAK05B7/B6 ENGINE, CARBURETOR - A19YAK05B7/B6 (A00085) Diagram

#

Description
Price

1

ASM., CARBURETOR [INCL. ALL]

0455014

$464.75

2

ASM., CAP

0453948

$64.75

3

SPRING

0453949

$10.51

4

CLIP, NEEDLE

0453950

$5.65

5

ASM., JET NEEDLE [INCL. 25]

0453951

$44.43

6

VALVE, THROTTLE

0453952

$84.99

7

JET, PILOT, 15

0454956

Unavailable

8

JET, MAIN

0453963

$39.99

9

PIN, FLOAT

0453961

$7.98

10

FLOAT

0453962

Unavailable

11

VALVE, FLOAT

0453960

$80.74

12

GASKET, BOWL

0453959

$8.08

13

BOWL, FLOAT

0453958

Unavailable

14

SCREW

0453629

$6.46

14

SCREW

0453629

$6.46

14

SCREW

0453629

$6.46

14

SCREW

0453629

$6.46

15

CLIP

0452814

$3.97

16

TUBE, DRAIN

0453957

$28.32

17

VALVE, NEEDLE

0453964

$39.99

18

HOSE, FUEL

0453955

$36.41

19

CLAMP, HOSE

0453953

$6.35

20

SCREW

0453968

$4.76

21

CLIP, BRACKET

0453967

$17.99

22

O-RING

0453626

$32.37

23

SCREW, AIR, CARB

0455015

$14.83

24

ASM-SCREW,CARB

0453956

$31.75

25

E-CLIP, NEEDLE

0454267

$5.65
