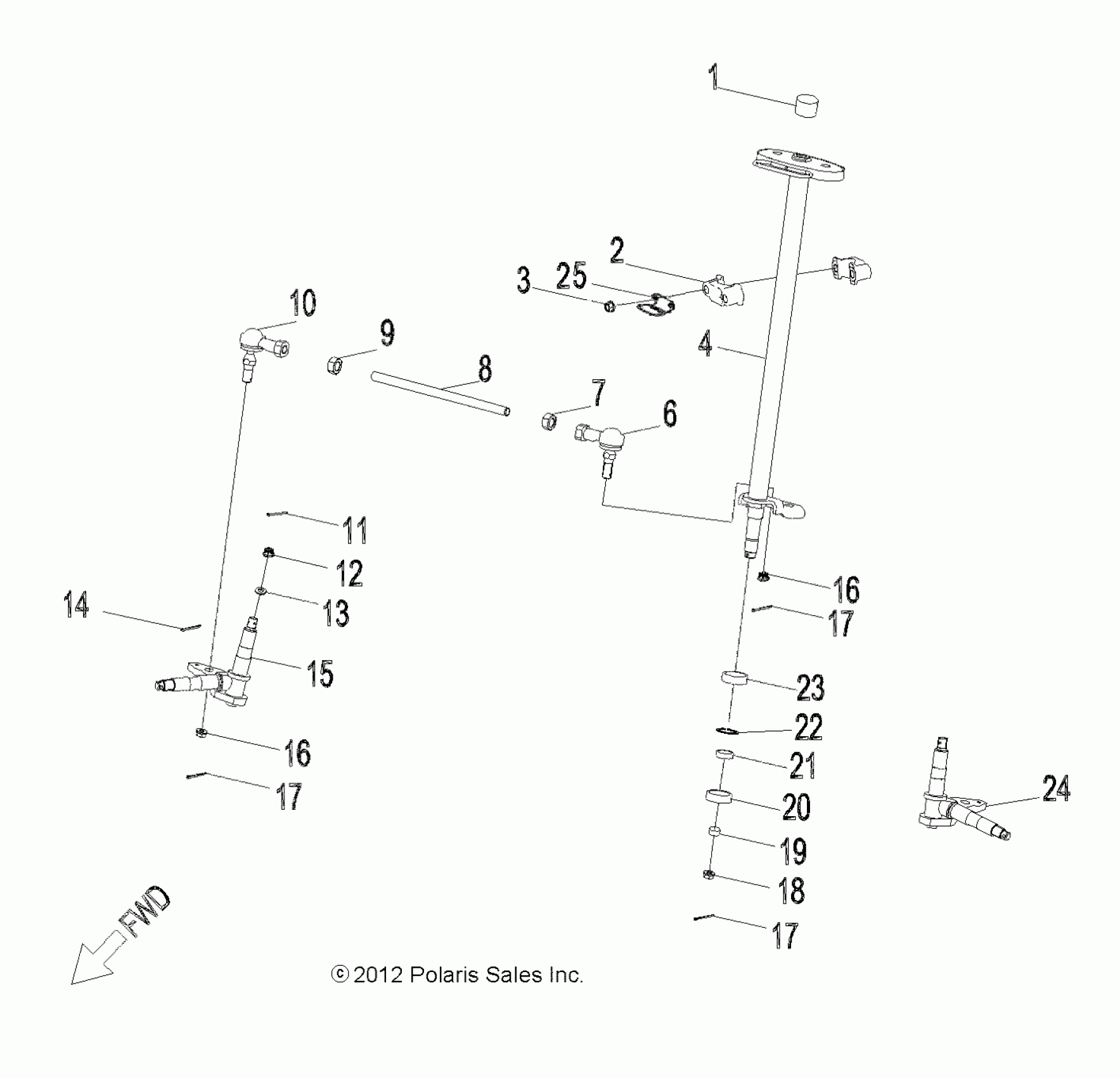

Polaris OUTLAW 50 - A14KA05AD/AF STEERING, STEERING POST and TIE ROD ASM. - A14KA05AD/AF (49ATVSTEERING13OUT50) Diagram

#

Description
Price

1

SLEEVE, STEERING

0450499

$11.19

2

HOLDER, STEERING

0450505

$19.99

3

NUT

0450268

$1.49

4

POST, STEERING, BLACK

0451797-067

$83.99

6

INNER ROD END (FEMALE)

0454746

$63.99

7

NUT, TIE ROD, LH

0454749

$4.79

8

Tie Rod (FOR FEMALE TIE ROD ENDS)

0454748

$27.99

9

NUT, TIE ROD, RH

0454750

$4.79

10

OUTER ROD END (FEMALE)

0454747

$63.99

11

PIN, COTTER

0450507

$3.19

12

NUT

0450502

$9.59

13

WASHER

0453513

$4.79

14

PIN, COTTER

0450395

$3.19

15

KNUCKLE, LH

0450916

$111.99

16

NUT, LOCK

0450276

$3.99

16

NUT, LOCK

0450276

$3.99

17

PIN, COTTER

0450719

Unavailable

17

PIN, COTTER

0450719

Unavailable

17

PIN, COTTER

0450719

Unavailable

18

Nut, Lock

0450878

$10.39

19

SPACER, INNER

0450390

$4.79

20

SEAL, OIL

0450389

$11.19

21

BEARING, BALL

0450493

$31.99

22

CIRCLIP

0450161

$5.59

23

SEAL, OIL

0450491

$11.99

24

KNUCKLE, RH

0450917

$111.99

25

BRACKET, GUIDE, WIRE

0454879

Unavailable
