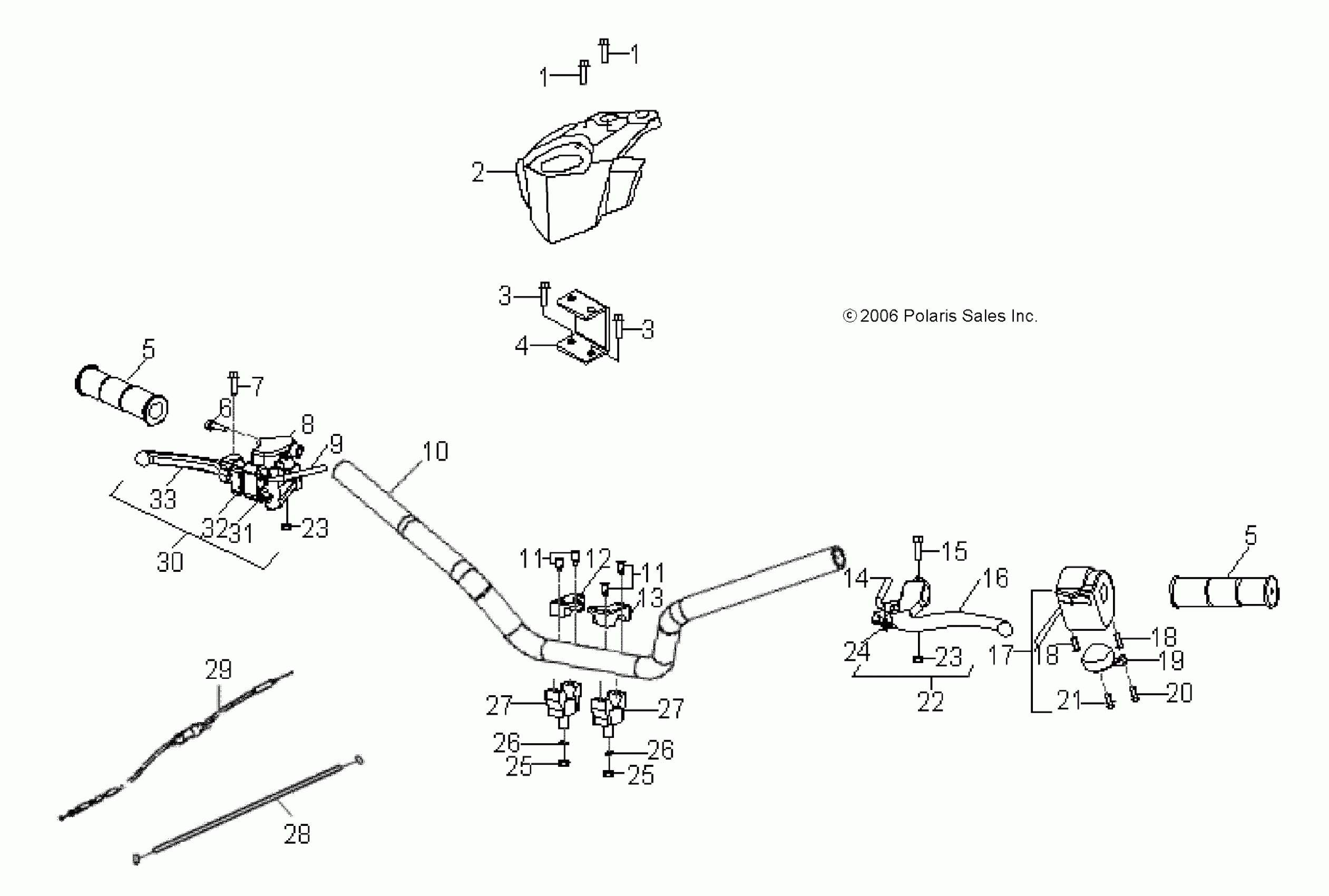

Polaris OUTLAW 50 - A14KA05AD/AF STEERING, HANDLEBAR - A14KA05AD/AF (49ATVHANDLEBAR07PRED50) Diagram

#

Description
Price

1

Bolt

0450667

$5.56

1

Bolt

0450667

$5.56

2

POD, HEADLIGHT, BLACK [AD]

0454868-070

$52.60

2

POD, HEADLIGHT, VOODOO BLUE [AF]

0454868-619

$44.51

3

Bolt

0450701

$1.19

3

Bolt

0450701

$1.19

4

BRACKET, COVER

0451790

$28.32

5

GRIP, HANDLEBAR

0451333

$28.32

5

GRIP, HANDLEBAR

0451333

$28.32

6

BOLT

0451788

$3.17

7

BOLT, BRAKE LEVER, RH

0450806

$2.38

8

MOUNT, LEVER, BRAKE, RH

0453721

$169.99

9

WIRE, BRAKE SWITCH

0453736

$48.56

10

HANDLEBAR, BLACK

0453882-067

$56.65

11

BOLT

0450148

$3.97

11

BOLT

0450148

$3.97

12

COVER, CLAMP, RH

0450461

$27.78

13

COVER, CLAMP, LH

0450460

$35.71

14

SENSOR, BRAKE

0453815

$48.56

15

BOLT

0450807

$7.14

16

LEVER, BRAKE, SIDE

0450690

$28.32

17

ASM., SWITCH, LH [INCL. 18-21]

0454913

$159.99

18

SCREW

0451148

$3.17

18

SCREW

0451148

$3.17

19

ASM., MANUAL CHOKE

0453566

$44.51

20

BOLT

0453708

$3.97

21

BOLT

0451149

$3.97

22

ASM., LEVER, BRAKE, LH [INCL. 14-16,23,24]

0453916

$64.99

23

NUT

0450808

$2.38

23

NUT

0450808

$2.38

24

LOCK, HAND BRAKE

0450688

$10.51

25

NUT

0450276

$3.97

25

NUT

0450276

$3.97

26

WASHER

0450279

$3.17

26

WASHER

0450279

$3.17

27

CLAMP, SADDLE

0450459

$39.68

27

CLAMP, SADDLE

0450459

$39.68

28

CABLE, CHOKE

0453883

$44.51

29

CABLE, THROTTLE

0453884

$52.60

30

ASM., LEVER, BRAKE, RH [INCL. 6-9,23,31-33]

0453917

$164.99

31

ARM, THROTTLE

0452202

$24.27

32

BRACKET, BRAKE CABLE

0450994

$32.37

33

LEVER, BRAKE, SIDE, RH

0450691

$28.32
