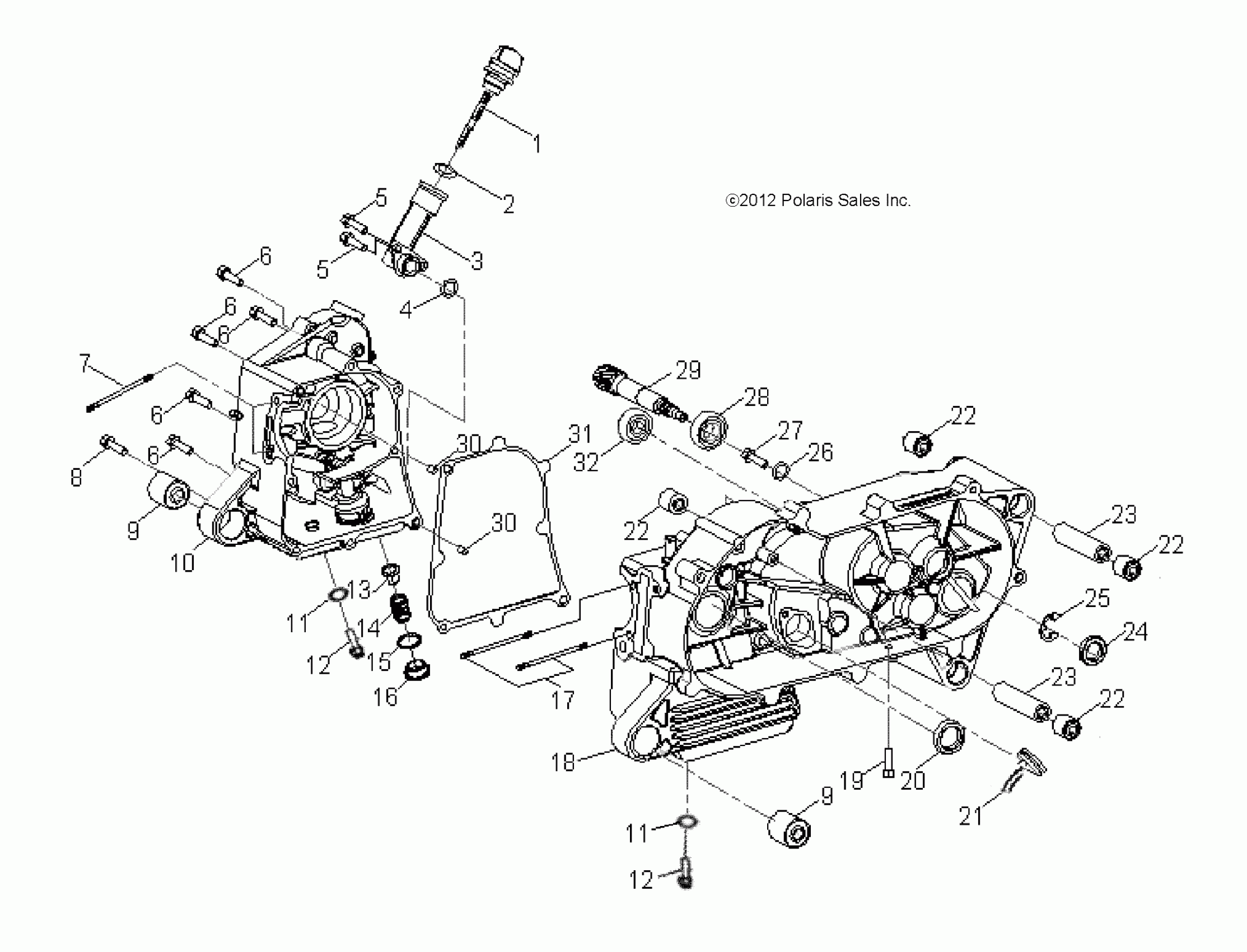

Polaris OUTLAW 50 - A14KA05AD/AF ENGINE, CRANKCASE - A14KA05AD/AF (49ATVCRANKCASE13OUT50) Diagram

#

Description
Price

-

ASM., ENGINE, 4 STROKE, W/O CARB

0454995

Unavailable

1

DIPSTICK, OIL

0453542

$23.99

2

O-RING

0453508

Unavailable

3

NECK, OIL FILLER

0453611

$51.99

4

O-RING

0453827

$1.99

5

BOLT

0452413

$3.99

5

BOLT

0452413

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

7

STUD

0453844

Unavailable

8

BOLT

0453614

$3.99

9

BUSHING, RUBBER

0450587

$12.79

9

BUSHING, RUBBER

0450587

$12.79

10

CRANKCASE, RH

0453615

Unavailable

11

WASHER, FLAT

0452133

$3.99

11

WASHER, FLAT

0452133

$3.99

12

BOLT

0452132

$4.79

12

BOLT

0452132

$4.79

13

SCREEN

0452369

$12.79

14

SPRING, SCREEN

0452370

$12.79

15

O-RING

0452371

$1.59

16

Cap, Oil Fill

0452368

$23.99

17

STUD

0453845

Unavailable

18

CRANKCASE, LH

0453846

Unavailable

19

BOLT

0454069

$3.19

20

SEAL, OIL

0453522

$27.99

21

BUSHING, VENT, RUBBER

0453847

$7.19

22

BUSHING, RUBBER

0451139

$7.19

22

BUSHING, RUBBER

0451139

$7.19

22

BUSHING, RUBBER

0451139

$7.19

22

BUSHING, RUBBER

0451139

$7.19

23

SPACER, COLLAR

0453617

$12.79

23

SPACER, COLLAR

0453617

$12.79

24

Seal, Oil

0450200

$11.99

25

CIRCLIP

0450198

$4.79

26

WASHER, FLAT

0453460

$4.79

27

BOLT

0450158

$5.59

28

BEARING

0450199

$31.99

29

SHAFT, DRIVE

0453456

$83.99

30

PIN, DOWEL

0452342

$3.99

30

PIN, DOWEL

0452342

$3.99

31

GASKET

0453419

Unavailable

32

BEARING, BALL

0450254

$23.99
