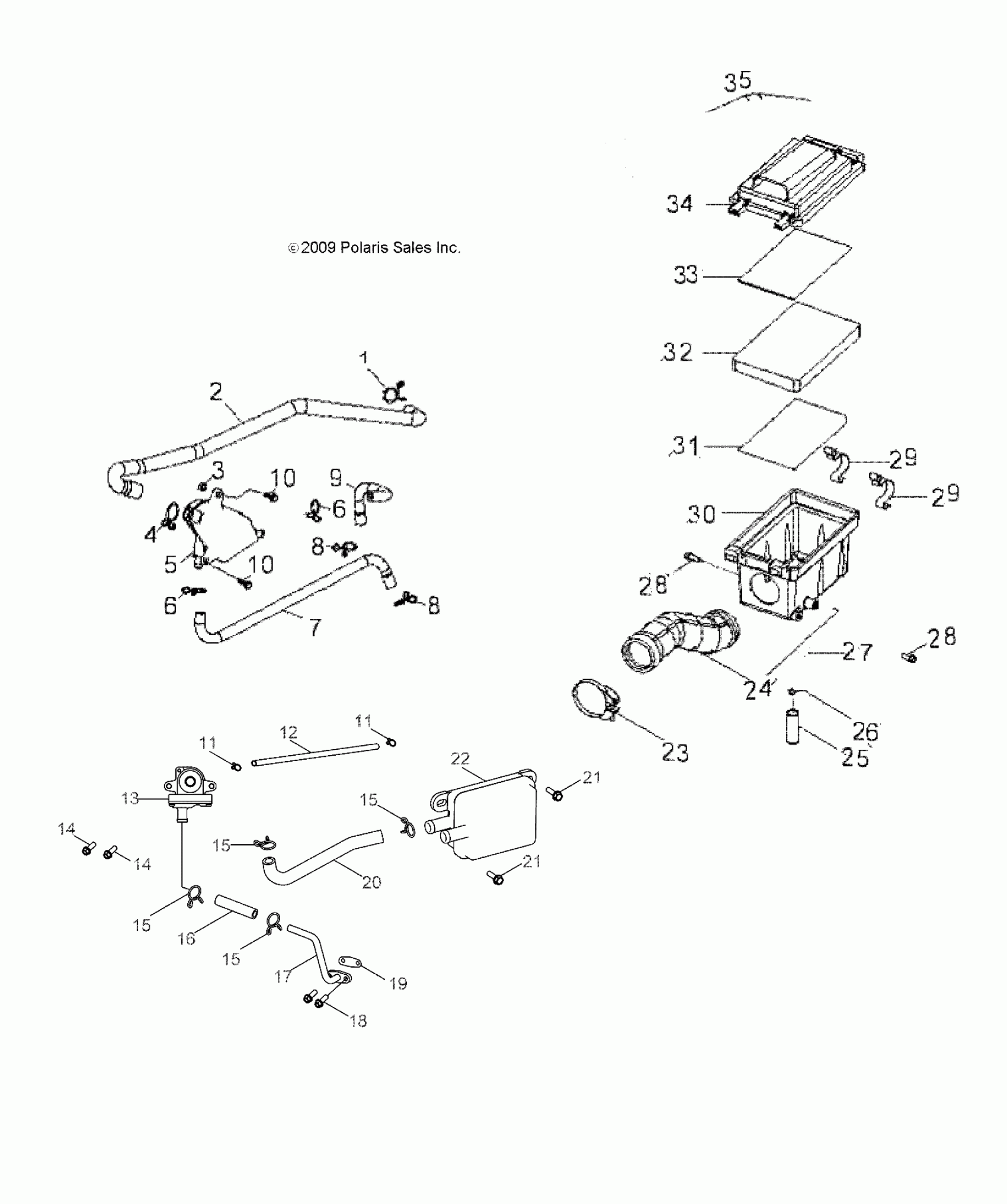

Polaris OUTLAW 50 - A14KA05AD/AF ENGINE, AIR INTAKE SYSTEM - A14KA05AD/AF (49ATVAIRBOX14OUT50) Diagram

#

Description
Price

1

Clip

0453932

$4.76

2

Tube, Breather, Ventilated

0453933

Unavailable

3

Nut, Flange

0450150

$1.19

4

Clip, Retaining

0453187

$4.76

5

Separator, Oil

0453184

$84.99

6

Clip

0453934

$3.97

6

Clip

0453934

$3.97

7

Tube, Oil

0453935

$11.32

8

Clip

0453936

$3.97

8

Clip

0453936

$3.97

9

Tube, Oil

0454000

$11.32

10

BOLT

0454011

$3.97

10

BOLT

0454011

$3.97

11

CLAMP

0453944

$3.97

11

CLAMP

0453944

$3.97

12

HOSE

0454927

$6.46

13

VALVE, INTAKE, DUAL

0454398

$179.99

14

BOLT, FRAME

0453517

$3.97

14

BOLT, FRAME

0453517

$3.97

15

Clip

0452795

$3.97

15

Clip

0452795

$3.97

15

Clip

0452795

$3.97

15

Clip

0452795

$3.97

16

HOSE

0454928

$12.13

17

TUBE, INTAKE, DUAL

0454938

$28.32

18

BOLT, HEX, FLANGE

0452413

$4.35

19

GASKET, AIR INJECTION

0452808

$2.83

20

HOSE, FORMED

0454941

$44.51

21

BOLT

0454785

$4.75

21

BOLT

0454785

$4.75

22

ASM., FILTER

0454375

$33.87

23

Clamp

0452562

$9.49

24

BOOT

0453903

$48.56

25

Hose, Drain

0453938

$5.65

26

Clip

0453932

$4.76

27

ASM., AIR BOX W/BOOT [INCL. 24]

0453943

$48.56

28

Bolt

0453939

$3.97

28

Bolt

0453939

$3.97

29

Clip

0453940

$7.14

29

Clip

0453940

$7.14

30

BOX, AIR CLEANER

----

Unavailable

31

Screen

0453905

$24.27

32

Filter, Air Box

0453906

$16.57

33

Gasket

0453907

$4.03

34

COVER

0453908

$40.46

35

Asm., Air Cleaner

----

Unavailable
