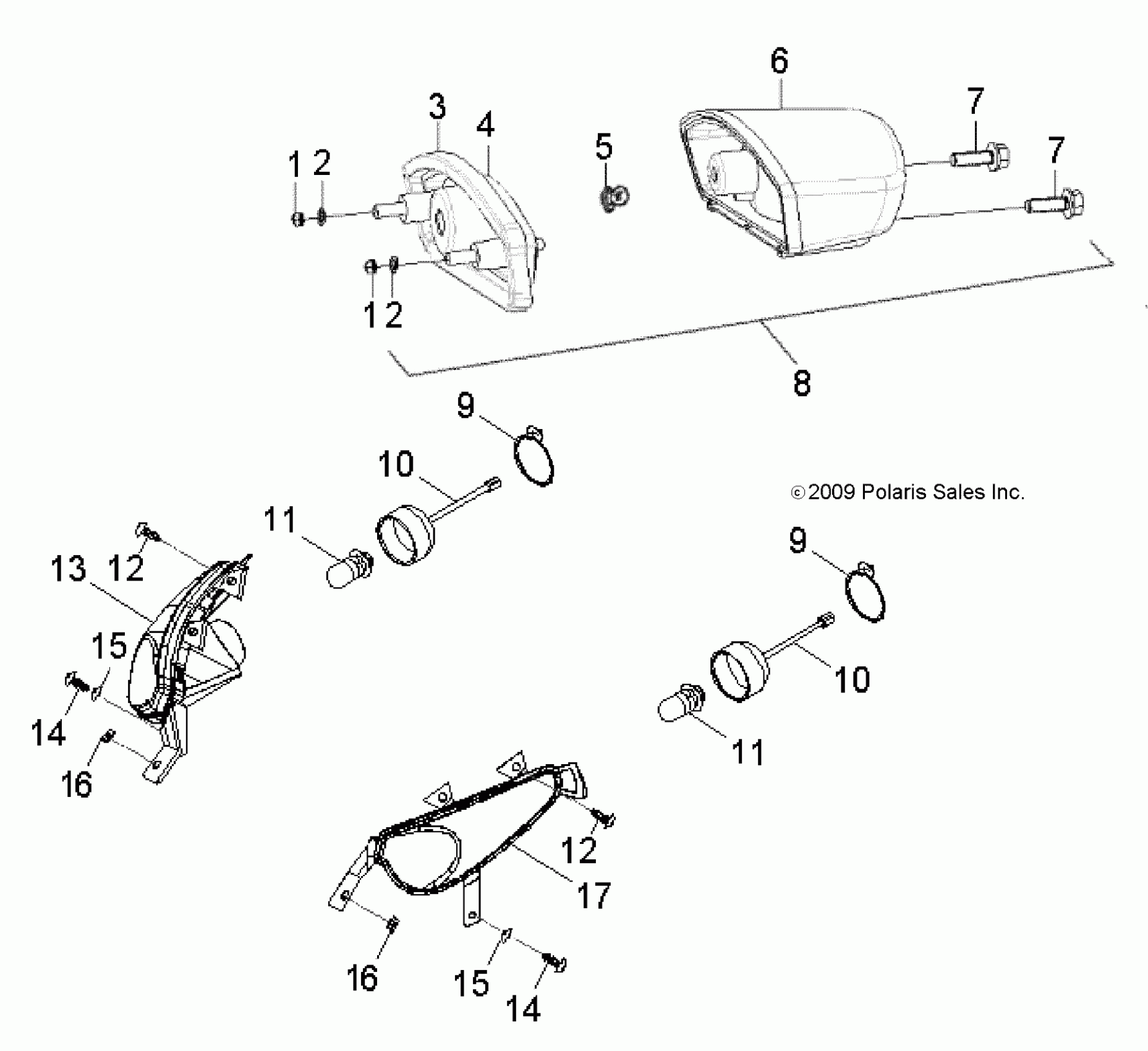

Polaris OUTLAW 50 - A14KA05AD/AF ELECTRICAL, HEADLIGHTand TAILLIGHT - A14KA05AD/AF (49ATVHEADLIGHT10OUT50) Diagram

#

Description
Price

1

NUT, FLANGE, HEX

0450880

$3.97

1

NUT, FLANGE, HEX

0450880

$3.97

2

WASHER, PLAIN

0450041

$4.76

2

WASHER, PLAIN

0450041

$4.76

3

GASKET, TAILLIGHT

0451799

$6.46

4

SOCKET, TAILLIGHT

0454714

$88.87

5

BULB, TAILLIGHT

0452830

$10.65

6

LENS, TAILLIGHT

0452995

$48.87

7

BOLT

0451801

$3.97

7

BOLT

0451801

$3.97

8

ASM., TAILLIGHT [INCL. 3-7]

0454722

$88.87

9

CLAMP, BOOT, BULB

0454716

$9.52

9

CLAMP, BOOT, BULB

0454716

$9.52

10

SOCKET, HEADLIGHT

0453892

$44.51

10

SOCKET, HEADLIGHT

0453892

$44.51

11

BULB, HEADLIGHT

0453570

$33.24

11

BULB, HEADLIGHT

0453570

$33.24

12

SCREW

0451803

$3.17

12

SCREW

0451803

$3.17

13

LENS, HEADLIGHT, RH

0453890

$64.99

14

SCREW, TAPPING

0451812

$3.17

14

SCREW, TAPPING

0451812

$3.17

15

WASHER

0450710

$1.19

15

WASHER

0450710

$1.19

16

NUT, U-PLATE

0450752

$2.38

16

NUT, U-PLATE

0450752

$2.38

17

LENS, HEADLIGHT, LH

0453889

$64.99
