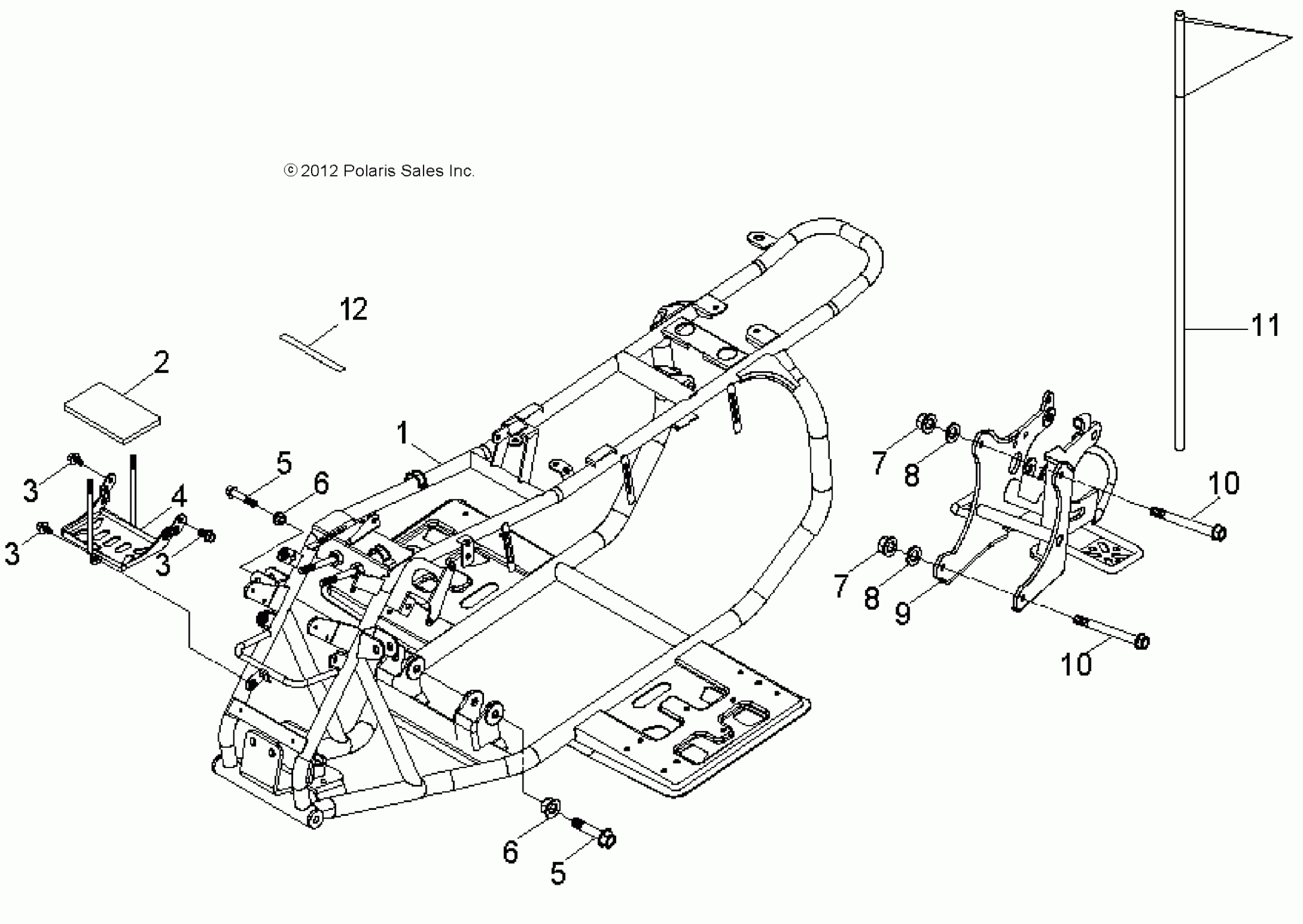

Polaris OUTLAW 50 - A14KA05AD/AF CHASSIS, FRAME and SWING ARM - A14KA05AD/AF (49ATVFRAME13OUT50) Diagram

#

Description
Price

1

FRAME, MAIN, BLACK

0454936-067

Unavailable

2

Rubber, Battery

0450346

$2.41

3

Bolt

0450701

$1.19

3

Bolt

0450701

$1.19

3

Bolt

0450701

$1.19

4

BRACKET, BATTERY

0453864

$44.51

5

BOLT

0453865

$7.14

5

BOLT

0453865

$7.14

6

NUT

0453866

$1.59

6

NUT

0453866

$1.59

7

NUT

0453867

$3.97

7

NUT

0453867

$3.97

8

Washer

0450192

$3.17

8

Washer

0450192

$3.17

9

SWING ARM, REAR, BLACK [AF]

0453408-067

$339.99

9

SWING ARM, REAR, SILVER [AD]

0453408-385

$339.99

10

BOLT

0453868

$9.52

10

BOLT

0453868

$9.52

11

FLAG, SAFETY

0454882

$81.17

12

TRIM, RUBBER

0454878

$32.37
