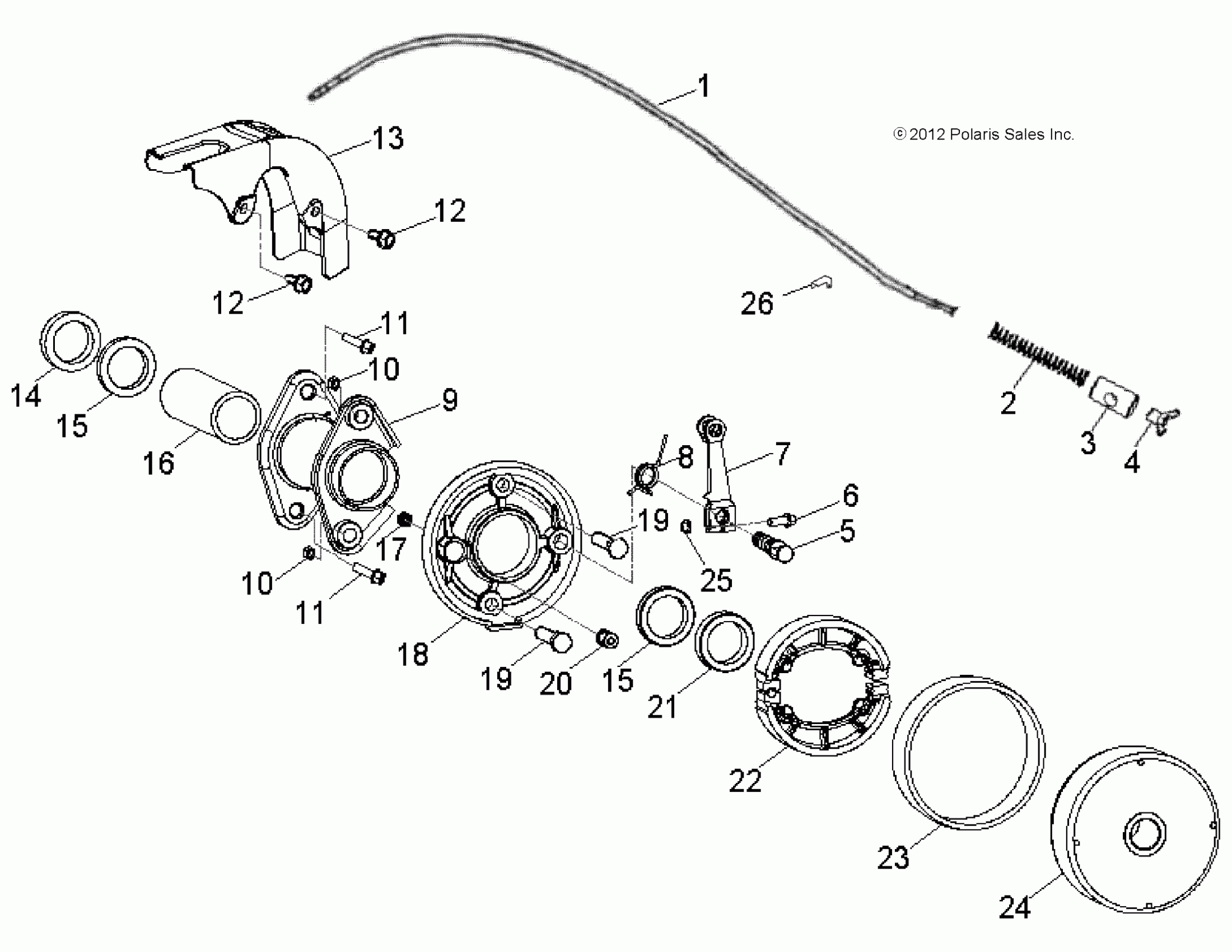

Polaris OUTLAW 50 - A14KA05AD/AF BRAKES, REAR - A14KA05AD/AF (49ATVBRAKERR13OUT50) Diagram

#

Description
Price

1

CABLE, BRAKE, REAR

0453878

$43.99

2

SPRING, CABLE, REAR

0450435

$4.79

3

SPACER, BRAKE CABLE, REAR

0453094

$3.99

4

NUT, ADJUST, BRAKE

0451079

$5.59

5

SHAFT, CAM, REAR

0450431

$31.99

6

BOLT

0451783

$3.99

7

ARM, BRAKE, REAR

0454753

$27.99

8

SPRING

0450453

$4.79

9

HOUSING, AXLE, REAR, SILVER [AD]

0453912-385

$107.99

9

HOUSING, AXLE, REAR, BLACK [AF]

0453912-067

$105.19

10

NUT

0453706

$4.79

10

NUT

0453706

$4.79

11

BOLT

0453707

$3.19

11

BOLT

0453707

$3.19

12

BOLT

0452215

$3.99

12

BOLT

0452215

$3.99

13

GUARD, CHAIN

0453880

Unavailable

14

Seal, Oil

0450430

$15.99

15

BEARING

0454032

$43.99

15

BEARING

0454032

$43.99

16

TUBE, SPACER

0453913

$23.99

17

NUT

0450881

$4.79

18

PLATE, BRAKE, REAR

0450440

$63.99

19

BOLT

0450452

$7.19

19

BOLT

0450452

$7.19

20

SHAFT, FIXED, BRAKE, REAR

0450854

$14.39

21

SEAL, OIL

0451781

$11.99

22

SHOE, BRAKE, REAR

0450434

Unavailable

23

Rubber, Protective

0450442

$9.59

24

DRUM, BRAKE, REAR

0450441

Unavailable

25

NUT

0450489

$1.49

26

RETAINER, CABLE, BRAKE

0454883

$35.99
