DRIVE TRAIN, TRANSMISSION - A11KA05AB/AD (49ATVTRANSMISSION07PRED50)

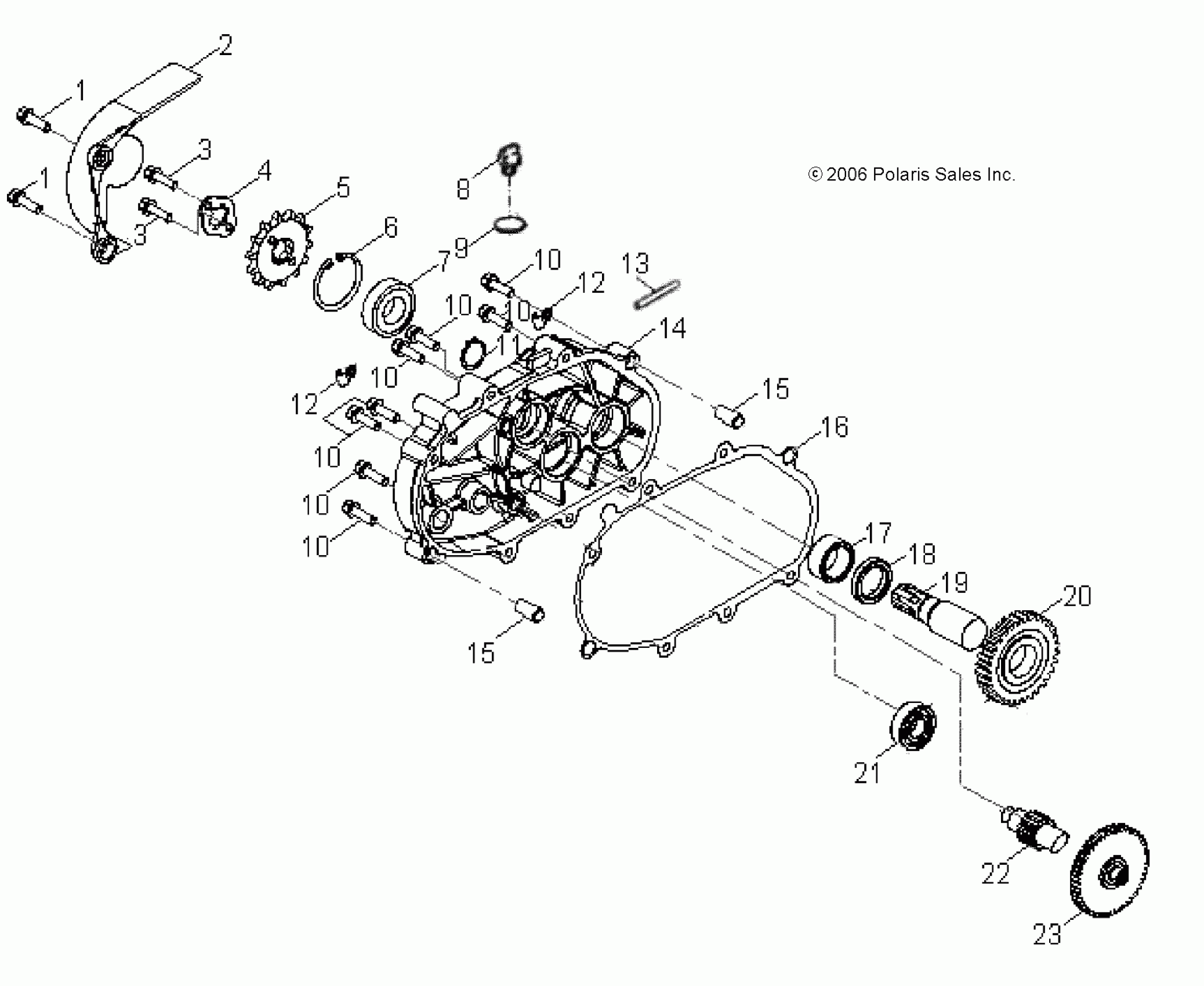

Polaris OUTLAW 50 - A11KA05AB/AD DRIVE TRAIN, TRANSMISSION - A11KA05AB/AD (49ATVTRANSMISSION07PRED50) Diagram
#
Description
Price
1
BOLT
0453648
Unavailable
1
BOLT
0453648
Unavailable
2
ASM., SPROCKET COVER
0453650
$47.99
3
BOLT
0453981
$3.19
3
BOLT
0453981
$3.19
4
BRACKET, SPROCKET
0453850
$6.39
5
SPROCKET, DRIVE
0453851
$39.99
6
CIRCLIP
0450162
$5.59
7
BEARING, BALL
0454248
$31.99
8
PLUG, OIL
0451813
$5.59
9
O-RING
0453506
$1.99
10
BOLT
0452331
$3.99
10
BOLT
0452331
$3.99
10
BOLT
0452331
$3.99
10
BOLT
0452331
$3.99
10
BOLT
0452331
$3.99
10
BOLT
0452331
$3.99
10
BOLT
0452331
$3.99
11
CLIP, RETAINER
0452339
$3.99
12
RETAINER, CYLINDER HEAD
0453585
$7.19
12
RETAINER, CYLINDER HEAD
0453585
$7.19
13
HOSE, VENT [170 MM]
0453515
Unavailable
14
Cover, Transmission
0454696
Unavailable
15
PIN, DOWEL
0450142
$3.99
15
PIN, DOWEL
0450142
$3.99
16
GASKET, TRANSMISSION COVER
0453646
Unavailable
17
BEARING
0450258
$63.99
18
SEAL, OIL
0450259
$6.39
19
SHAFT, DRIVE
0453643
$99.99
20
GEAR
0453854
$75.99
21
BEARING
0452156
$15.99
22
SHAFT, COUNTER
0453855
$99.99
23
GEAR, COUNTER
0453856
$91.99
