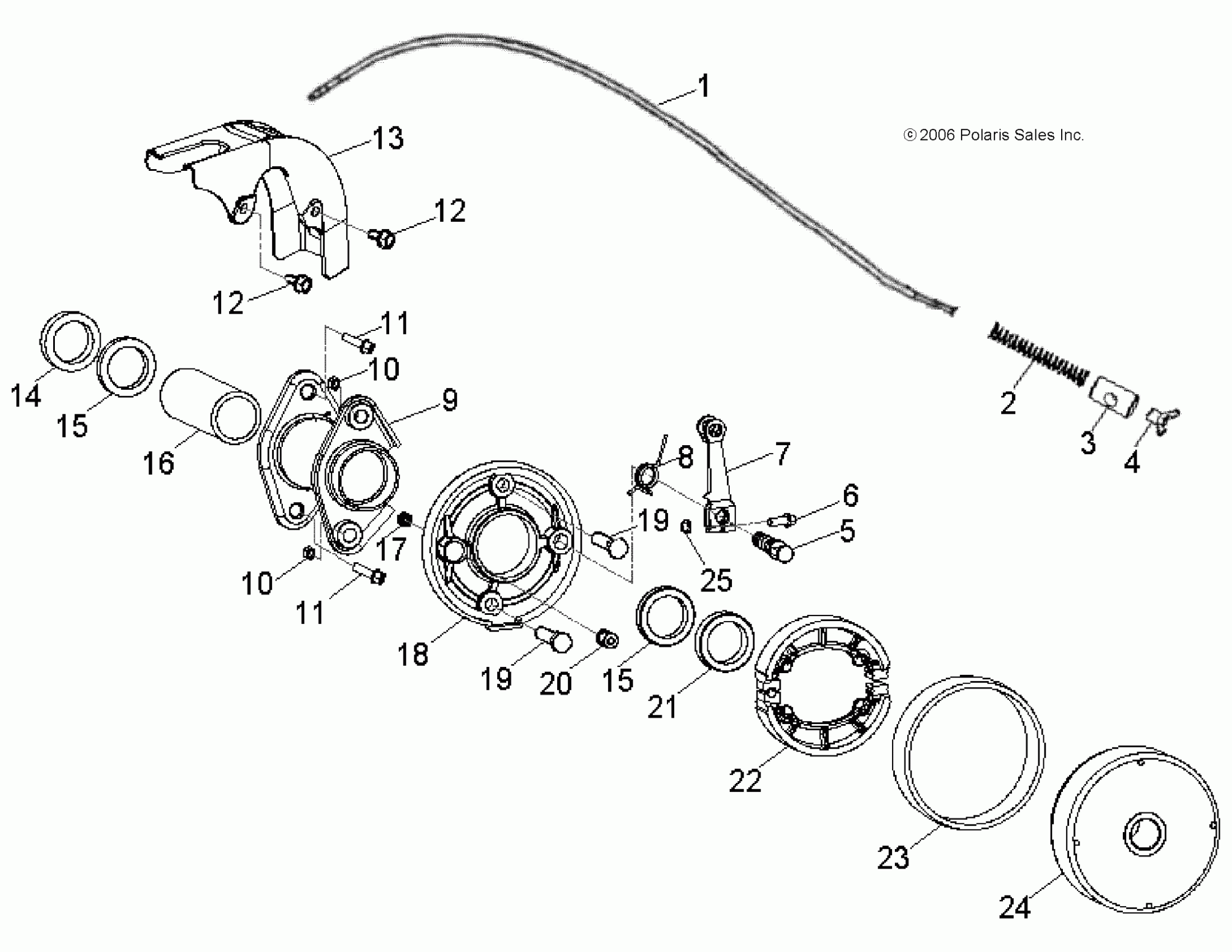

Polaris OUTLAW 50 - A11KA05AB/AD BRAKES, REAR - A11KA05AB/AD (49ATVBRAKERR10OUT50) Diagram

#

Description
Price

1

Cable, Brake, Rear

0454718

$44.51

2

SPRING, CABLE, REAR

0450435

$4.84

3

SPACER, BRAKE CABLE, REAR

0453094

$3.97

4

NUT, ADJUST, BRAKE

0451079

$5.56

5

SHAFT, CAM, REAR

0450431

$32.37

6

BOLT

0451783

$3.97

7

ARM, BRAKE, REAR

0454753

$34.99

8

SPRING

0450453

$4.84

9

HOUSING, AXLE, REAR, SILVER [AD]

0453912-385

$134.99

9

Housing, Axle, Rear, Black [AB]

0453912-067

$125.22

10

NUT

0453706

$4.76

10

NUT

0453706

$4.76

11

BOLT

0453707

$3.17

11

BOLT

0453707

$3.17

12

BOLT

0452215

$3.97

12

BOLT

0452215

$3.97

13

GUARD, CHAIN

0453880

Unavailable

14

Seal, Oil

0450430

$16.17

15

BEARING

0454032

$43.65

15

BEARING

0454032

$43.65

16

TUBE, SPACER

0453913

$34.99

17

NUT

0450881

$4.76

18

PLATE, BRAKE, REAR

0454707

$79.99

19

BOLT

0450452

$7.14

19

BOLT

0450452

$7.14

20

SHAFT, FIXED, BRAKE, REAR

0450854

$14.56

21

SEAL, OIL

0451781

$12.13

22

SHOE, BRAKE, REAR

0450434

$33.24

23

Rubber, Protective

0450442

$9.70

24

Drum, Brake, Rear

0454708

$128.24

25

NUT

0450489

$1.19
