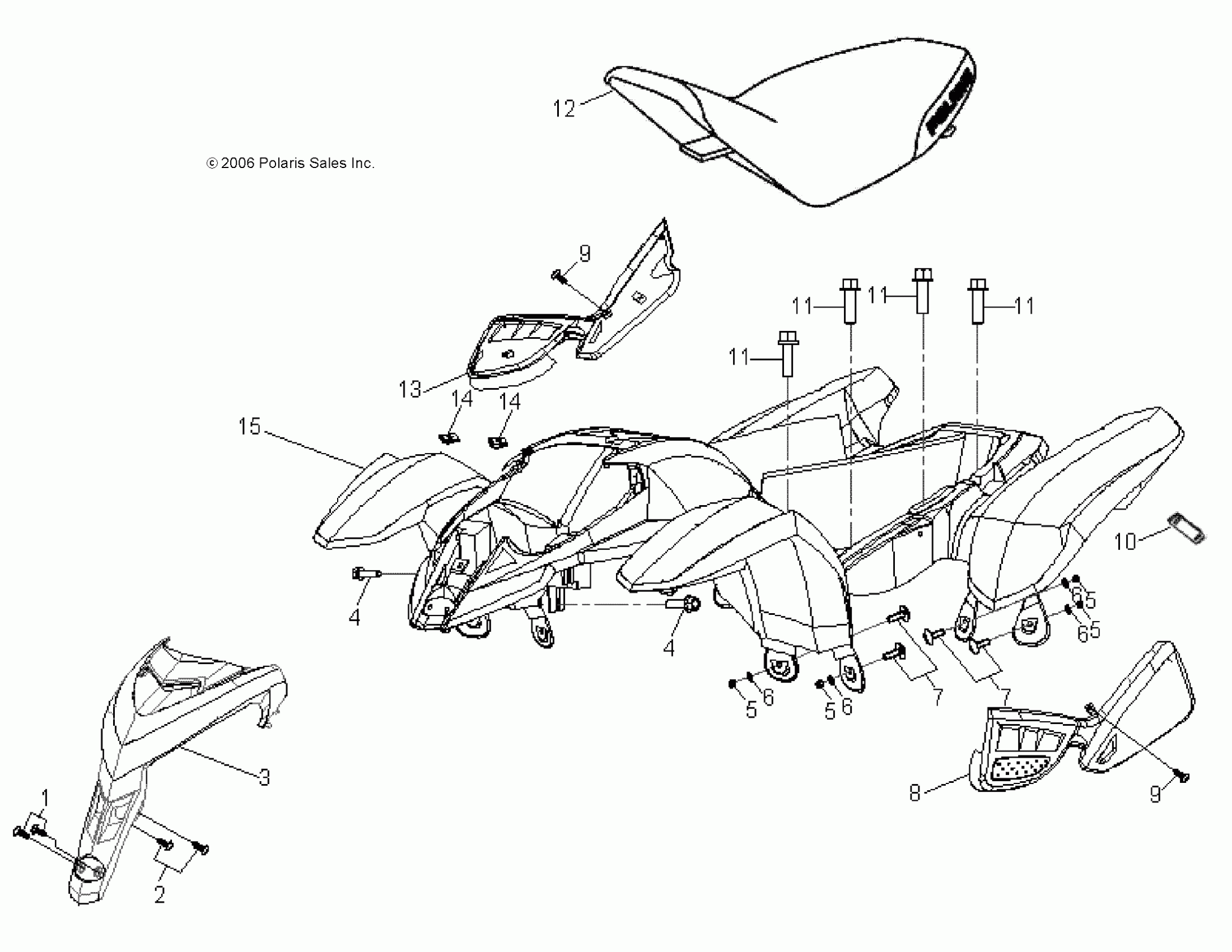

Polaris OUTLAW 50 - A11KA05AB/AD BODY, CAB and SEAT - A11KA05AB/AD (49ATVCAB09OUT50) Diagram

#

Description
Price

1

SCREW

0451812

$3.17

2

SCREW

0451766

$3.17

3

Cover, Front, Bright White [AD]

0451317-133

$129.51

3

Cover, Front, Indy Red [AB]

0451317-293

Unavailable

4

BOLT

0450824

$2.38

4

BOLT

0450824

$2.38

5

NUT

0450741

$3.17

5

NUT

0450741

$3.17

5

NUT

0450741

$3.17

5

NUT

0450741

$3.17

6

WASHER

0450710

$1.19

6

WASHER

0450710

$1.19

6

WASHER

0450710

$1.19

6

WASHER

0450710

$1.19

7

BOLT

0450622

$2.38

7

BOLT

0450622

$2.38

8

Panel, Side, LH, Bright White [AD]

0451325-133

$97.13

8

Panel, Side, LH, Indy Red [AB]

0451325-293

Unavailable

9

SCREW

0450676

$1.59

9

SCREW

0450676

$1.59

10

STRAP, BATTERY

0451140

$6.46

11

BOLT

0452215

$3.97

11

BOLT

0452215

$3.97

11

BOLT

0452215

$3.97

11

BOLT

0452215

$3.97

12

Seat, Black [AB]

0454880-070

$289.99

12

ASM., SEAT, WHITE [AD]

0451328-133

$289.99

13

Panel, Side, RH, Bright White [AD]

0451326-133

$97.13

13

Panel, Side, RH, Indy Red [AB]

0451326-293

$65.87

14

NUT, U-PLATE

0450752

$2.38

14

NUT, U-PLATE

0450752

$2.38

15

CAB, PINK [AD]

0454222-544

Unavailable

15

Cab, Bright White [AB]

0454222-133

$444.43
