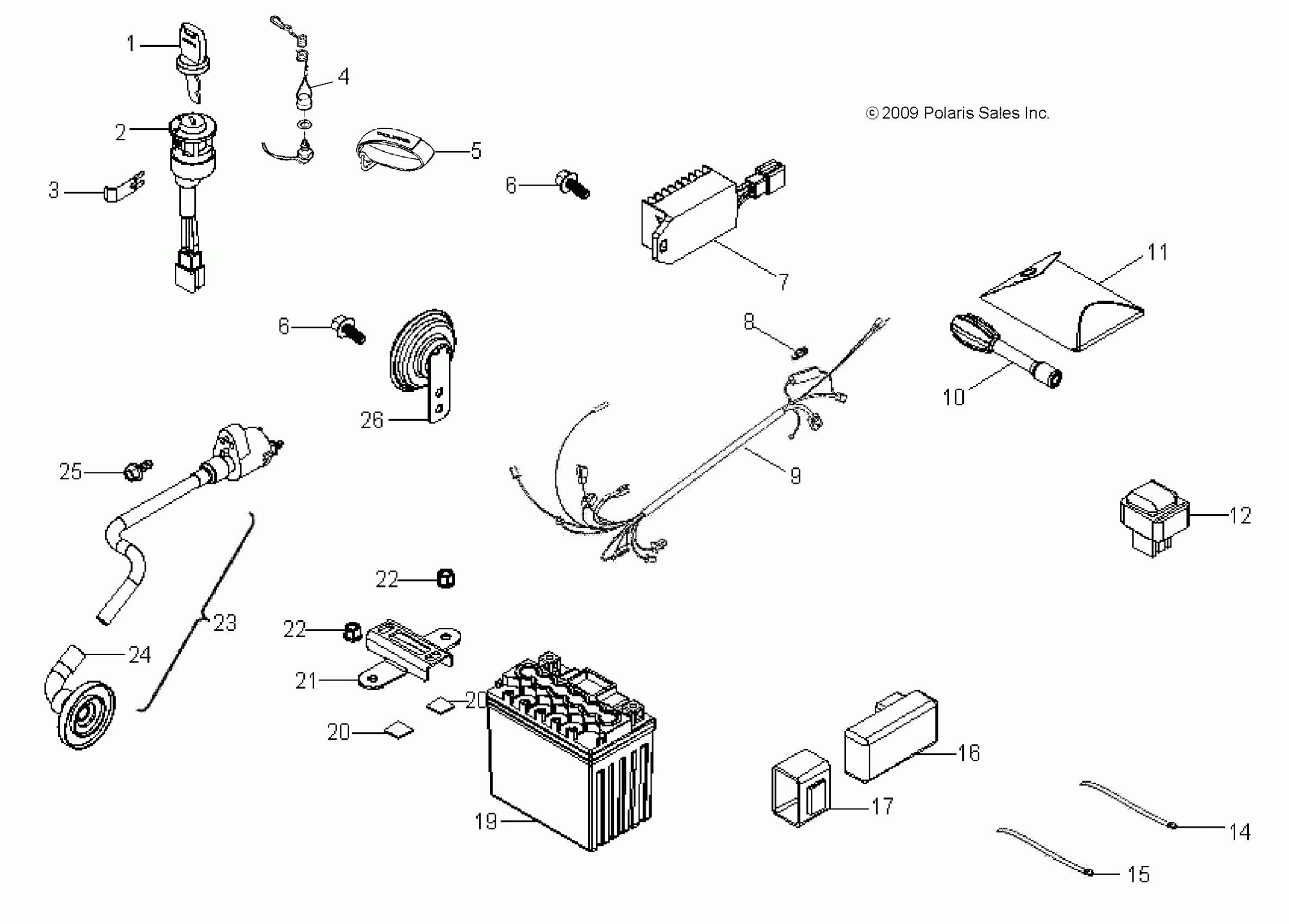

Polaris OUTLAW 50 - A10KA05AB/AD ELECTRICAL, SWITCHES, HARNESS and PARTS - A10KA05AB/AD (49ATVELECT10OUT50) Diagram

#

Description
Price

1

Key, Blank, RH

0455545

Unavailable

1

Key, Blank, LH

0455546

Unavailable

2

Asm., Switch, Main [Incl. 1-3]

0454724

$80.74

3

CLIP, MAIN SWITCH

0450549

Unavailable

4

SWITCH, SAFETY

0451693

$61.74

5

WRISTBAND

0453501

$22.06

6

Bolt

0450701

$1.19

6

Bolt

0450701

$1.19

7

Rectifier/Regulator

0454702

$123.49

8

FUSE

0450842

$9.49

9

Harness, Main

0454730

$304.98

10

GAUGE, TIRE

0450891

Unavailable

11

POUCH, TOOL

0454703

$24.99

12

ASM, STARTER RELAY

0453488

$75.99

14

STRAP

0450559

$2.41

15

STRAP

0450721

$3.22

16

ASM., CDI [INCL. 17]

0454723

$227.99

17

PAD, RUBBER

0453473

$24.27

19

BATTERY

4011181

$76.17

20

RETAINER, BATTERY, RUBBER

0453895

$3.22

20

RETAINER, BATTERY, RUBBER

0453895

$3.22

21

BRACKET, BATTERY

0453896

$14.56

22

Nut

0450150

$1.19

22

Nut

0450150

$1.19

23

ASM., IGNITION COIL [INCL. 24,25]

0453894

$84.99

24

CAP, SPARK PLUG

0453364

$36.41

25

BOLT

0452763

$3.17

26

HORN

0451695

$22.79
