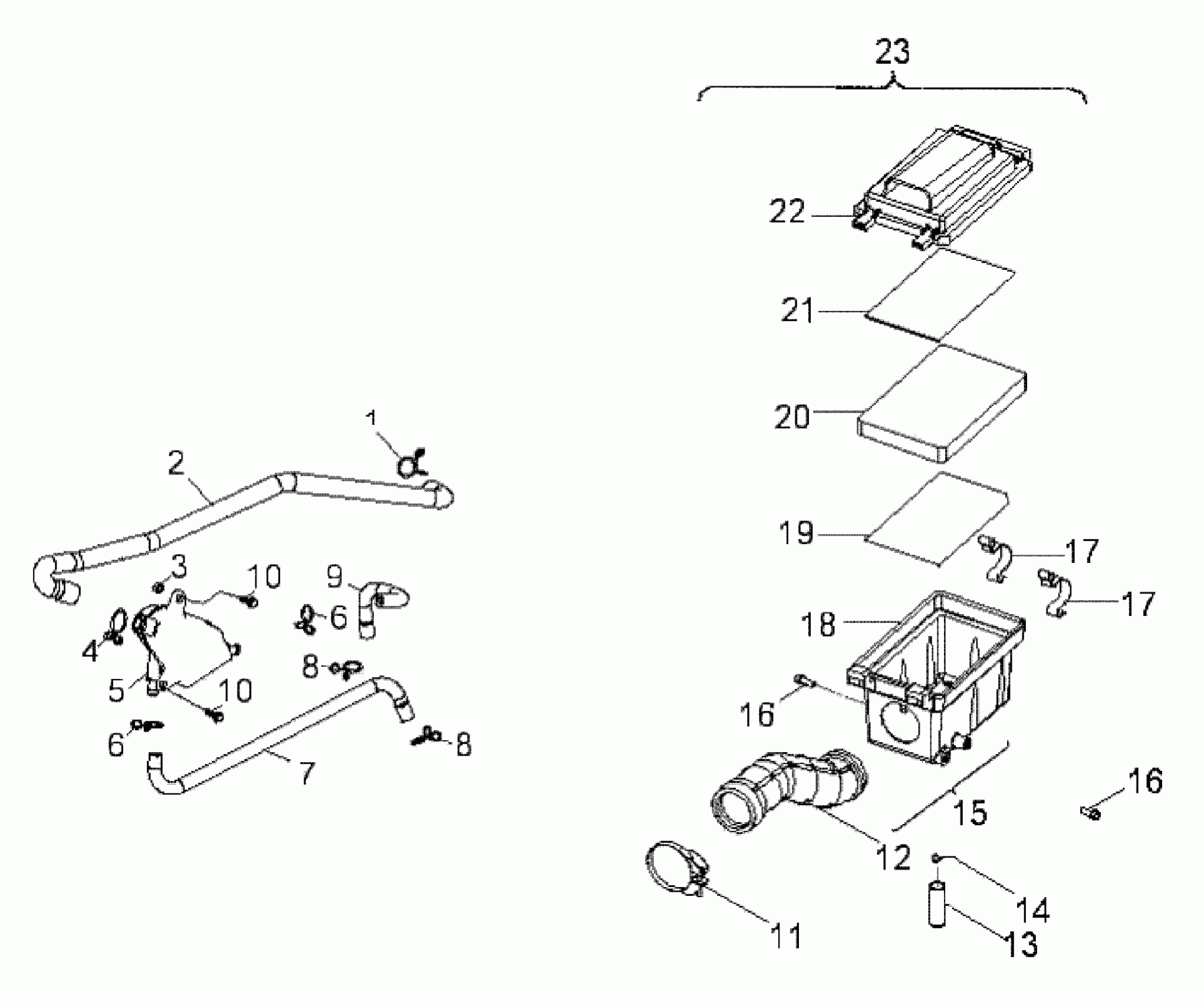

Polaris OUTLAW 50 - A08KA05AB/AD ENGINE, AIR INTAKE SYSTEM - A08KA05AB/AD (49ATVAIRBOX08OUT50) Diagram

#

Description
Price

1

Clip

0453932

$4.79

2

Tube, Breather, Ventilated

0453933

$31.99

3

Nut, Flange

0450150

$1.49

4

Clip, Retaining

0453187

Unavailable

5

Siparator, Oil

0453184

$63.99

6

Clip

0453934

$3.99

6

Clip

0453934

$3.99

7

Tube, Oil

0453935

$10.39

8

Clip

0453936

$3.99

8

Clip

0453936

$3.99

9

Tube, Oil

0454000

$10.39

10

Bolt

0450309

Unavailable

10

Bolt

0450309

Unavailable

11

Clamp

0452562

$7.99

12

BOOT

0453903

Unavailable

13

Hose, Drain

0453938

$4.79

14

Clip

0453932

$4.79

15

Asm., Air Box w/Boot

0453943

$43.99

16

Bolt

0453939

$3.99

16

Bolt

0453939

$3.99

17

Clip

0453940

$7.19

17

Clip

0453940

$7.19

18

Box, Air

0453904

Unavailable

19

Screen

0453905

$19.99

20

Filter, Air Box

0453906

$15.19

21

Gasket

0453907

$3.99

22

Cover, Air Cleaner

0453908

$35.99

23

Asm., Air Box [Incl. 11-20]

0453406

Unavailable
