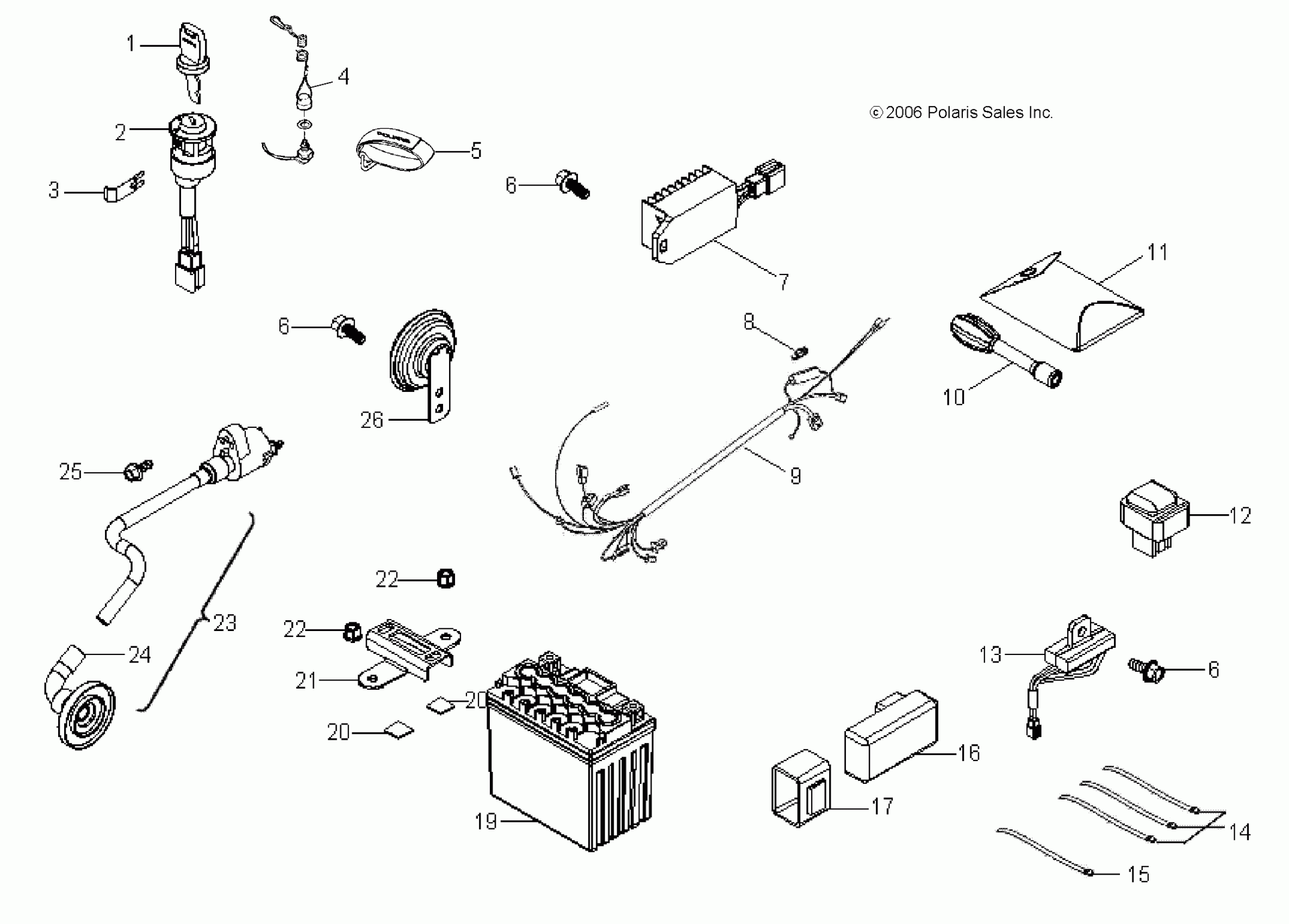

Polaris OUTLAW 50 - A08KA05AB/AD ELECTRICAL PARTS - A08KA05AB/AD (49ATVELECT07PRED50) Diagram

#

Description
Price

1

Key, Black, RH

0453143

$13.59

1

Key, Black, LH

0453372

$27.99

2

ASM., SWITCH, MAIN

0453487

Unavailable

3

CLIP, MAIN SWITCH

0450549

Unavailable

4

SWITCH, SAFETY

0451693

Unavailable

5

WRISTBAND

0453501

$22.23

6

Bolt

0450701

$1.49

6

Bolt

0450701

$1.49

6

Bolt

0450701

$1.49

7

RECTIFIER/REGULATOR

0454003

$99.99

8

FUSE

0450842

Unavailable

9

Harness, Main

0454049

$344.99

10

GAUGE, TIRE

0450891

Unavailable

11

Pouch, Tool

0453813

Unavailable

12

ASM, STARTER RELAY

0453488

$59.99

13

Asm., Resistor

0453315

$59.99

14

STRAP

0450559

$2.39

15

STRAP

0450721

$3.19

16

Asm., CDI [Incl. 17]

0453893

Unavailable

17

PAD, RUBBER

0453473

$23.99

19

BATTERY

4011181

$63.99

20

RETAINER, BATTERY, RUBBER

0453895

$3.19

20

RETAINER, BATTERY, RUBBER

0453895

$3.19

21

BRACKET, BATTERY

0453896

$14.39

22

Nut

0450150

$1.49

22

Nut

0450150

$1.49

23

ASM., IGNITION COIL [INCL. 24,25]

0453894

$63.99

24

CAP, SPARK PLUG

0453364

$35.99

25

Bolt

0453927

Unavailable

26

HORN

0451695

$18.23
