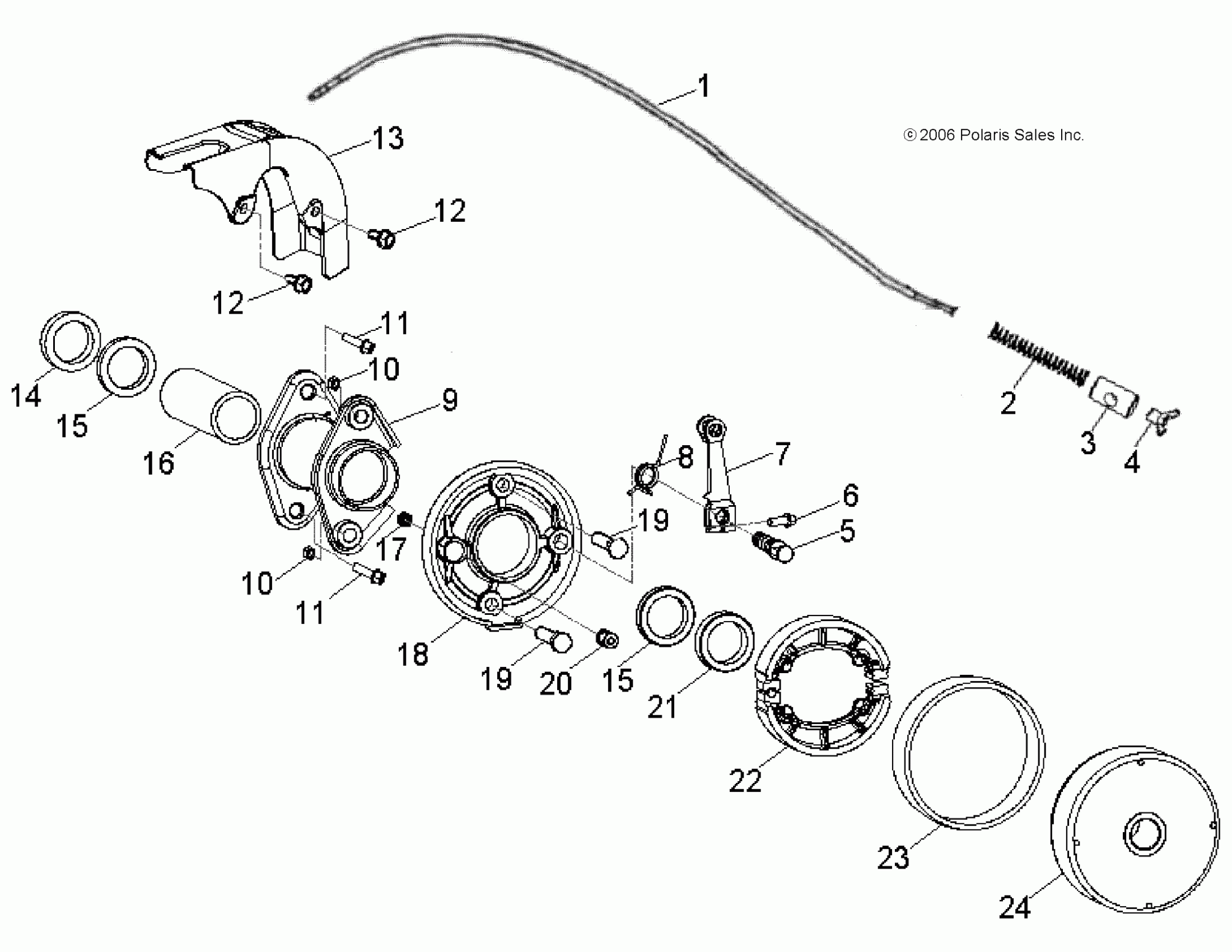

Polaris OUTLAW 50 - A08KA05AB/AD BRAKES, REAR - A08KA05AB/AD (49ATVBRAKERR07PRED50) Diagram

#

Description
Price

1

CABLE, BRAKE, REAR

0453878

$44.51

2

SPRING, CABLE, REAR

0450435

$4.84

3

NUT, ADJUST, BRAKE

0451079

$5.56

4

SPACER, BRAKE CABLE, REAR

0453094

$3.97

5

SHAFT, CAM, REAR

0450431

$32.37

6

Bolt

0453915

$3.97

7

Arm, Brake, Rear

0451782

$14.99

8

SPRING

0450453

$4.84

9

Housing, Axle, Rear

0453912

$83.99

10

NUT

0453706

$4.76

10

NUT

0453706

$4.76

11

BOLT

0453707

$3.17

11

BOLT

0453707

$3.17

12

BOLT

0452215

$3.97

12

BOLT

0452215

$3.97

13

GUARD, CHAIN

0453880

Unavailable

14

Seal, Oil

0450430

$16.17

15

BEARING

0454032

$43.65

15

BEARING

0454032

$43.65

16

TUBE, SPACER

0453913

$34.99

17

NUT

0450881

$4.76

18

PLATE, BRAKE, REAR

0450440

$79.99

19

BOLT

0450452

$7.14

19

BOLT

0450452

$7.14

20

SHAFT, FIXED, BRAKE, REAR

0450854

$14.56

21

SEAL, OIL

0451781

$12.13

22

SHOE, BRAKE, REAR

0450434

$33.24

23

Rubber, Protective

0450442

$9.70

24

DRUM, BRAKE, REAR

0450441

$128.24
