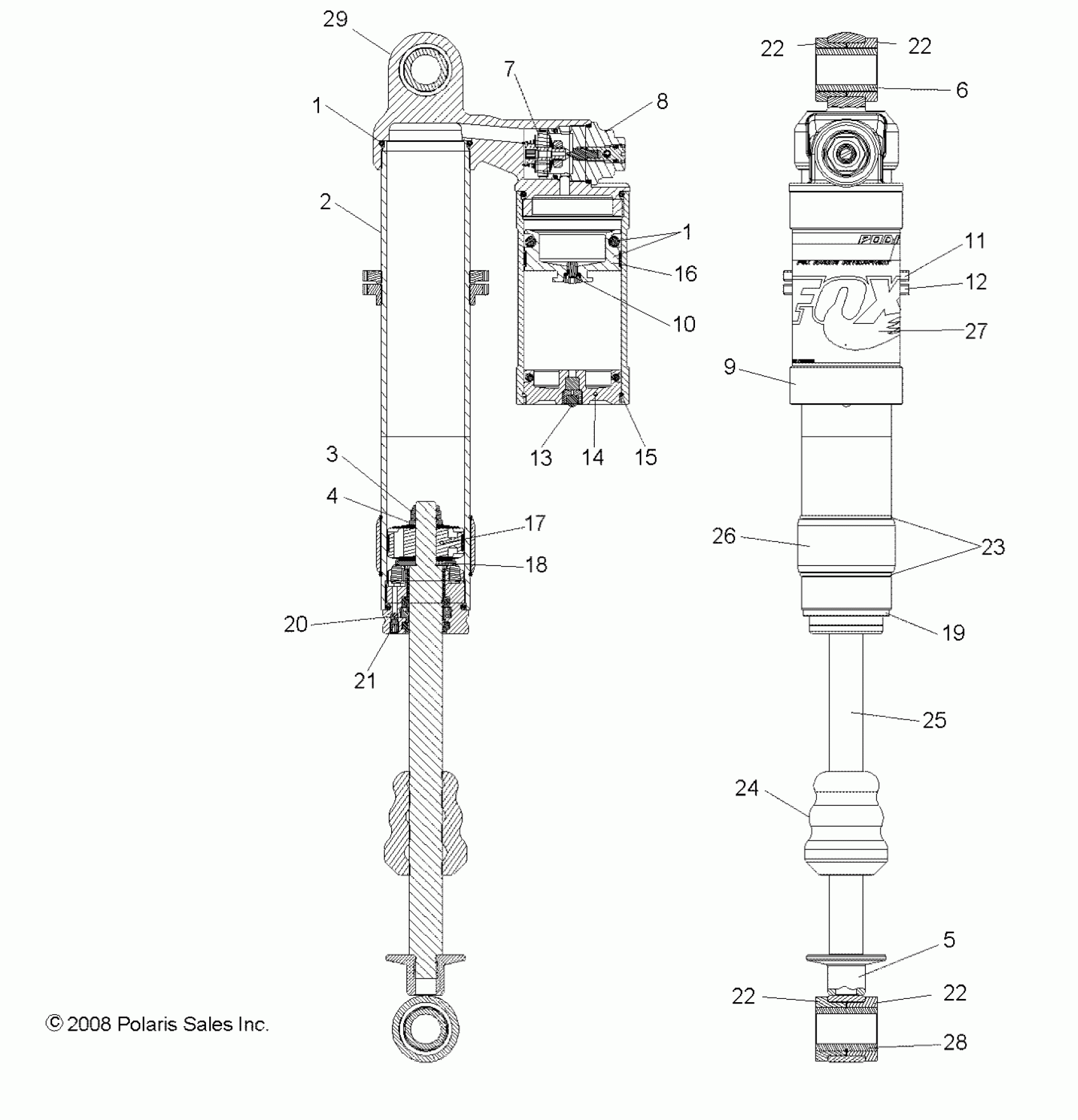

Polaris OUTLAW 450 S - A10GJ45AA SUSPENSION, FRONT SHOCK - A10GJ45AA (49ATVSHOCKFRT7043475) Diagram

#

Description
Price

-

Shock, Front [Incl. All]

7043475

$384.99

1

Kit, Rebuild

1500742

$84.43

1

Kit, Rebuild

1500742

$84.43

2

Body

1500817

$131.99

3

Nut, Lock

1500016

$12.79

4

Plate, Backup

1500015

$6.76

5

Eyelet

1500013

$76.89

6

Sleeve

1500747

$32.37

7

PISTON, CD CONC. ADJ.

1500627

Unavailable

8

Cartridge, CD Single Adj.

1500617

Unavailable

9

Reservoir

1500633

$82.39

10

SCREW W/O-RING

1500161

Unavailable

11

Ring, Preload

1500792

$21.83

12

Ring, Preload

1500791

$21.83

13

Ball

1500722

$3.19

14

Asm., Cap, End

1500765

$109.99

15

RING, RETAINING

1500236

$9.59

16

Piston, Floating

1500743

$37.59

17

Piston

1500010

Unavailable

18

PLATE, TOP-OUT

1500819

Unavailable

19

Bearing Asm.

1500810

$144.99

20

Ball

1500071

$6.76

21

Screw, Socket Set

1500070

$6.39

22

BUSHING

1500103

$8.08

22

BUSHING

1500103

$8.08

22

BUSHING

1500103

$8.08

22

BUSHING

1500103

$8.08

23

Ring, Wire

1500607

$3.99

24

Bumper

1500628

$35.99

25

Shaft

1500818

$87.99

26

Guide, Spring

1500585

Unavailable

27

Decal, "FOX"

1500790

$13.89

28

SLEEVE

1500497

$32.37

29

Asm., Body Cap

1500756

$193.63
