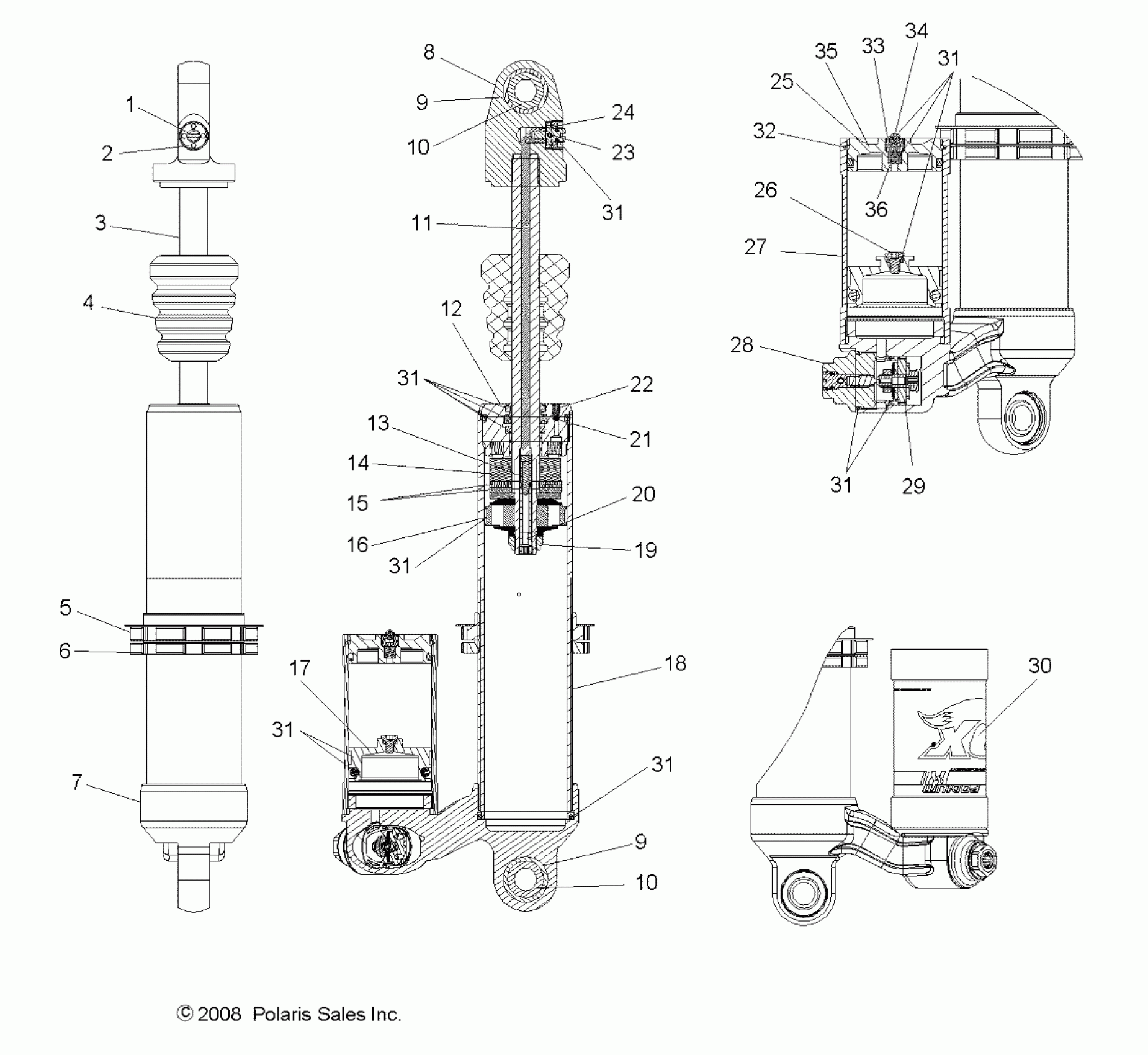

Polaris OUTLAW 450 MXR - A09GJ45AA SUSPENSION, REAR SHOCK - A09GJ45AA (49ATVSHOCKRR7043473) Diagram

#

Description
Price

-

Shock, Rear [Incl. All]

7043473

$549.99

1

Knob

1500641

$40.79

2

Retainer, RD Adjust

1500640

$26.23

3

Shaft

1500802

$175.99

4

Bumper

1500800

Unavailable

5

Ring, Preload

1500575

$28.15

6

Ring, Preload

1500576

$22.23

7

Cap, Body

1500745

$128.99

8

Eyelet

1500746

Unavailable

9

Ring, Snap

1500523

$6.19

9

Ring, Snap

1500523

$6.19

10

BEARING, SPHERICAL

1500524

$43.99

10

BEARING, SPHERICAL

1500524

$43.99

11

Rod, Metering

1500803

$23.79

12

Asm., Bearing

1500578

$75.40

13

Needle

1500804

$69.83

14

Spacer

1500806

$14.29

15

Spacer

1500807

$14.75

16

Piston

1500615

$53.59

17

Piston, Floating

1500743

$37.59

18

Body

TBA

Unavailable

19

Nut, Lock

1500472

$23.99

20

Jet

1500534

$37.11

21

Ball

1500071

$6.76

22

Screw, Socket Set

1500070

$6.39

23

Ball

1500638

$1.83

24

Screw, Adjust

1500642

$22.99

25

Cap, End

1500744

$45.59

26

SCREW W/O-RING

1500161

Unavailable

27

Reservoir

1500633

$82.39

28

Cartridge, CD Single Adjust

1500617

Unavailable

29

Piston, Concentric Adjuster

1500616

$21.79

30

Decal, "FOX"

1500805

$95.24

31

Kit, Rebuild

1500742

$84.43

31

Kit, Rebuild

1500742

$84.43

31

Kit, Rebuild

1500742

$84.43

31

Kit, Rebuild

1500742

$84.43

31

Kit, Rebuild

1500742

$84.43

31

Kit, Rebuild

1500742

$84.43

31

Kit, Rebuild

1500742

$84.43

32

RING, RETAINING

1500236

$9.59

33

Screw, Set

1500723

$27.99

34

Valve

1500206

$24.19

35

ASM., END CAP

1500765

$109.99

36

PELLET

1500724

$12.79
