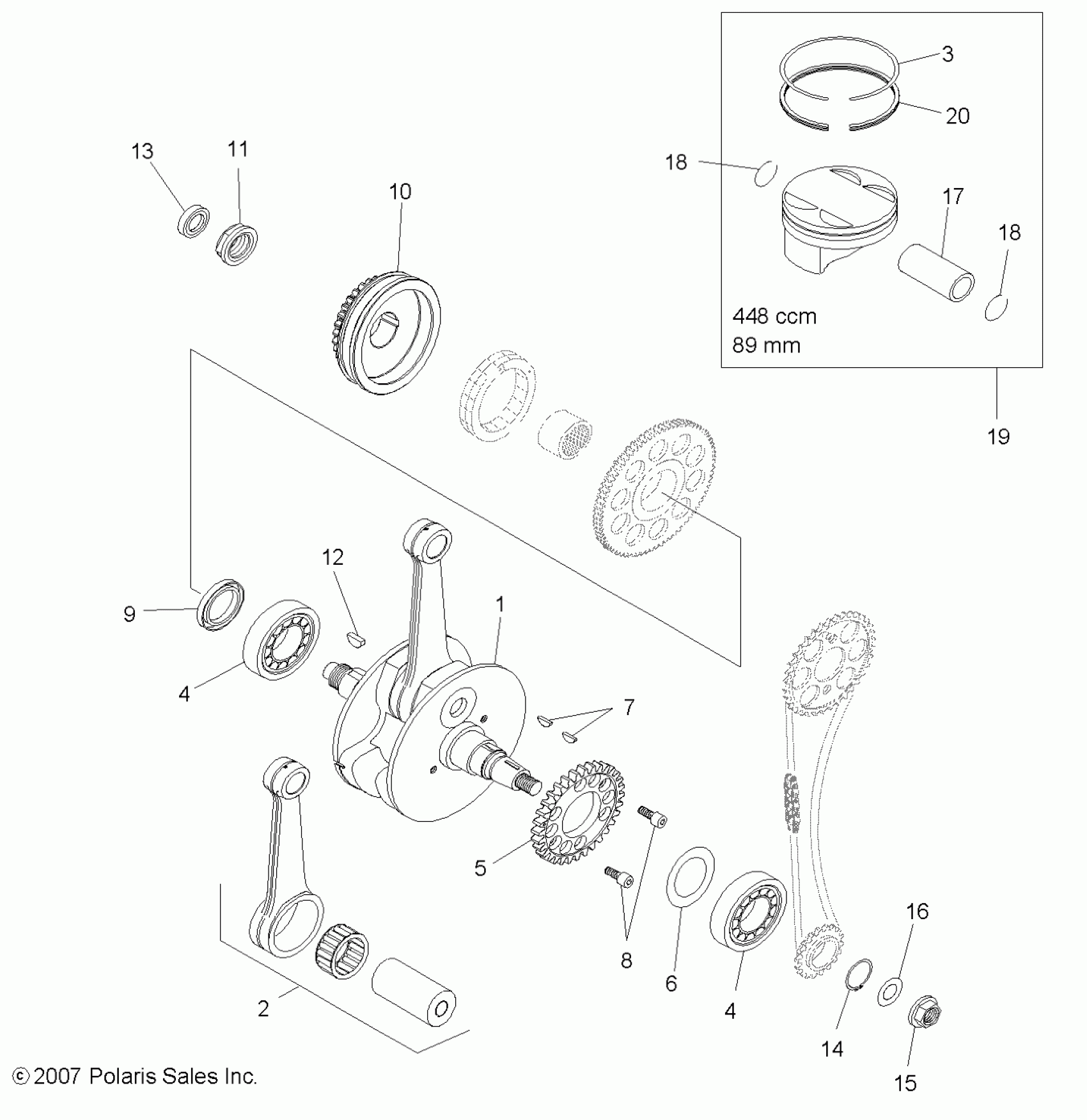

Polaris OUTLAW 450 MXR - A09GJ45AA ENGINE, CRANKSHAFT and PISTON - A09GJ45AA (49ATVCRANKSHAFT08OUT450S) Diagram

#

Description
Price

1

Asm., Crankshaft

1203516

Unavailable

2

Kit, Connecting Rod

2203406

Unavailable

3

Ring, Piston

3021982

Unavailable

4

Bearing, Cylinder Roll

3514569

Unavailable

4

Bearing, Cylinder Roll

3514569

Unavailable

5

Gear, Drive Balance Shaft

6230359

Unavailable

6

Shim, Axial Clearance, .10 mm

7556392

Unavailable

6

Shim, Axial Clearance, .15mm

7556393

Unavailable

6

Shim, Axial Clearance, .30mm

7556394

Unavailable

7

Key, Woodruff

7710593

$4.76

8

Screw

7518721

Unavailable

9

Seal, Shaft

5413245

Unavailable

10

Gear, Primary, 31T

6230361

$199.99

11

Nut

7547378

$29.99

12

Key, Woodruff

7710595

$5.99

13

Seal, Shaft

5413244

Unavailable

14

Ring, Snap

7710597

Unavailable

15

Nut

7547381

$27.78

16

Washer, Spring

7556413

Unavailable

17

Pin, Piston

3021872

Unavailable

18

Circlip

3021875

Unavailable

18

Circlip

3021875

Unavailable

19

Kit, Piston Rings, 89 mm

2203621

Unavailable

20

Ring, Piston, 89 mm

3021981

Unavailable
